connection with 3-speaker connection grid
1
Using three ceiling speakers instead of four*
If your room is too small for four ceiling speakers, connect three.

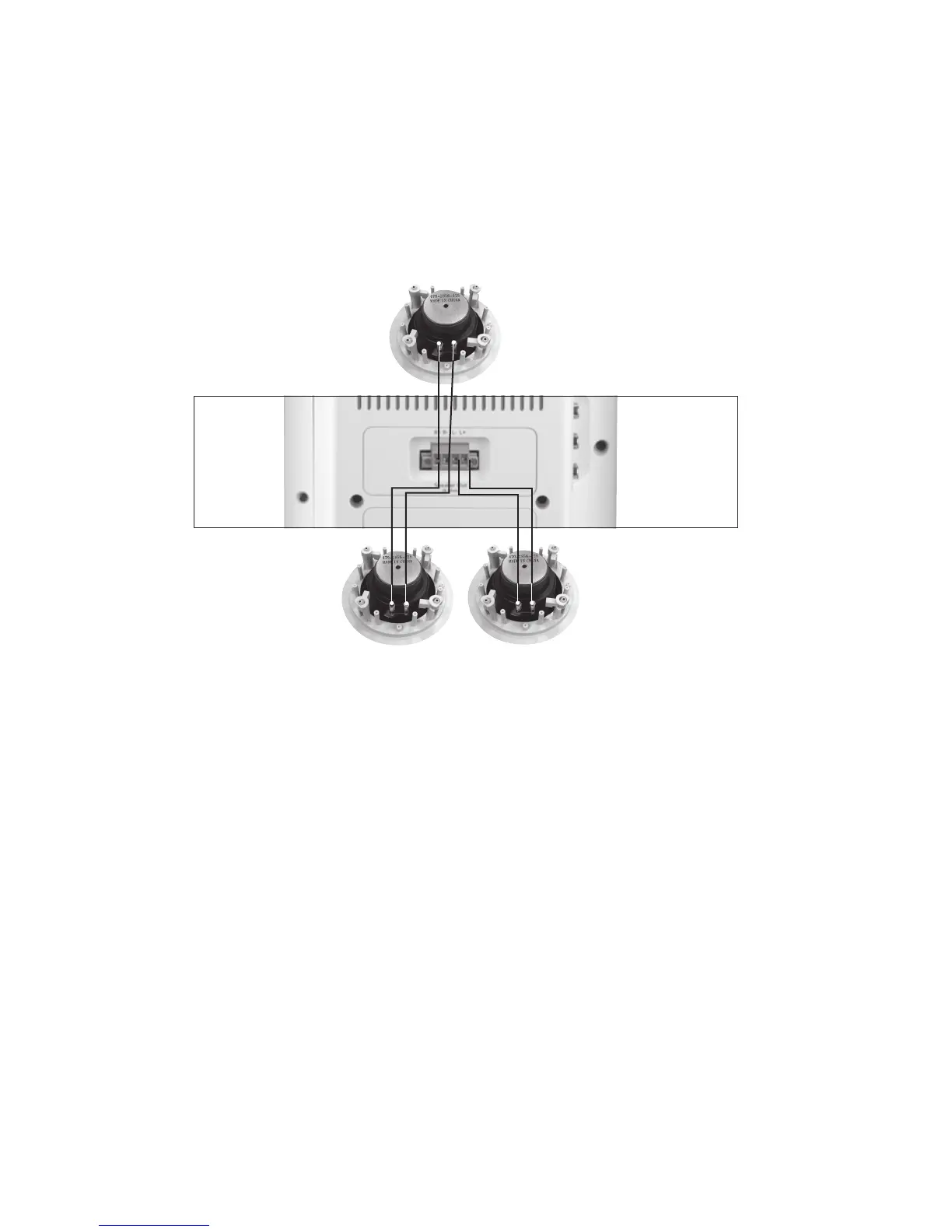

Connect speaker wires to the terminals as shown below for best power and sound distribution
ceiling speaker input terminals
2
Appendix B: Special ceiling speaker connections
Speakers 1 and 2 should be in the larger listening area.
*Note: Applies to 8 ohm ceiling speakers only. Use of more than two IR speakers is not possible.
