JUNO FrontRow User Manual

Installing the ITR-01 Channel Expansion Module
General Safety Precautions
• DisconnectallelectronicsfromtheJunoTowerduringinstallationof
this module
• Donotinstallorusethemodulenearwaterorheatsources
• Use only accessories specified by FrontRow
• Referinstallationandservicetoqualifiedpersonnel
• Observe all applicable building, electrical, and fire codes when
installing any electrical equipment
ESD Warning
The Juno Tower and/or expansion modules can be
damaged by electrostatic discharge (ESD). When handling,
care must be taken so that the devices are not damaged.
Damage due to inappropriate handling is not covered by the warranty.
The following precautions must be taken when installing the
expansion modules:
• Useaconductivewriststrapattachedtoagoodearthground.
• AlwaysdisconnectthepowertotheJunofromthepoweroutlet.
• Alwaysdischargeyourselfbytouchingthegroundedbaremetal
surface or approved anti-static mat before picking up an
ESD-sensitive electronic component.
• Useananti-staticmattocoveryourworksurface.
You will need the following items to install this module:
• #1Phillipsscrewdriver
• A FrontRow Microphone and FrontRow Desktop software for
programming microphones
Installation
1. Unplug the Juno Tower from the power outlet
2. Lay the Juno Tower down on a flat surface with the back of the
Tower facing up. Remove the 8 screws that attach the back panel to
the case back and remove the back panel (See Image 1 & 2)
3. Locate the area on the upper PCB where the module will be
installed (See Image 3)

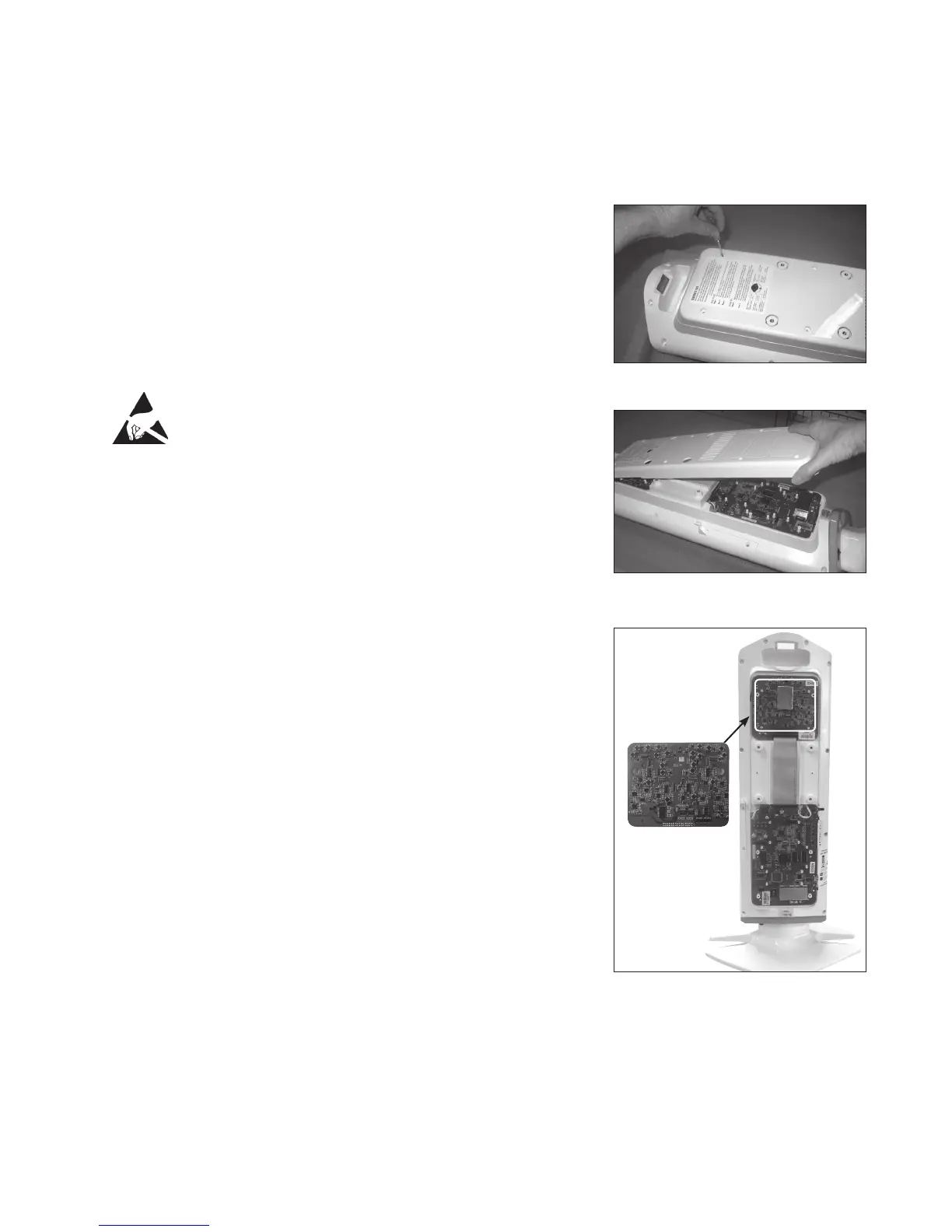

Image 1
Image 2
31
