JUNTTAN PM 20L - Track Width Adjustment

JUNTTAN Routine service section
124
7.12.2 TRACK WIDTH ADJUSTMENT

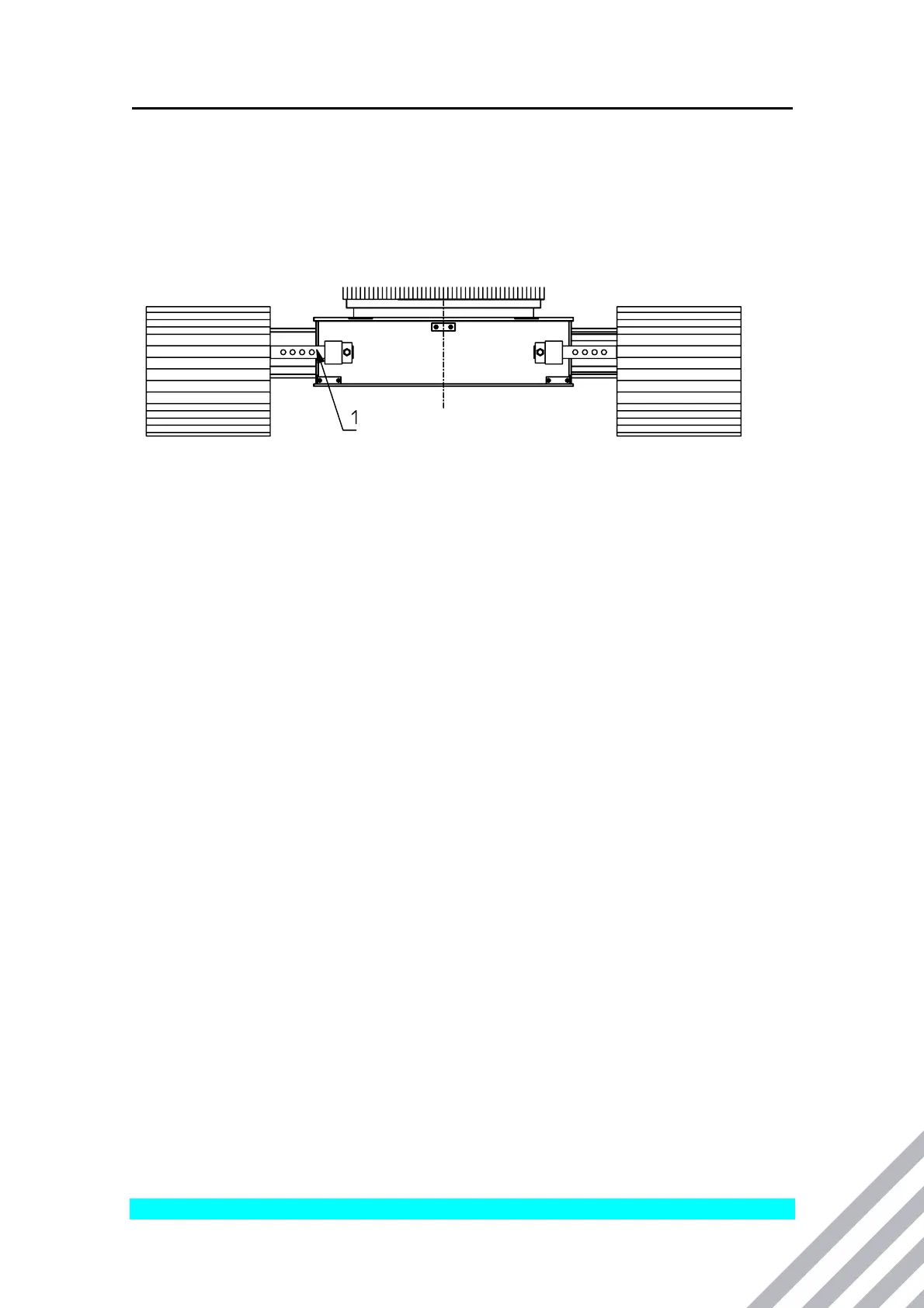

In the transport position the crawler frames are against the middle boy of the
undercarriage. In working positions the crawler frames are pushed out. On each side
there is a limit bar (1) with a stop.
