5.3 CONTROLS ON THE RIGHT CONSOLE
The black arrows in the symbols and beside the control indicate the same direction of
the functions. The central rest position is neutral for all levers. The controls on the right
console are illustrated Figure 10.
All the control levers have eight active positions in the shape of a star. The positions
forward - backward - left - right engage only one function while the diagonal positions
engage two functions if two functions are assigned to a lever. There are also push
buttons at the top of the lever.

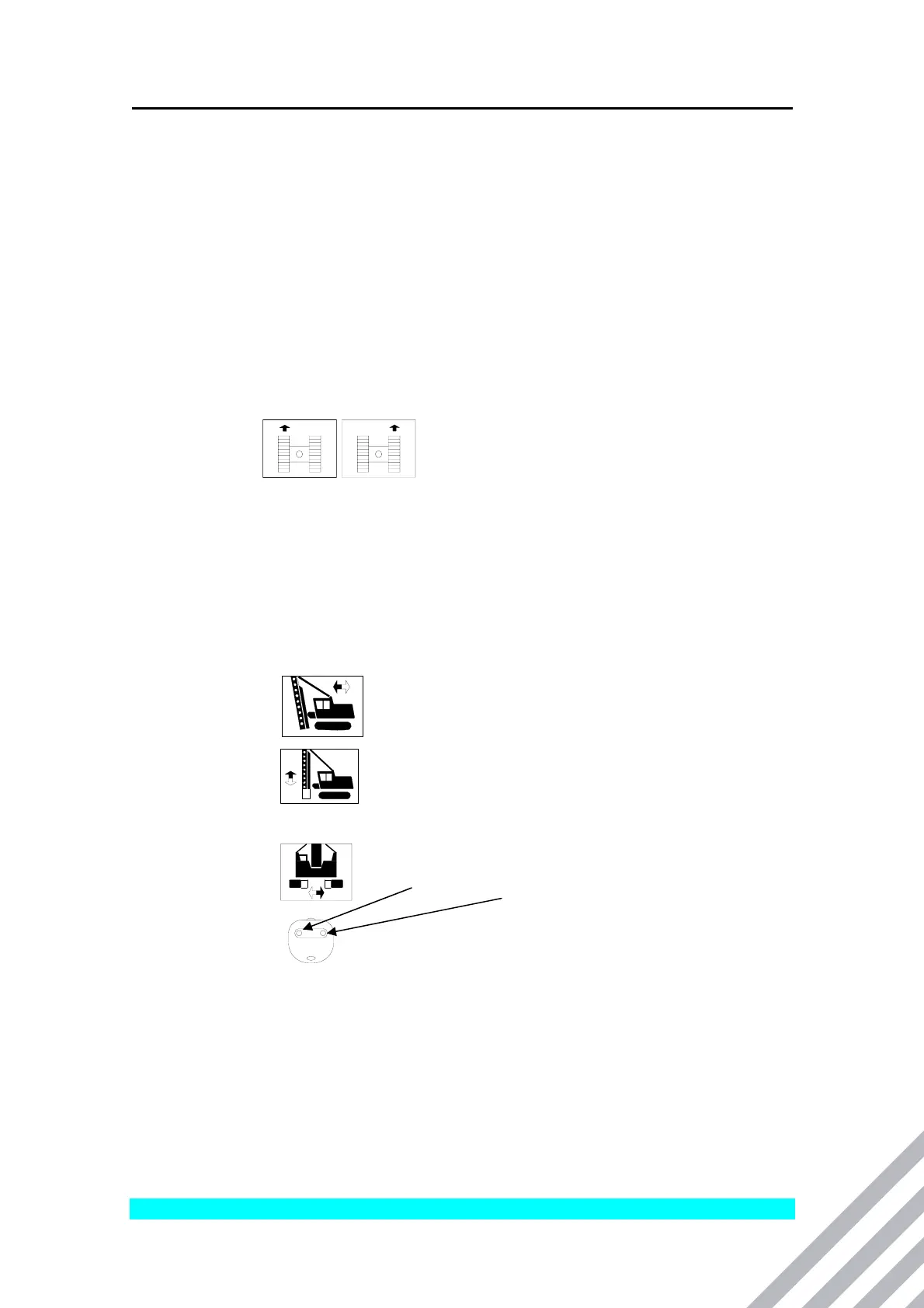

TRAVEL LEVER
Forward Both tracks forward
Backward Both tracks backward
Diagonal Combinations
The functions described here refer to the normal travel position when the drive motors
are at the rear of the machine.
FORWARD INCLINATION AND LEADER FOOT LEVER
Forward Leader is inclined forward
Backward Leader is inclined backward
Left Leader foot up
Right Leader foot down
Diagonal Combinations
Top switch Track extension hydraulic cylinders
in/neutral/out
