JUNTTAN PM 20L - Signal Lights in the Upper Console; Controls on the Rear Console

JUNTTAN Controls section
56

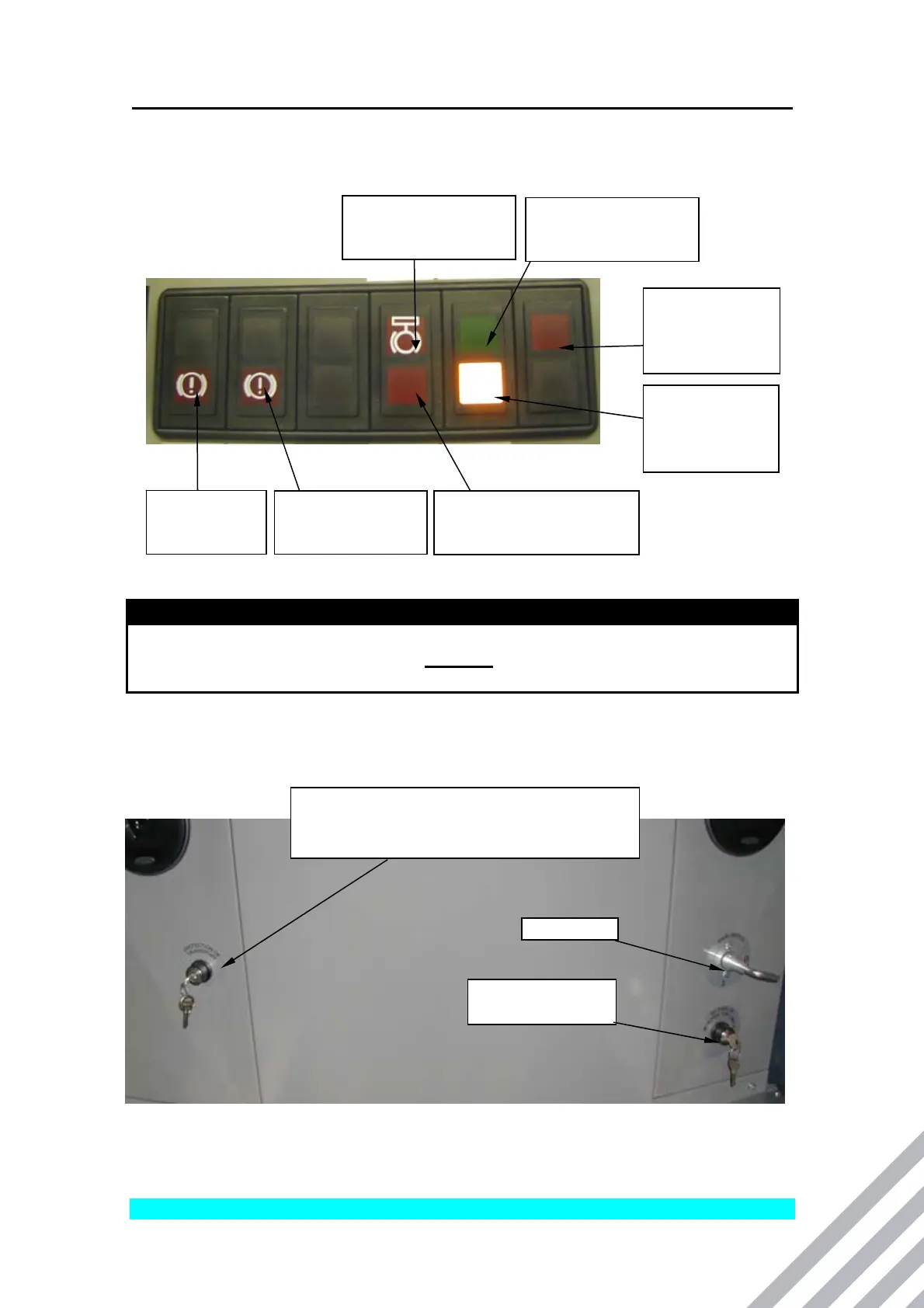

5.6 SIGNAL LIGHTS IN THE UPPER CONSOLE
n WARNING
If one or all signal lights are on and function(s) is in neutral position, then there is
something wrong in the system. You must not continue operating the machine until
you find reason for signal and repair it.
5.7 CONTROLS ON THE REAR CONSOLE
By-pass switch for
winches top limits
Main switch
Transport switch:
Only travel lever and leader lift device
controls are activated when the key is locked
Signal light: ON
when pile winch
brake is open
Signal light: ON
when hammer winch
brake is open
Signal light: ON when the
by-pass switch of the
winches to
p
limits is use
d
Signal light: ON
when the piling
mode switch is in
p
osition 1 or 2
Signal light: ON
when the leader
is against the
leader lift device.
Signal light: ON when
the forward inclination
c
y
linder is release
d
Signal light: ON when
uppercarriage swing
lock is use
d
