JUNTTAN PM 20L - Ground Pressure

JUNTTAN Specifications section
36
PM 20L 1461
0
350000
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
225
230
235
240
245
250
255
260
265
270
275
280
285
290
295
300
305
310
315
320
325
330
335
340
345
350
355
350 kPa
PM 20L 1461
0
337000
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
225
230
235
240
245
250
255
260
265
270
275
280
285
290
295
300
305
310
315
320
325
330
335
340
345
350
355
337 kPa

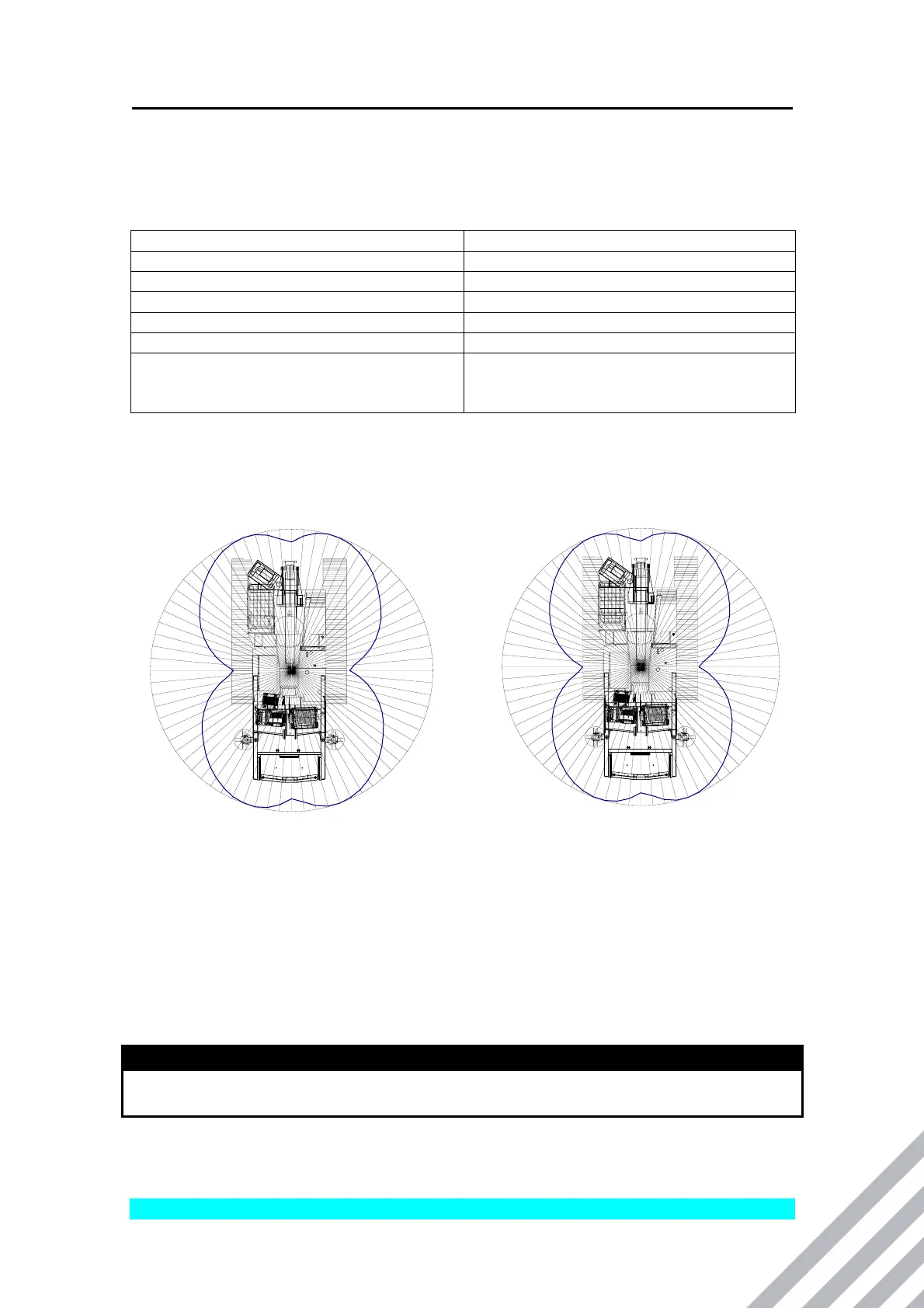

3.15 GROUND PRESSURE
Machine: PM 20L
Serial number: 1461
Hammer: HHK 3AL Hammer: HHK 4AL
Hammer weight: 6 400 kg Hammer weight: 7 700 kg
Pile: 12 m Pile: 12 m
Pile weight: 6 000 kg Pile weight: 4 000 kg
Horizontal slide: 300 mm out Horizontal slide: 300 mm out
Forward inclination: 9.46º Forward inclination: 9.46º
Maximum ground pressure 350 kPa when
upper carriage is turned 15º against under
carriage.
Maximum ground pressure 337 kPa when
upper carriage is turned 160º against under
carriage.
n NOTICE
Depending on leader foot position, the maximum ground pressure can be bigger
when using values from "leader foot on ground"-capacity tables.
