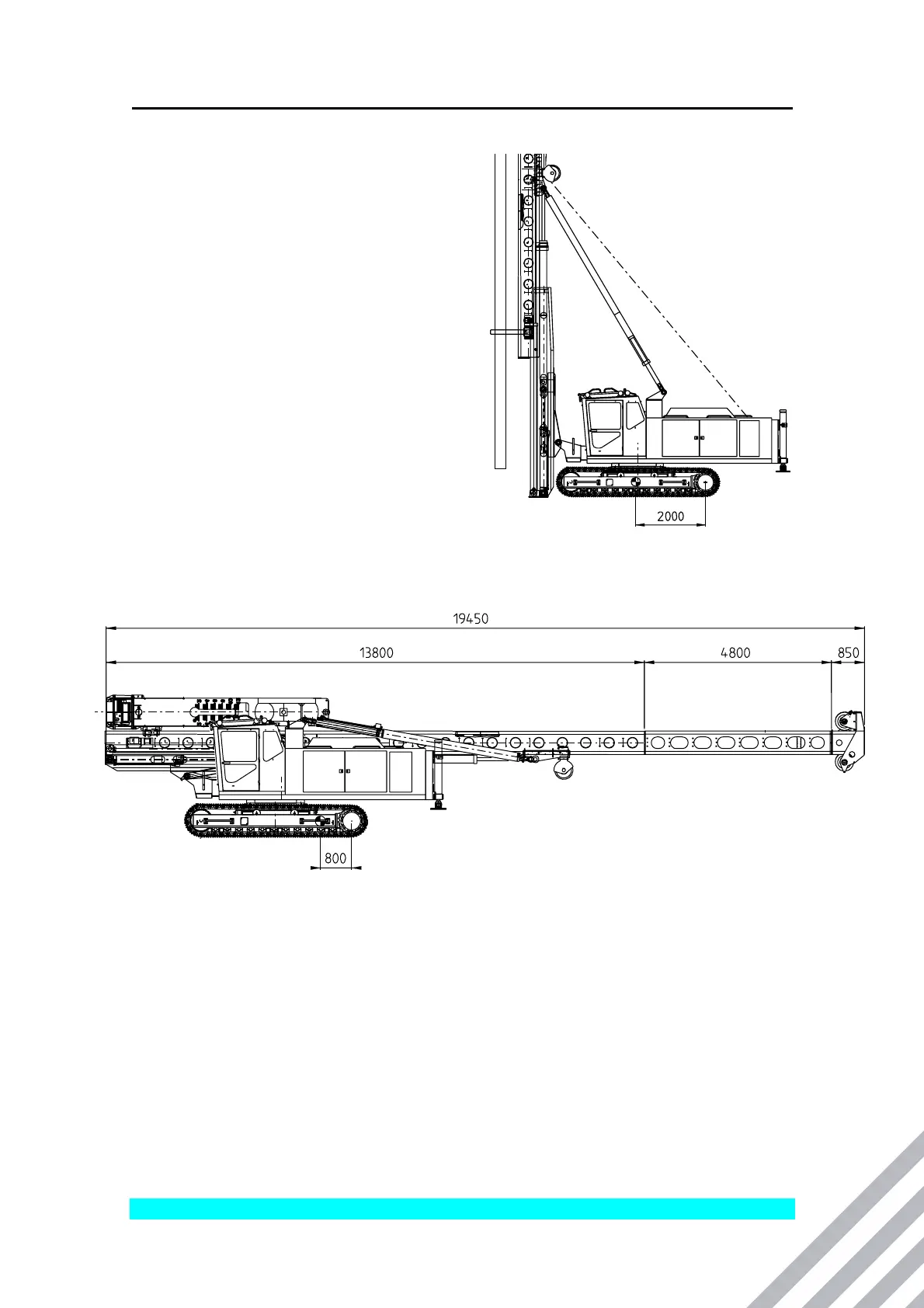

6.8.6 CENTER OF GRAVITY OF THE MACHINE
Working position
- leader in vertical position
- leader length 18.6 m (13.8 + 4.8) + cathead
- horizontal slide in
- counterweight (7 500 kg) fully in
- hammer (7 700 kg) on the leader
Transport position
- leader length 18.6 m (13.8 + 4.8) + cathead
- hammer (7 700 kg) on the leader
- counterweight (7 500 kg) fully in
