JUNTTAN Routine service section
129
n WARNING!
- Unwind the rope from the rope drum to the winch drum always to the same
direction of rotation.
- Exercise special caution during the opening of package.
- Careless opening can lead to serious personal injuries.
- Never unwind the rope from a drum which does not rotate or from a bundle.
Attention! Uncorrect handling of steel rope can lead to damaging of rope.

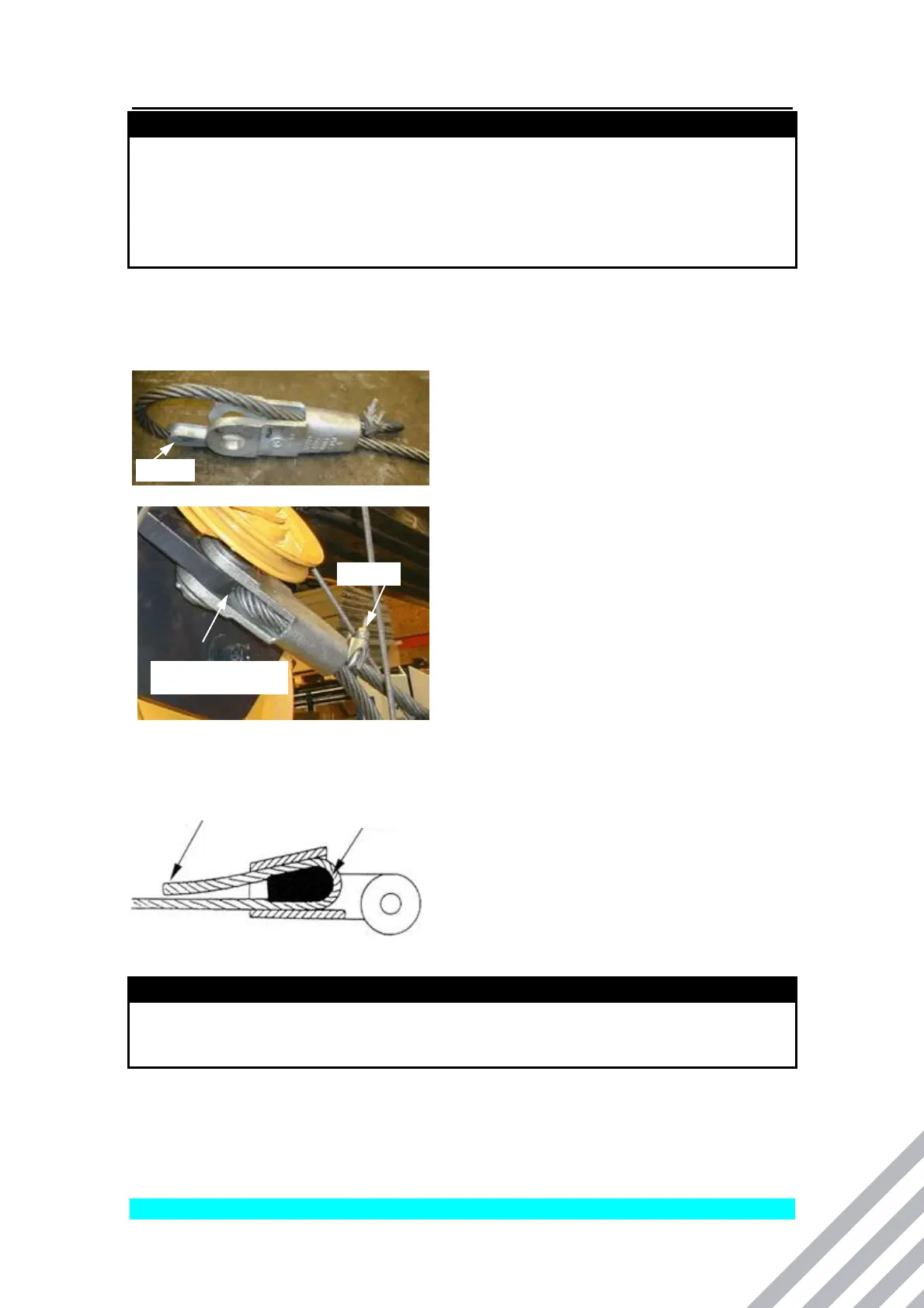

HANDLING OF ROPE HEADS
After you have pulled steel rope through the
pulleys, on the other end of it is attached a
rope socket.
Pull the rope through the rope socket joint
from the narrower side, make a loop and pull
the rope back to the bushing. To prevent the
rope from getting loose put the cotter to the
rope socket and shackle on top of the cable as
shown in the picture. After that, tighten the
cable until the cotter locks without clearance.
If the rope socket is oblique on other side,
make sure that the rope head is mounted on the
oblique side.
n WARNING!
Make sure that the steel rope, cotter, rope socket and shackle are of same size and
chosen according to standards. Wrong chosen and mounted main pieces may cause
loosening of rope from the rope socket, which may cause serious personal damage!
Cotte
Rope socket
oint
Shackle
Cotte
Rope head
