JUNTTAN Specifications section
33

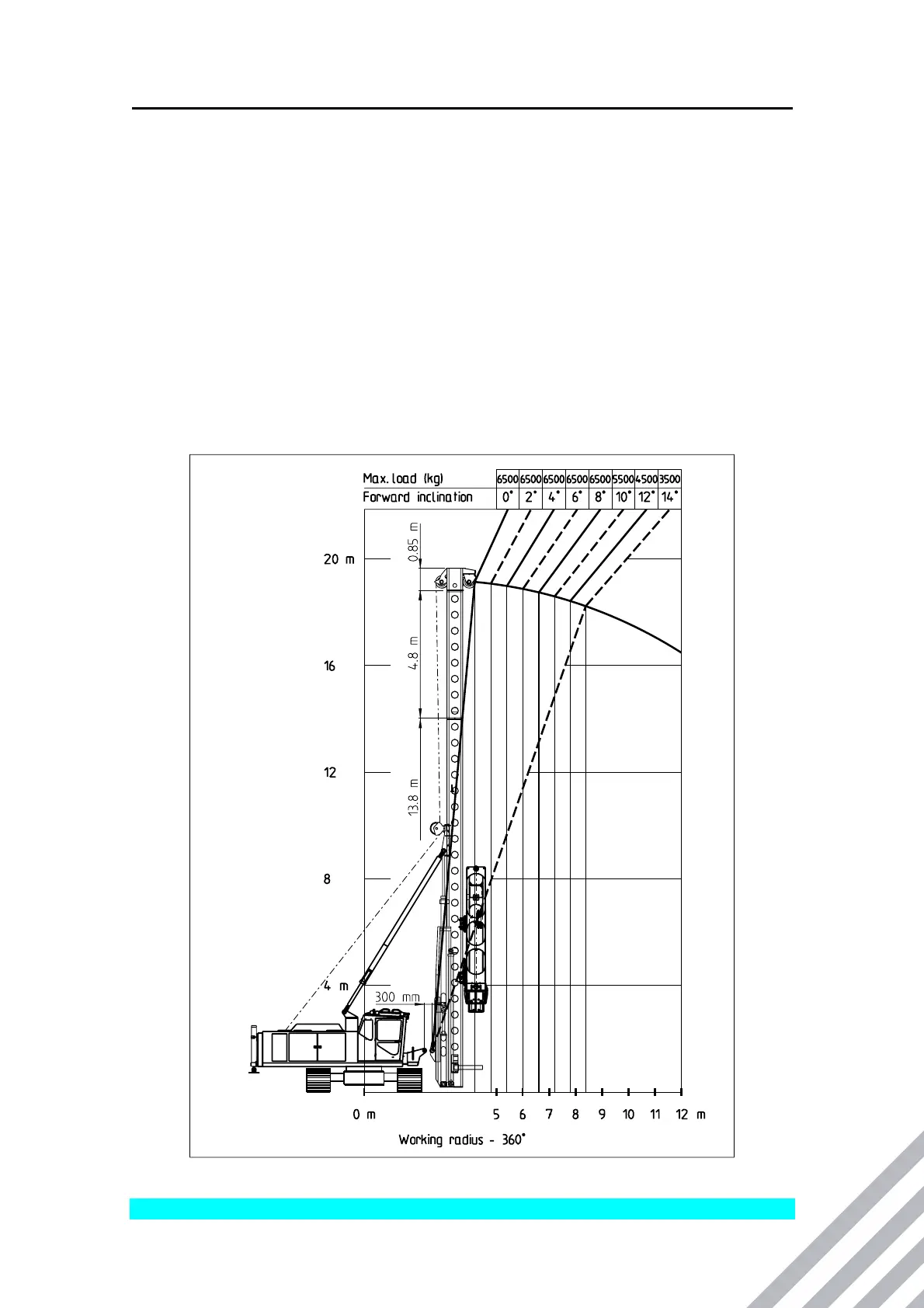

Machine type: Piling rig
Machine model: Junttan PM 20L
Serial number: 1461
Leader length: 18.6 m. The telescope is down. Leader foot is slightly above
the ground but it is allowed to be lifted up when needed.
Leader sections: 13.8 + 4.8 m, cathead 0.85 m
Hydraulic hammer: HHK 3AL, total weight 6400 kg.
Hammer is max 3 m from the ground.
Horizontal slide: Horizontal slide max 300 mm out.
Counterweight: Full weight 6000 kg (include stabilizers)
Undercarriage: With tracks in full width and on horizontal, level and firm ground.
Load maximum height from the ground is 4 m.
See Diagram Reading Instructions and Users' Manual for more details.
