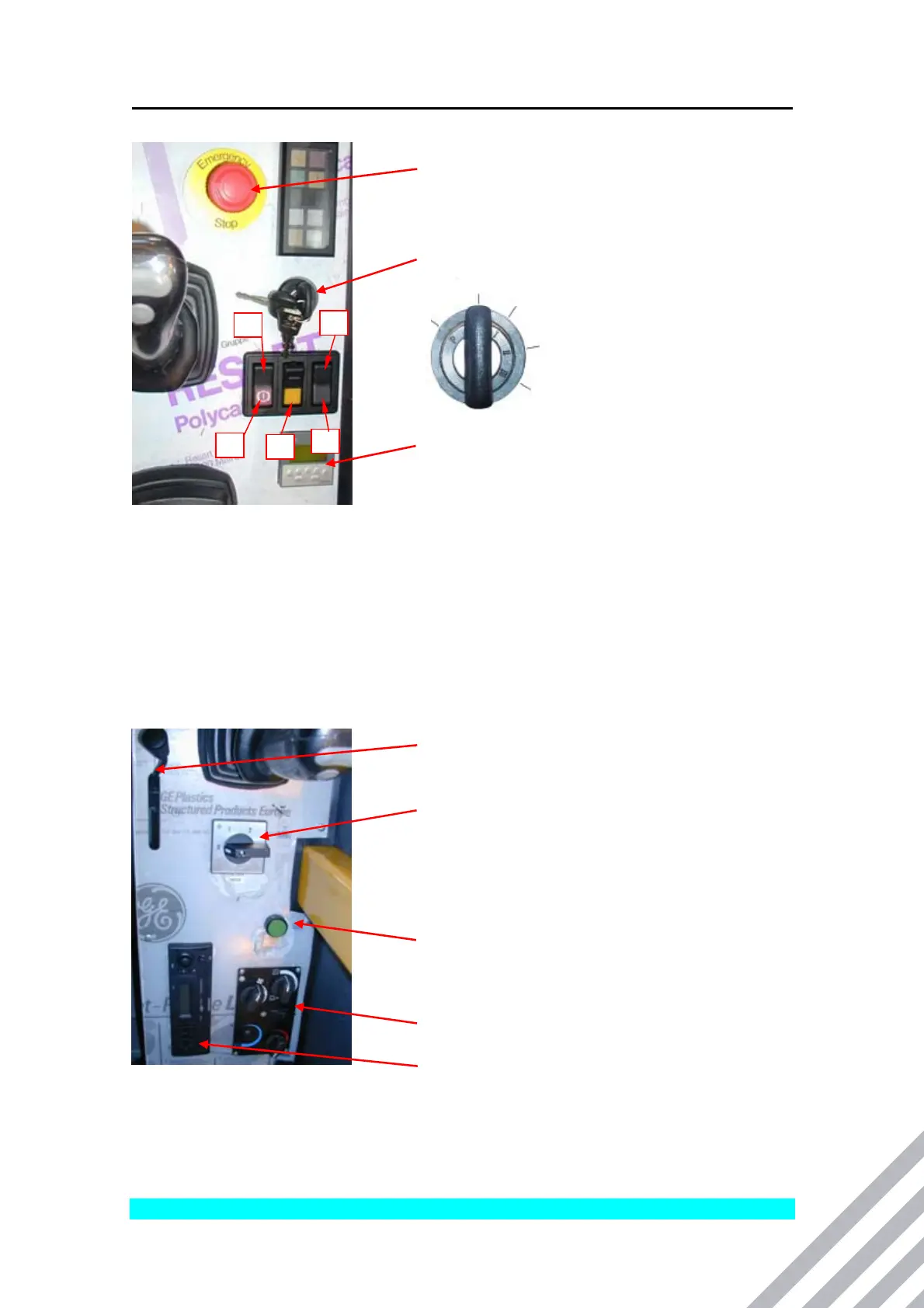

SWITCHES
Emergency stop Engine emergency stop
Ignition switch Key operated
P = not connected
0 = engine stop/key remove
I = current on
II = not connected
III = engine start
Blow counter
Switch 1: Winches/forward inclination cylinder release when using leader lift
device, see sections lifting/lowering leader how to use the switch.
Switch 2: Forward inclination cylinder release when using leader lift device, see
sections lifting/lowering leader how to use the switch.
Switch 3: Leader lift device, pre-selection switch.
Switch 4: Leader lift device up.
Switch 5: Leader lift device down.
Throttle lever Engine rpm control
Piling mode switch
0 hammer hydraulics not connected
1 hydraulics connected for manual operation
2 hydraulics connected for continuous mode
Ram block single lift Lift of the ram block,
piling start switch/releasing of pile winch in
vibrator mode
lift button
Heater
Radio
P
0
I
II
III
