n WARNING
Make sure that there is no person in the danger zone when moving with the machine.
Make sure that the ground in the working site is level and stable enough and the
border areas are properly marked.
For example
• If you drive to a 5° downward slope, you incline the leader 10° backwards before
driving to a slope.
• If you drive to a 3° upward slope, you incline the leader 2° backwards, before driving
to a slope.
• Notice! See the capacity tables for maximum allowable pile weights and lengths
before inclining leader backwards.

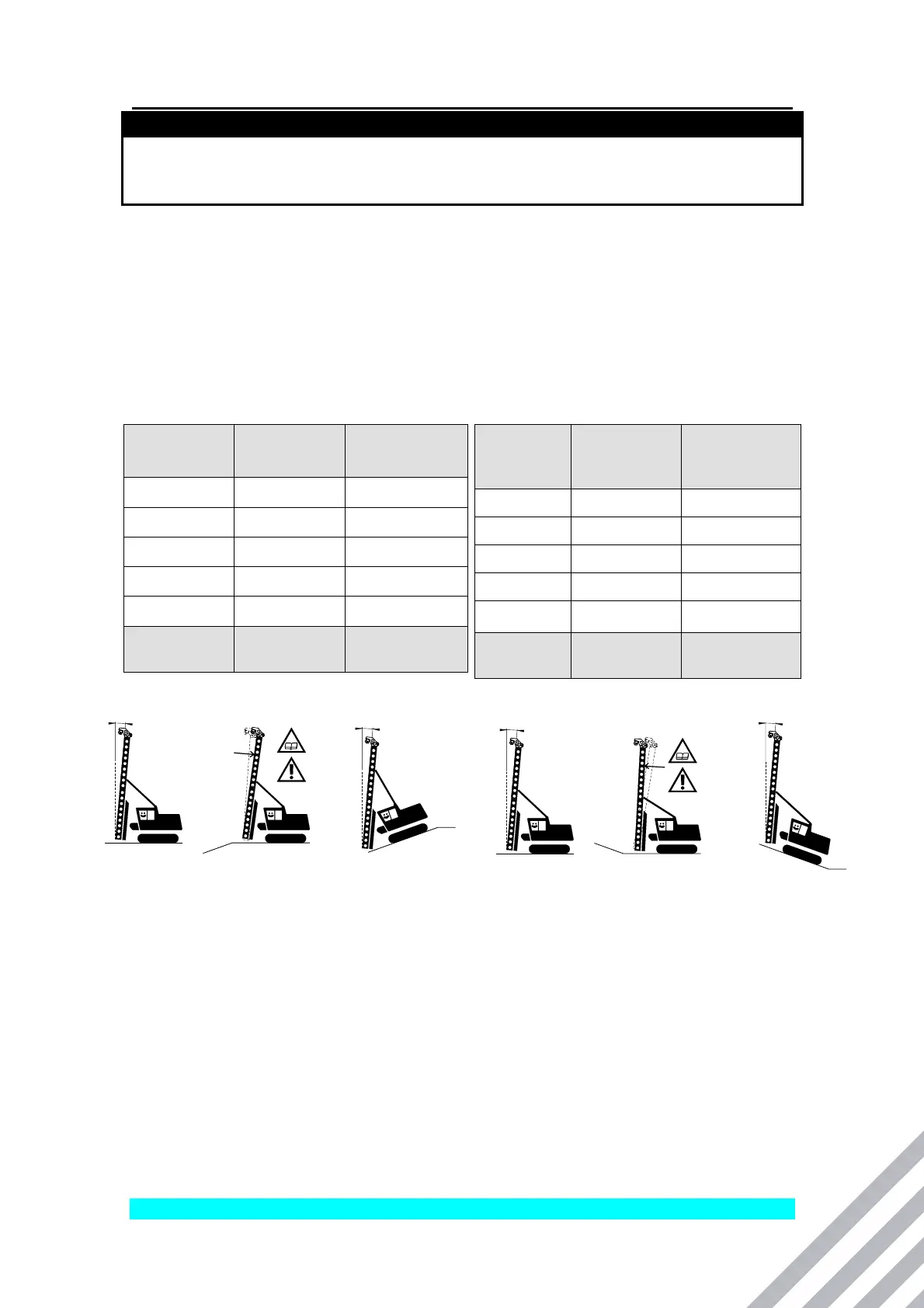

DOWNWARD
SLOPE
LEADER
BACKWARD
INCLINATION
INCLINOMETER
DISPLAY ON THE
SLOPE
5° 10° -5°
4° 9° -5°
3° 8° -5°
2° 7° -5°
1° 6° -5°
LEVEL
GROUND
5° -5°
UPWARD
SLOPE
LEADER
BACKWARD
INCLINATION
INCLINOMETER
DISPLAY ON
THE SLOPE
5° 0° -5°
4° 1° -5°
3° 2° -5°
2° 3° -5°
1° 4° -5°
LEVEL
GROUND
5° -5°
