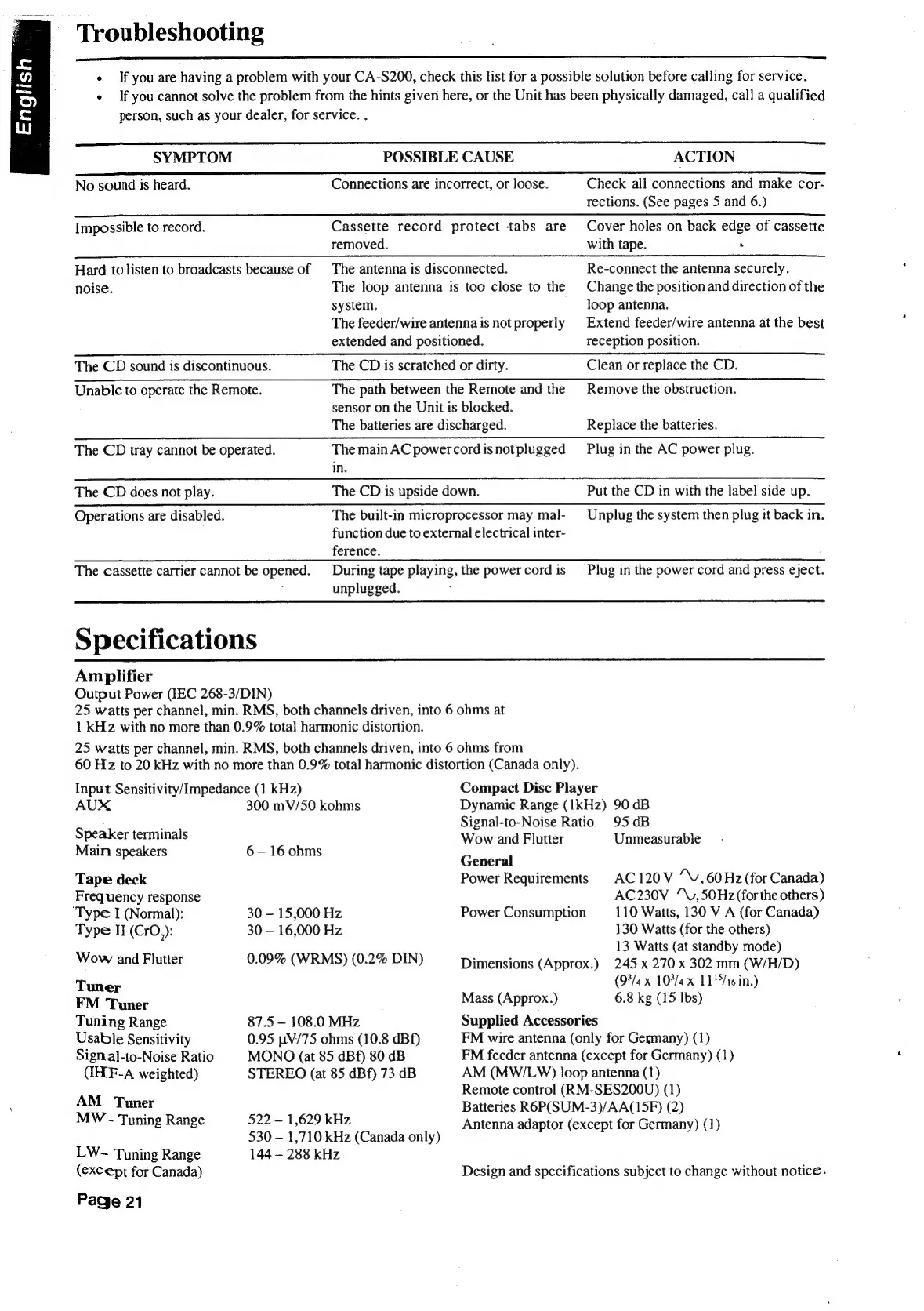

| Troubleshooting
» If you are having a problem with your CA-S200, check this list for a possible solution before calling for service.
« If you cannot solve the problem from the hints given here, or the Unit has been physically damaged, call a qualified
person, such as your dealer, for service. .
SYMPTOM
POSSIBLE CAUSE
ACTION
No sound is heard.
Connections are incorrect, or loose.
Check all connections and make cor-
rections. (See pages 5 and 6.)
Impossible to record.
removed.
Cassette record protect tabs are
Cover holes on back edge of cassette
with tape. .
Hard to listen to broadcasts because of
noise.
system.
The feeder/wire antenna is not properly
extended and positioned.
The antenna is disconnected.
The loop antenna is too close to the
Re-connect the antenna securely.
Change the position and direction of the
loop antenna.
Extend feeder/wire antenna at the best
reception position.
The CD sound is discontinuous.
The CD is scratched or dirty.
Clean or replace the CD.
Unable to operate the Remote.
The path between the Remote and the
Remove the obstruction.
sensor on the Unit is blocked.
The batteries are discharged.
Replace the batteries.
The CD tray cannot be operated.
in.
The main AC power cord is not plugged
Plug in the AC power plug.
The CD does not play.
The CD is upside down.
Put the CD in with the label side up.
Operations are disabled.
The built-in microprocessor may mal-
Unplug the system then plug it back in.
function due to external electrical inter-
ference.
The cassette carrier cannot be opened. During tape playing, the power cord is _ Plug in the power cord and press eject.
: unplugged.
e °
Specifications
Amplifier
Output Power (IEC 268-3/DIN)
25 watts per channel, min. RMS, both channels driven, into 6 ohms at
1 kHz with no more than 0.9% total harmonic distortion.
25 watts per channel, min. RMS, both channels driven, into 6 ohms from
60 Hz to 20 kHz with no more than 0.9% total harmonic distortion (Canada only).
Input Sensitivity/Impedance (1 kHz)
AUX 300 mV/50 kohms
Speaker terminals
Main speakers 6— 16 ohms
Tape deck
Frequency response
‘Type I (Normal): 30 — 15,000 Hz
Type II (CrO,): 30 — 16,000 Hz
Wow and Flutter 0.09% (WRMS) (0.2% DIN)
Tuner
FM Tuner
Tuning Range 87.5 — 108.0 MHz
Usable Sensitivity 0.95 pV/75 ohms (10.8 dBf)
Sign al-to-Noise Ratio MONO (at 85 dBf) 80 dB
(IH'F-A weighted) STEREO (at 85 dBf) 73 dB
522 — 1,629 kHz
530 — 1,710 kHz (Canada only)
LW~ Tuning Range 144 — 288 kHz
(except for Canada)
Page 21
Compact Disc Player
Dynamic Range (1kHz) 90 dB
Signal-to-Noise Ratio 95 dB
Wow and Flutter Unmeasurable
General
Power Requirements AC120V \y 60 Hz (for Canada)
AC230V %v,50Hz(forthe others)
110 Watts, 130 V A (for Canada)
130 Watts (for the others)
13 Watts (at standby mode)
245 x 270 x 302 mm (W/H/D)
(97/4 x 10%/4x 11'*/i6in.)
6.8 kg (15 Ibs)
Power Consumption
Dimensions (Approx.)
Mass (Approx.)
Supplied Accessories
FM wire antenna (only for Germany) (1)
FM feeder antenna (except for Germany) (1)
AM (MW/LW) loop antenna (1)
Remote control (RM-SES200U) (1)
Batteries R6P(SUM-3)/AA(15F) (2)
Antenna adaptor (except for Germany) (1)
Design and specifications subject to change without notice.
