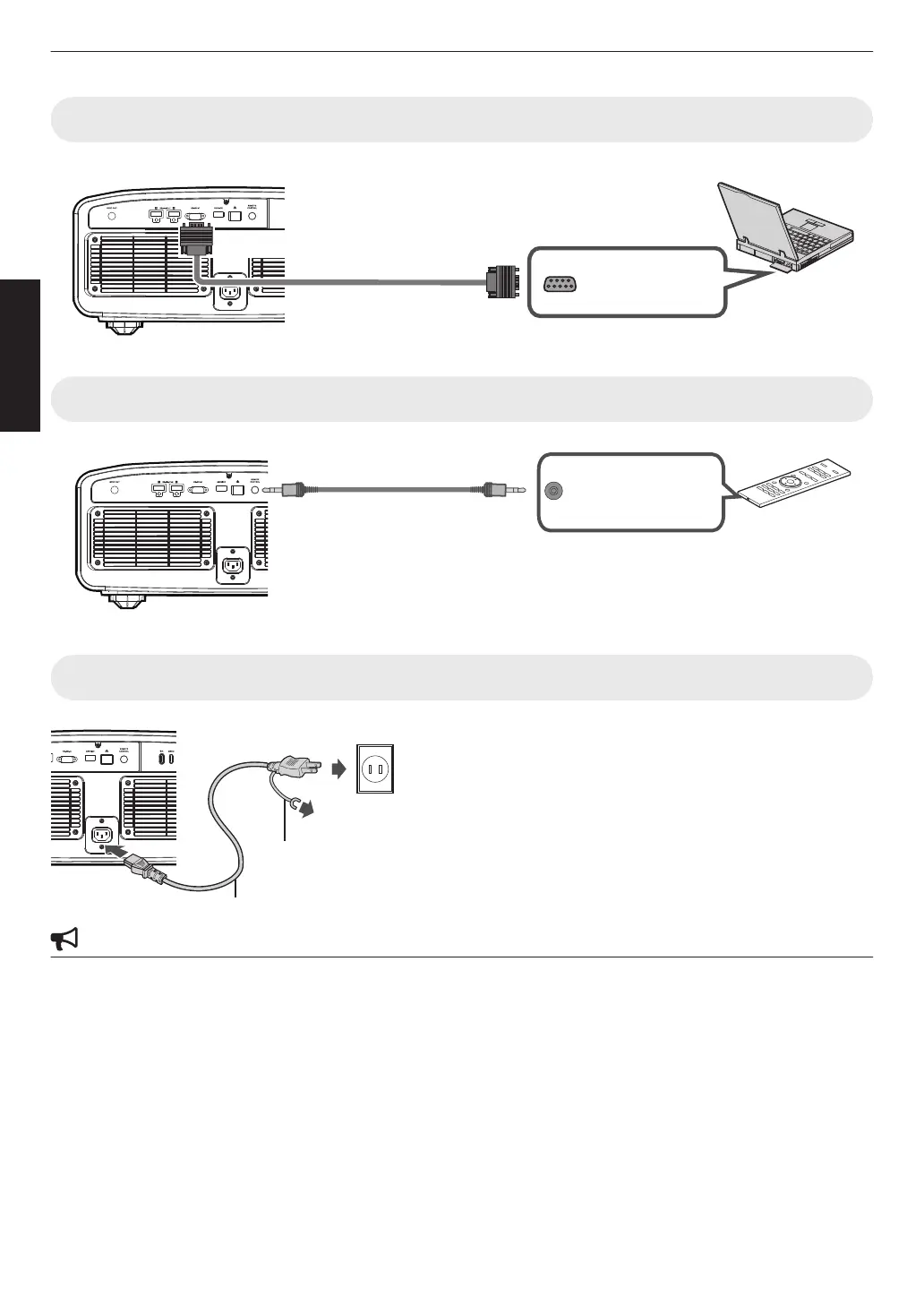

Connecting to the RS-232C Terminal
RS-232C Terminal
Laptop, etc.
RS-232C Connection Cable
(Sold Separately)
To [RS-232C] Terminal
This Unit
0
For more information on control, please refer to “External Control”P. 55.
Connecting to the REMOTE Terminal
This Unit
Wired Remote Controller
(Sold Separately)
Connection Cable
(Sold Separately)
To [REMOTE] Terminal
0
For more details on the wired remote controller and connection cable, please consult your dealer.
Connecting the Power Cord (Supplied Accessory)
A
Connect
the
power cord supplied to the power input terminal on
the main unit
B
Insert the supplied power plug into the wall outlet.
Precautions to prevent fire and electric shock
0
The power consumption of this unit is large. Please connect it directly to the wall outlet.
0
When you are not using the projector, please unplug the power cord from the outlet.
0
Connect it using only the power cord supplied.
0
Do not use a voltage other than the indicated power voltage.
0
Do not damage, break or modify the power cord. Do not place a heavy object on the power cord, or heat or pull it.
Doing so may damage the power cord.
0
Do not unplug the power cord with wet hands.
A
B
Ground Cable
To Ground
Power Cord (Supplied)
