Installation

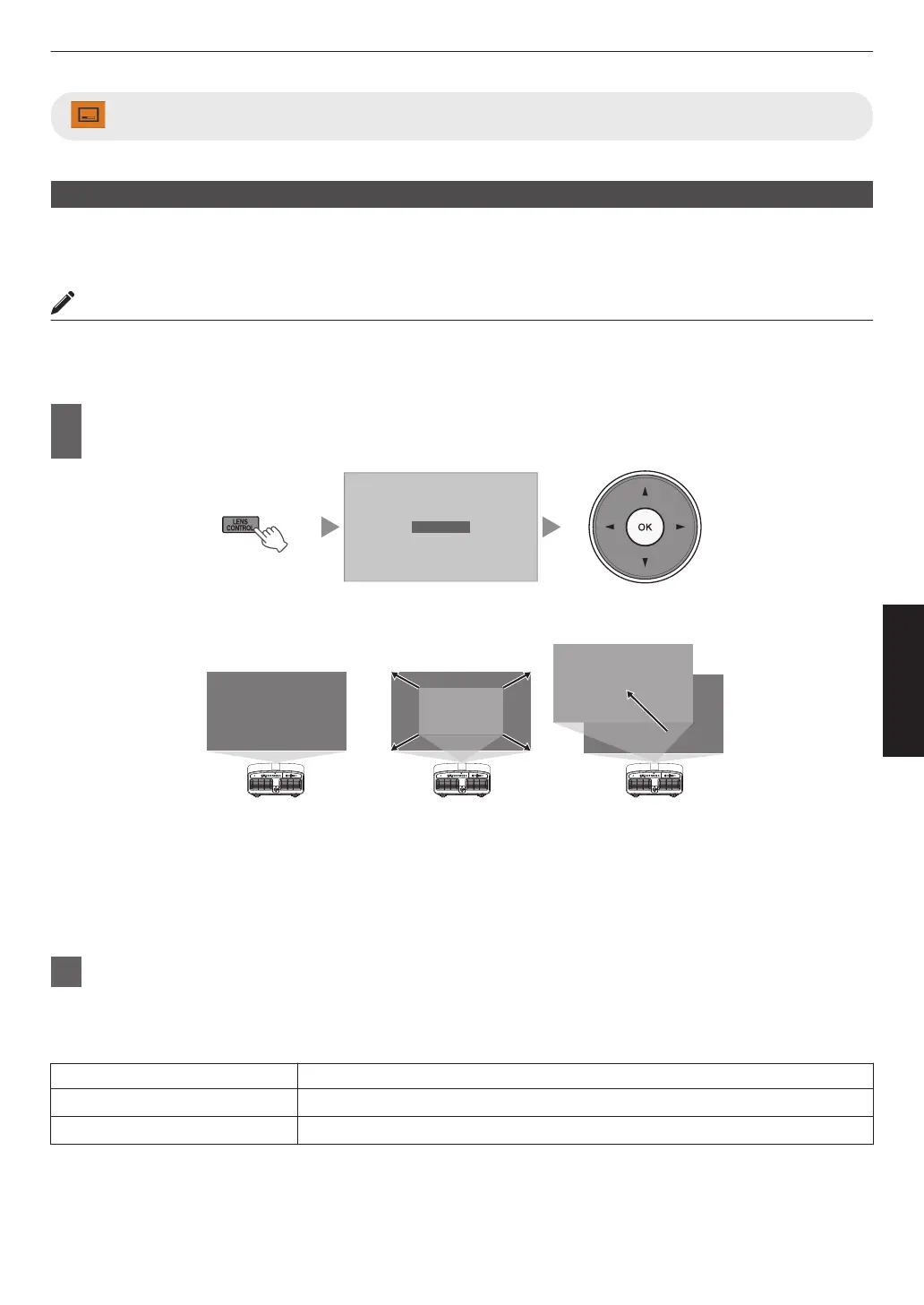

Lens Control
Focus / Zoom / Shift
For adjusting the lens according to the projection position
MEMO
To use the Shift function, a motorized lens shift unit is required. For details on installing the motorized lens shift unit
(sold separately), refer to the instruction manual of the motorized lens shift unit.
Motorized lens shift unit (product no.: PK-MLS01)
1
Press the [LENS CONTROL] button, and use the [JKH I] keys to adjust Focus,
Zoom (screen size), and Shift (screen position)
0
Pressing the [LENS CONTROL] or [OK] button each time switches the mode in the following sequence:
“Focus” " “Zoom” " “Shift” " “Focus”...
Shift (Screen Position)
Adjustment
Zoom (Screen Size)
Adjustment
ABCD
ABCD
ABCD
Focus Adjustment
0
If
the
driving range of the motorized lens shift unit is exceeded, the projected screen cannot be shifted anymore
when the lens reaches the end.
0
Pressing and holding the [JKH I] keys continuously after the projected screen cannot be shifted anymore
will overload the motor causing malfunction.
2
Press the [MENU] or [BACK] button to end adjustment
Image Pattern
For setting whether to display the lens adjustment pattern.
Setting Description
Off Displays external signals, and does not display the lens adjustment pattern.
On Displays the lens adjustment pattern.
35
Adjust/Set
To Next Page
