5

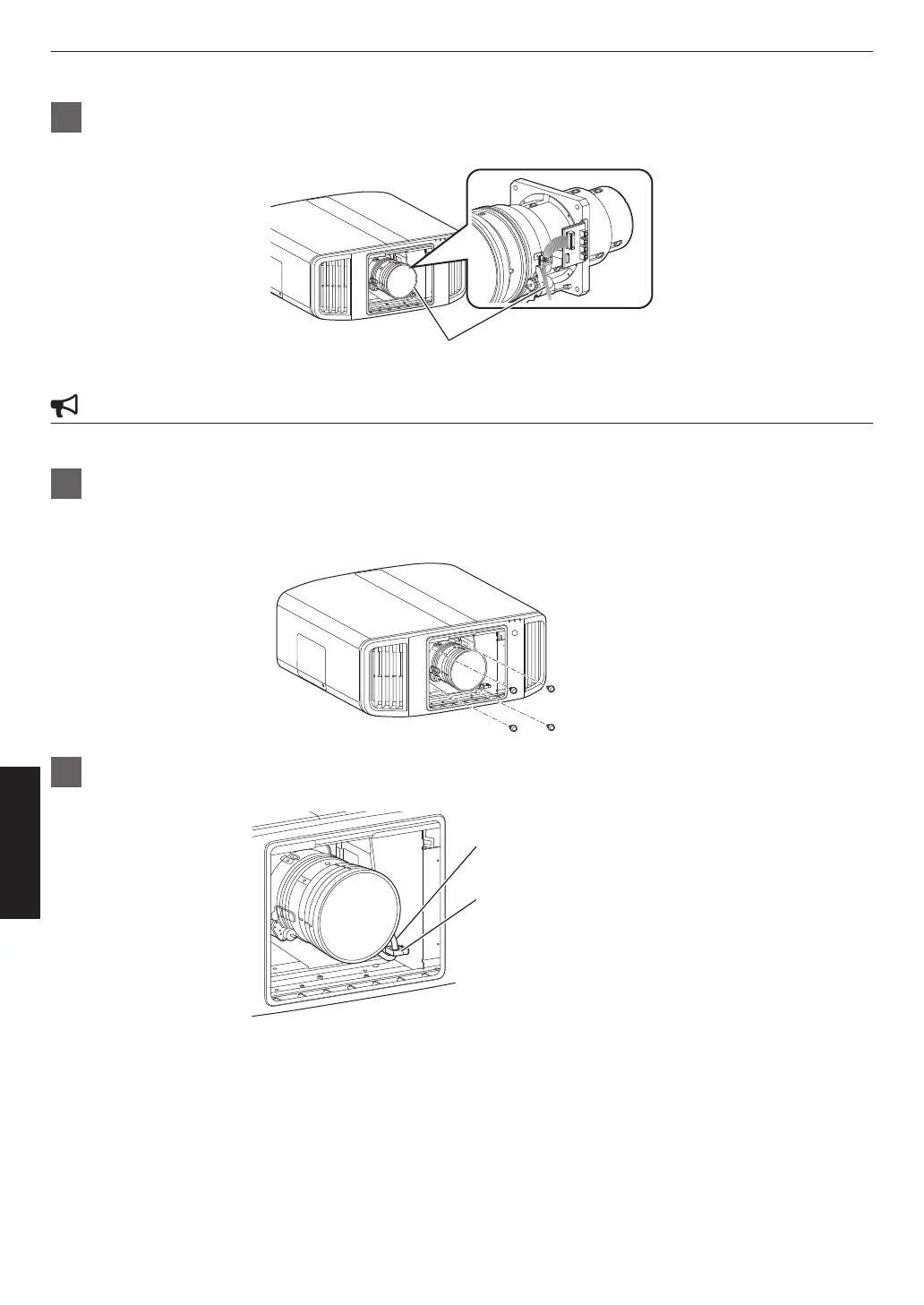

Connect the motor cable
0
Connect the motor cable (20pin) to lens.
Motor Cable
CAUTION
0
Keep the cable away from the motor gear when clamping the motor cable.
6
Tighten the 4 screws using the Phillips head screwdriver to fasten the lens
0
Use the screws that comes with the lens.
* The recommended tightening torque for the screws for mounting the lens is 1.47N・m (15kgf・cm).
7
Clamp the motor cable
Clamp
Motor Cable
50
