Battery Operation
The attachable battery varies depending on location.
Recommended batteries
U model: Dionic 90 (Anton Bauer)
E model: Endura-7 (IDX)
CAUTION
Use only the recommended batteries.
If a heavy battery is used, the battery may fall out depend-
ing on the way the HD camera recorder is used.
GY-HD200U
Use an Anton Bauer battery.

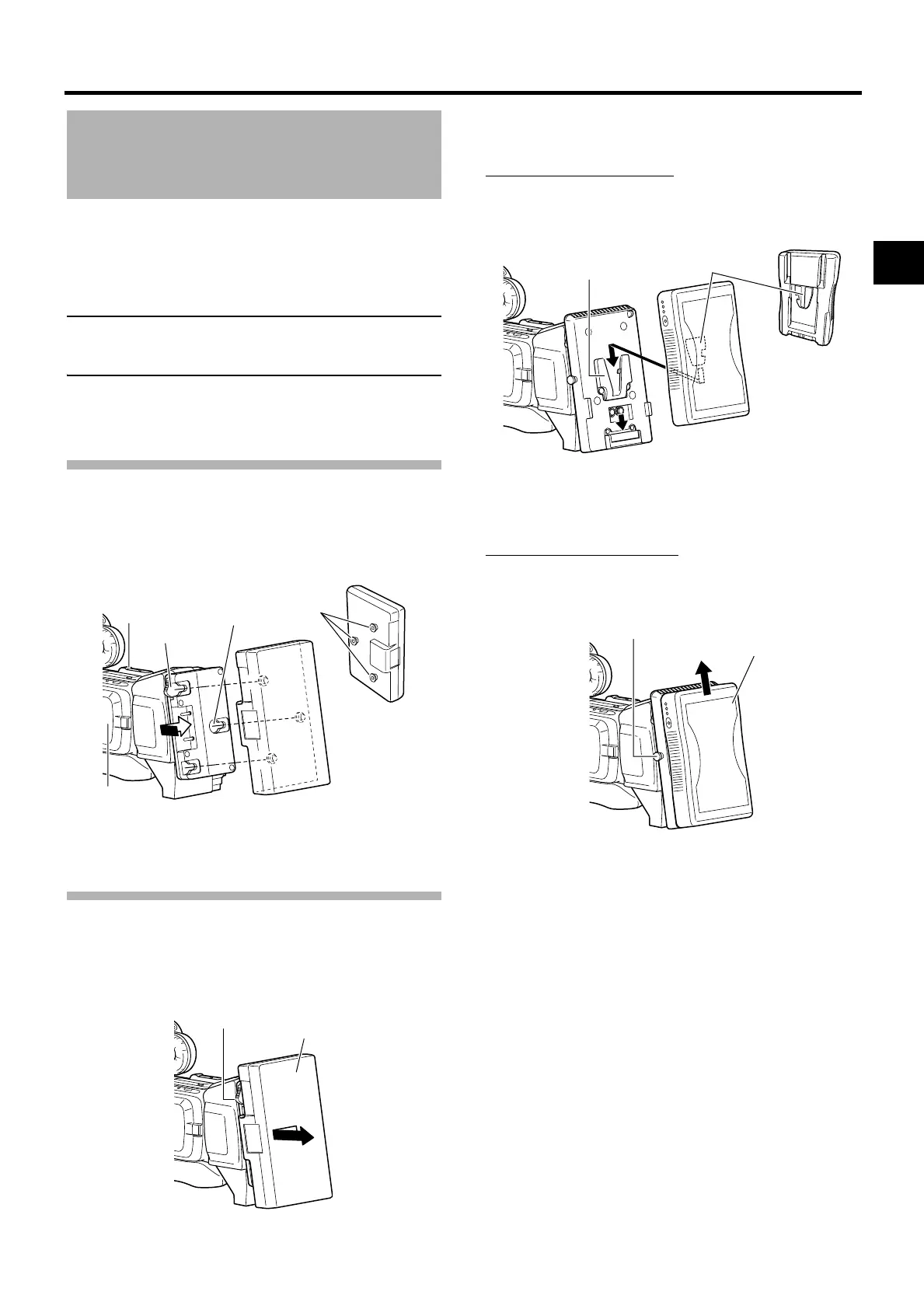

Attaching the Battery
1. Align the battery guide pins (three places) with the bat-
tery adapter guide holes and insert straight. Battery will
not be properly attached if guide pins are not straight.
2. Slide the battery towards the Cassette cover side panel
until it clicks.
• The battery is attached.
Removing the Battery
Slide the battery towards you (LCD screen side panel) while
holding down the release lever, and pull away from the
device to remove the battery.
GY-HD200E/GY-HD201E
Use an IDX (Endura) battery.
Attaching the Battery
1. Face the battery terminals down and align the battery V-
mount with the battery adapter V-mount attachment.
2. Slide the battery down until it clicks and locks.
• The battery is attached.
Removing the Battery
Slide the battery up while holding down the lock release but-
ton to remove the battery.
Release lever
Cassette cover
side panel
Guide
holes (×3)
LCD screen
side panel
Guide pins
Battery pack
(trim pack)
Release lever
Battery
V-mount
attachment
V-mount
Release button
Battery
