(No.HC034<Rev.001>)1-9

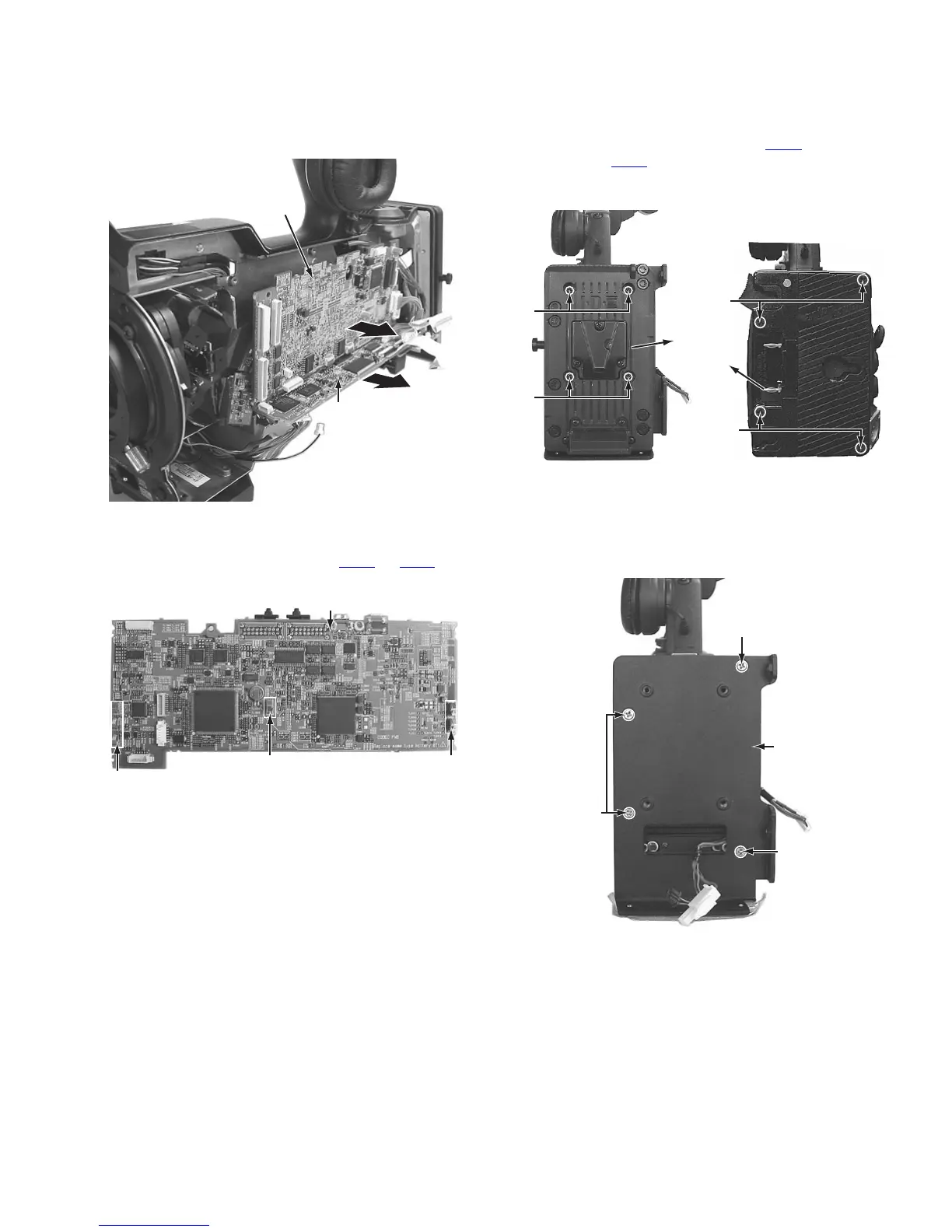

(7) To remove the CAM board and the CODEC board, slide the

two boards together.

• As the CAM board and the CODEC board are connected

board to board, be very careful when removing and at-

taching the boards.

Fig.21

• When placing the removed CODEC board, be careful not

to deform the connectors from CN89

to CN94 on the

board.

Fig.22

3.4.4 Removing the GENTC board and REG board (See fig-

ure 23, figure 24, figure 25, figure 26, figure 27, figure

28, figure 29, figure 30 and figure 31)

(1) Remove the right side cover assembly, and then discon-

nect the wires from the connector CN88

on the CODEC

board and CN29

on the CAM board.

(2) Remove the four screws A attaching the battery mount

unit.

Fig.23

(3) Remove the four screws B attaching the bracket. (For only

E model)

Fig.24

CAM Board

CODEC Board

CN94

CN89,CN90,CN91

CN92,CN93

Battery

mount unit

For only E model

(IDX type)

For only U model

(Antonbauer type)

Bracket
