JVC MX-GA8 Service Manual

(No.MB080)1-13

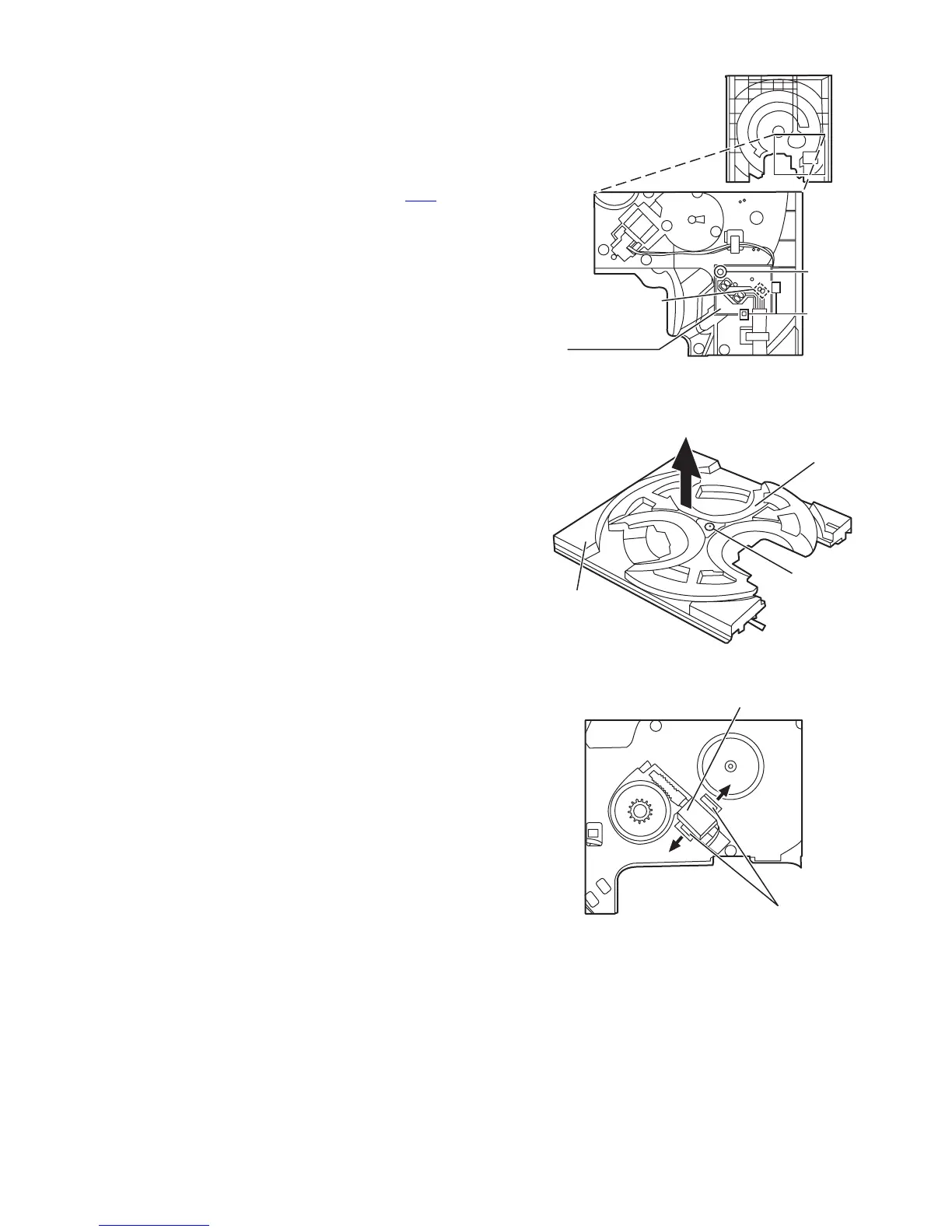

3.3.3 Removing the sensor board
(See Fig. 5)
• Prior to performing the following procedure, remove the CD
tray.
(1) Remove the screw A attaching the sensor board on the CD
tray.
(2) Remove the sensor board releasing the two tabs a.
(3) Disconnect the harness from the connector CW1
on the
sensor board.
Fig.5
3.3.4 Removing the turn tray motor
(See Fig. 6 and 7)
• Prior to performing the following procedure, remove the CD
tray and sensor board.
(1) Remove the screw B attaching the turn tray. Detach the
turn tray from the base tray.
(2) Pull outward the tab b attaching the turn tray motor on the
base tray and detach the turn tray motor.
Fig.6
Fig.7
Tab a
Sensor board
CW1
A
Turn tray
Base tray
B
Tab b
Turn tray moto
r
