JVC MX-GA8 - CD Mechanism Section; Removing the Pickup Unit; Removing the Motor Board; Removing the Feed Motor

1-16 (No.MB080)
3.4 CD mechanism section
• Removing the CD mechanism holder from the CD chager unit.
(Refer to "Removing the CD mechanism holder assembly" )
3.4.1 Removing the pickup unit
(See Fig. 1)
(1) Removing the cut washer on the feed gear sleeve and pull
out the feed gear.
(2) Remove the two screws A fixing the pickup shaft.
(3) Removing the pickup unit.
3.4.2 Removing the motor board
(See Fig. 2)
(1) Unsolder the motor terminal on the motor board.
(2) Remove the moter board.
3.4.3 Removing the feed motor
(See Fig. 1)
(1) Remove the two motor fixing screws at B and removing the
feed motor.
3.4.4 Removing the spindle motor
• The spindle motor cannot be removed as a single unit.
• When removing the spindle motor, change the chasis and turn-
table together as aunit.

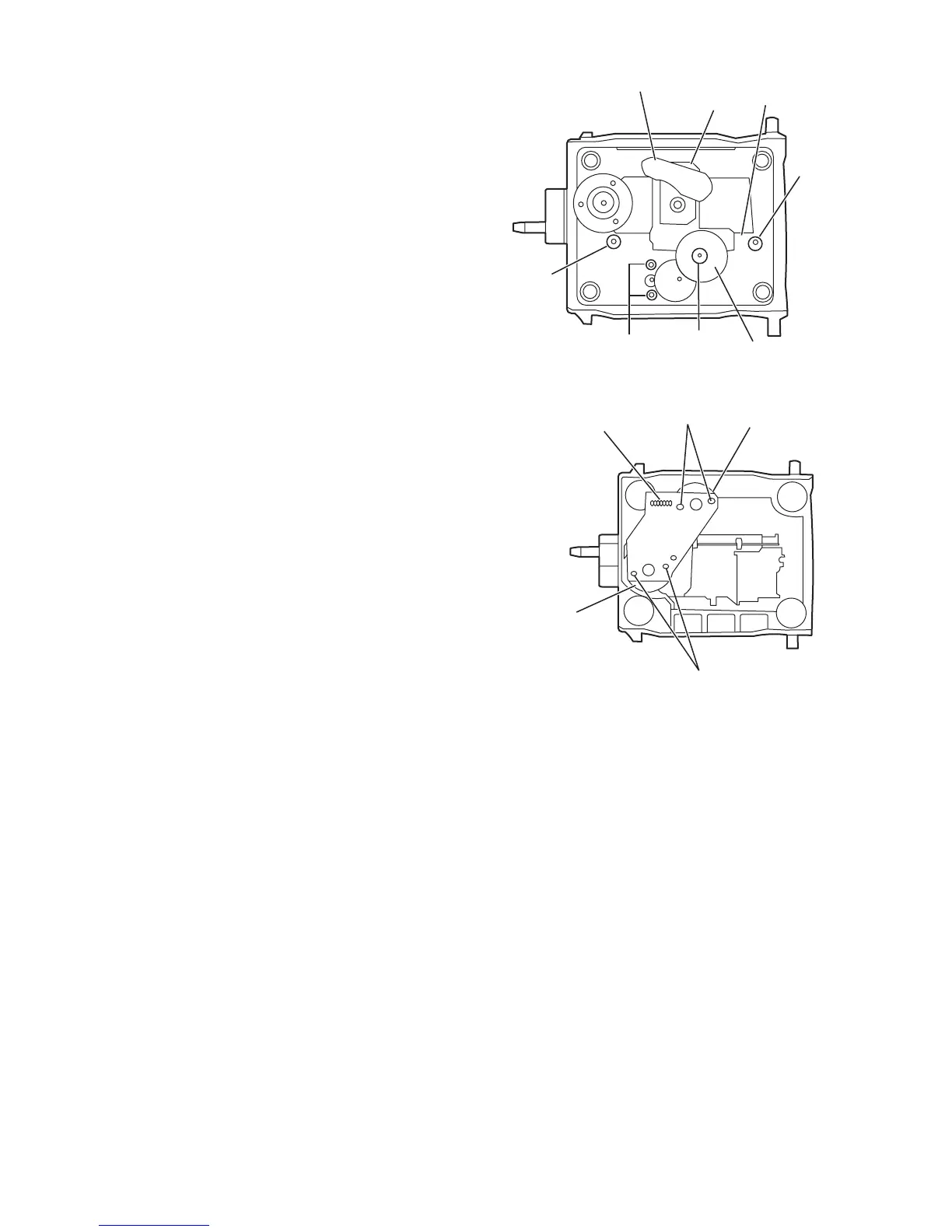

Fig.1
Fig.2
Cut washer
A
A
B
Shaft
Feed Gear
Shutter
Pickup unit
Unsolder
Motor board
Unsolder
Feed motor
Spindle motor
