JVC MX-GA8 Service Manual

(No.MB080)1-17
3.5 Cassette mechanism section
• Prior to performing the following procedure, remove the cas-
sette mechanism assembly.
3.5.1 Removing the R/P head.
(See Fig. 1 and 2)
(1) Remove the screw A on the right side of the R/P head.
(2) Remove the screw B on the left side of the R/P head.
3.5.2 Remove the erase head.
(See Fig. 1)
(1) Remove the screw C fixing the erase head.

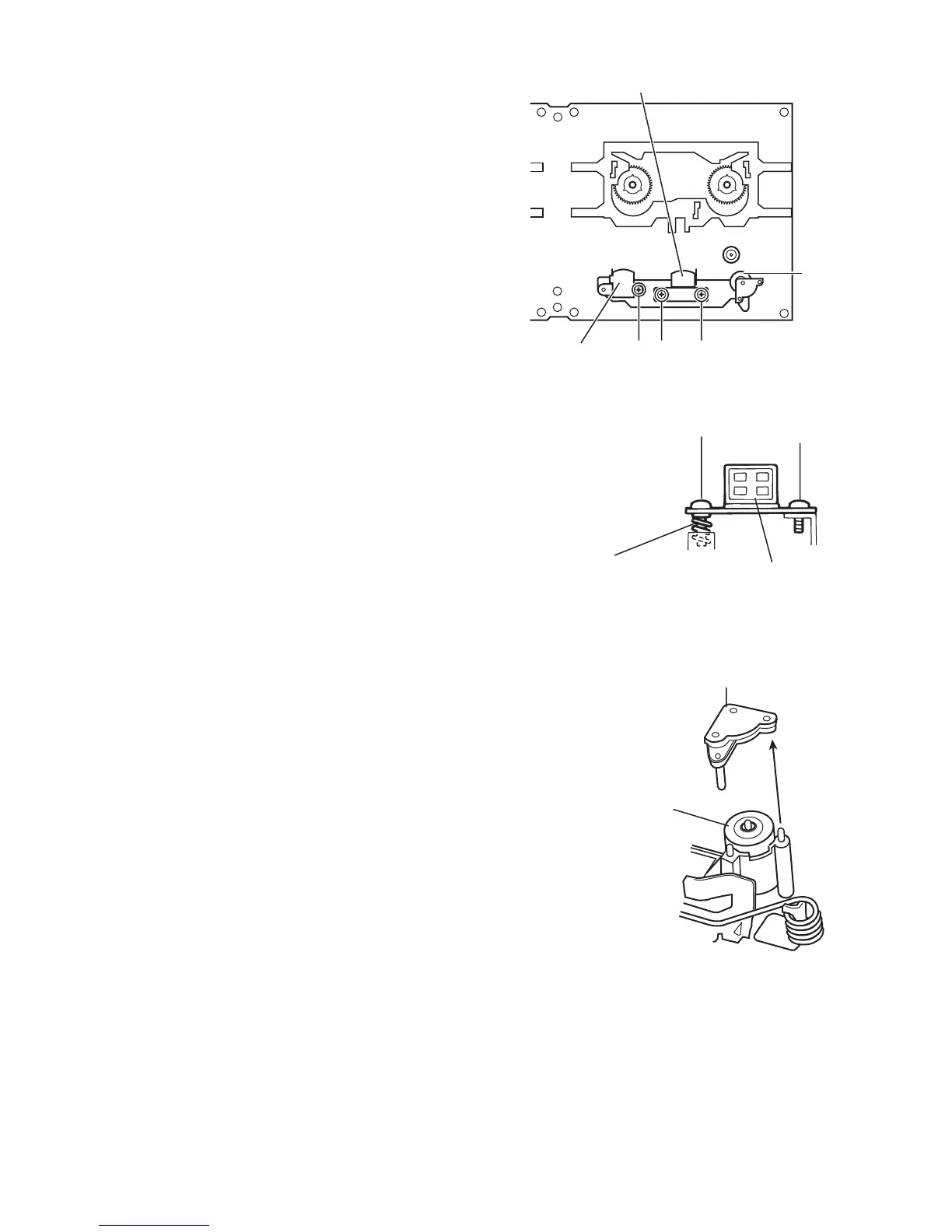

Fig.1
Fig.2
3.5.3 Remove the pinch roller.
(See Fig. 3)
(1) Pull out the pinch roller stopper.
(2) Pull out the pinch roller.
Fig.3
R/P Head
E. Head
Pinch rolle
r
ABC
R/P Head
Spring
A
B
Pinch roller
Pinch roller
stopper
