3.6 Speaker section
• It is exchange in a unit.
Please do not decompose as much as possible.
3.6.1 Removing the side panel
(See Fig. 1)
(1) Remove the five screws A attaching the side panel and re-
move the side panel.

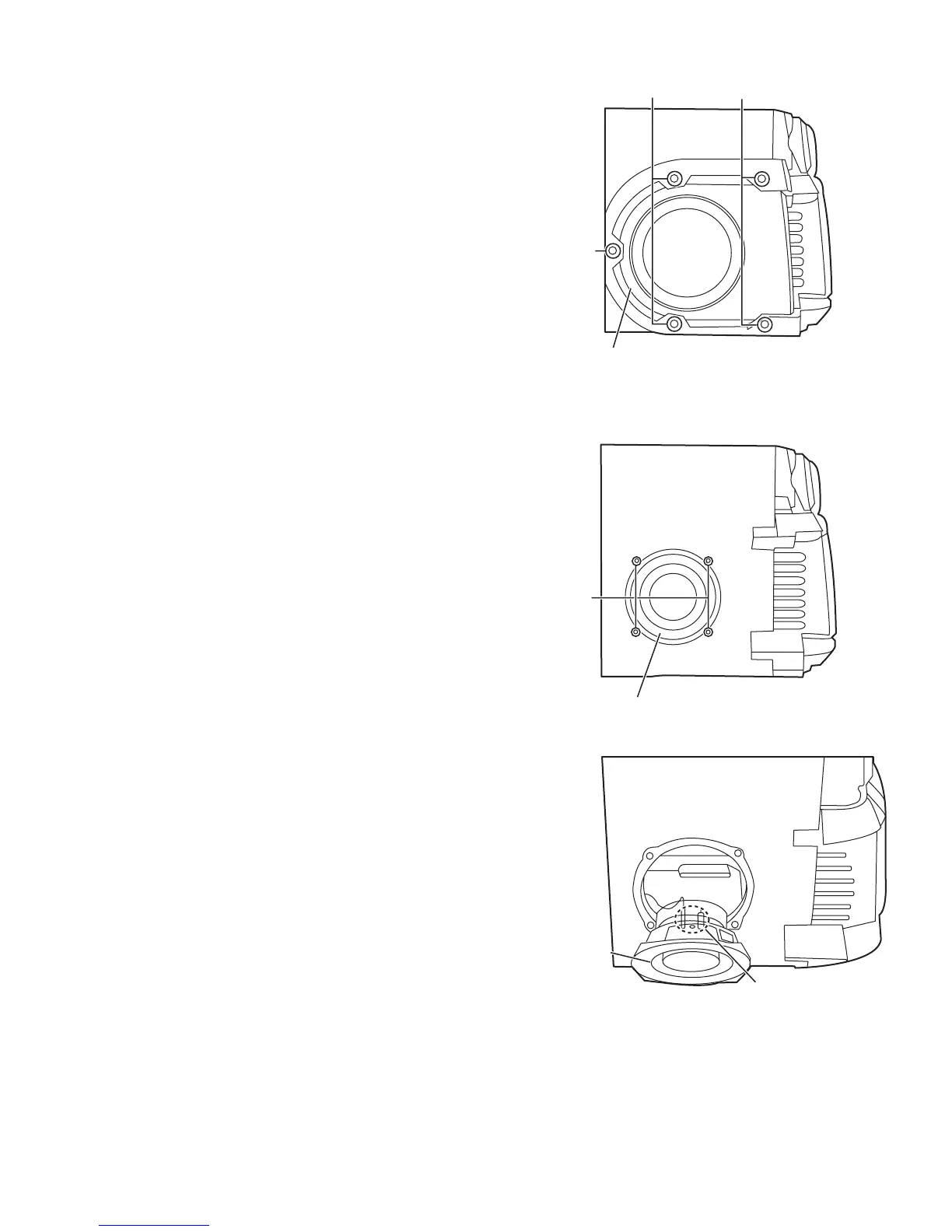

Fig.1
3.6.2 Removing the side speaker
(See Fig. 2 and 3)
• Prior to performing the following procedure, remove the side
panel.
(1) Remove the four screws B attaching the side speaker.
(2) Pull out the side speaker and remove the speaker cord
from the speaker terminal.
Fig.2
Fig.3
Side panel
A
A
A
Side speaker
B
Side speaker
Speaker terminal
