Simultaneous Dubbing
It is possible to perform recording simultaneously on both the VHS deck and the DV deck from the same external input.
A Press
AUX (number key “0”)
and /or
PR
to select the appropriate input mode depending on the connectors being used.
B Press
DV
to select the DV deck. Press and hold
9
and press
7
so that the DV deck enters the Record Pause mode.
C Press
VHS
to select the VHS deck. Press and hold
9
and press
7
so that the VHS deck enters the Record Pause mode.
D Engage the Play mode of the connected device.
E Press
4
to start recording on both the VHS deck and DV deck.
F Press
8
to stop recording on the VHS deck.
G Press
DV
to select the DV deck, then press
8
to stop recording on the DV deck.
1
32
1
32
1
32
B

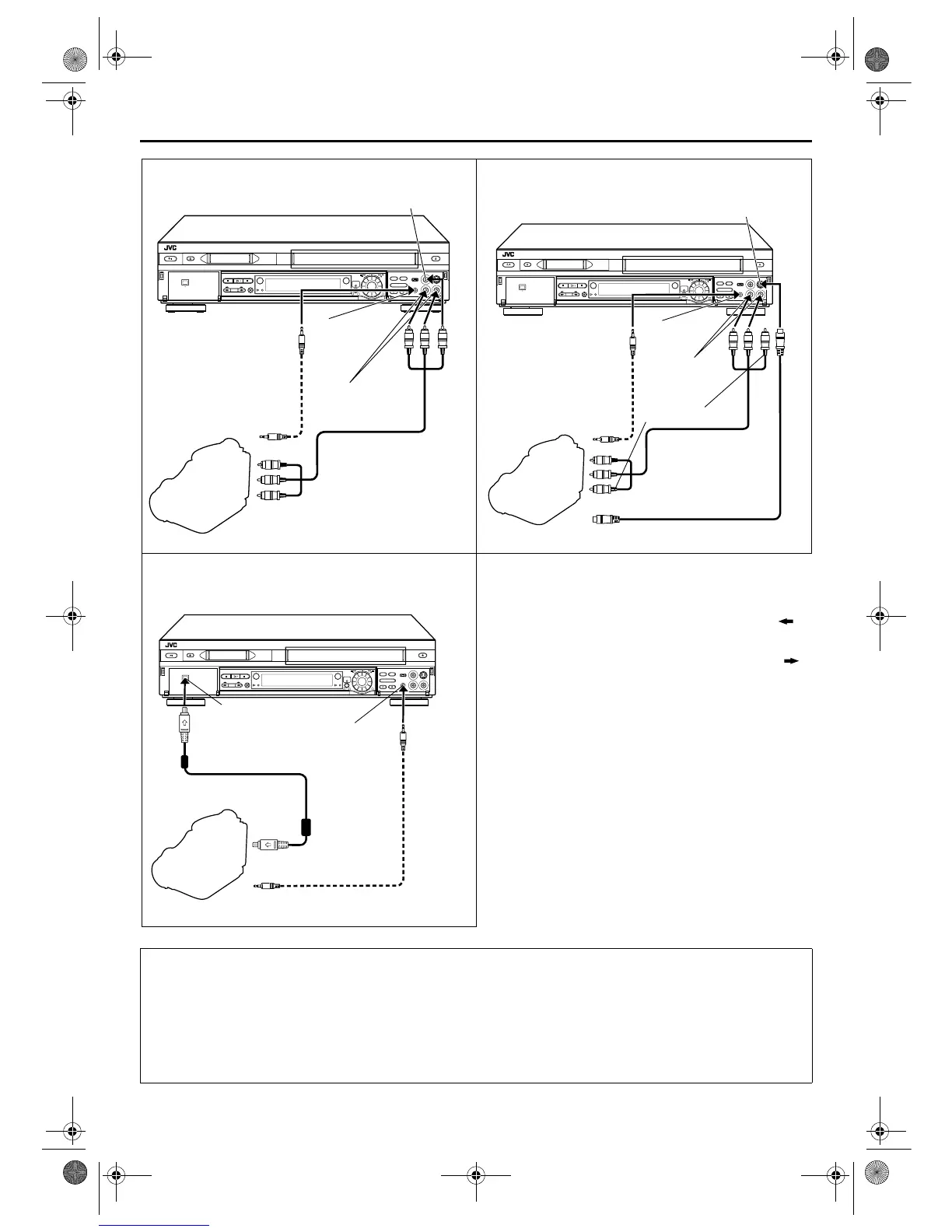

If the camcorder has an S-VIDEO output connector ...
Camcorder
AUDIO input
Player
VIDEO input
EDIT
Audio/Video cable
(supplied)
Mini-plug cable
(not supplied)
(JVC camcorder only)
PAUSE
connector
Recorder
Audio/video cable
(supplied)
AUDIO OUT
Camcorder
S-VIDEO input
Player
AUDIO
input
S-VIDEO OUT
S-Video cable
(supplied)
Mini-plug cable
(not supplied)
(JVC camcorder only)
PAUSE
connector
Recorder
To AUDIO/VIDEO
OUT connector
A
If the camcorder has no S-VIDEO output connector ...
EDIT
C
If the camcorder has a DV IN/OUT connector ...
Camcorder
Player
Mini-plug cable
(not supplied)
(JVC camcorder only)
PAUSE
connector
Recorder
EDIT
DV IN/OUT
DV cable (VC-VDV204)
(not supplied)
DV IN/
OUT
NOTES:
About DV IN/OUT connector
● To output digital signal when dubbing from the VHS deck to
other device through the DV IN/OUT connector, press ,
and then press PLAY (
4
) to start playback on the VHS deck.
● To input digital signal when dubbing from other device to
the VHS deck through the DV IN/OUT connector, press
then S-VHS, and then press REC (
7
) to start recording on the
VHS deck.
● It is possible to control the DV deck from the AVC protocol-
equipped device that is connected to the DV IN/OUT
connector. To control the VHS deck, use the buttons on this
VCR and the Remote.
●
Dubbing is also possible using the rear panel connectors.
●
All necessary cables can be obtained from your dealer.
●
When you select “EDIT” to dub tapes in step
4
, be sure to select
“AUTO” (or “NORM” when “VIDEO CALIBRATION” is set to
“OFF”) after you finish dubbing the tapes.
●
When you are editing through the DV IN/OUT connector, the
VCR will stop if the signal is interrupted.
●
When connecting this VCR to a device equipped with a DV
input connector, be sure to use the optional DV cable
(VC-VDV204).
Yellow:
not connected
