JVC SR-W320U User Manual

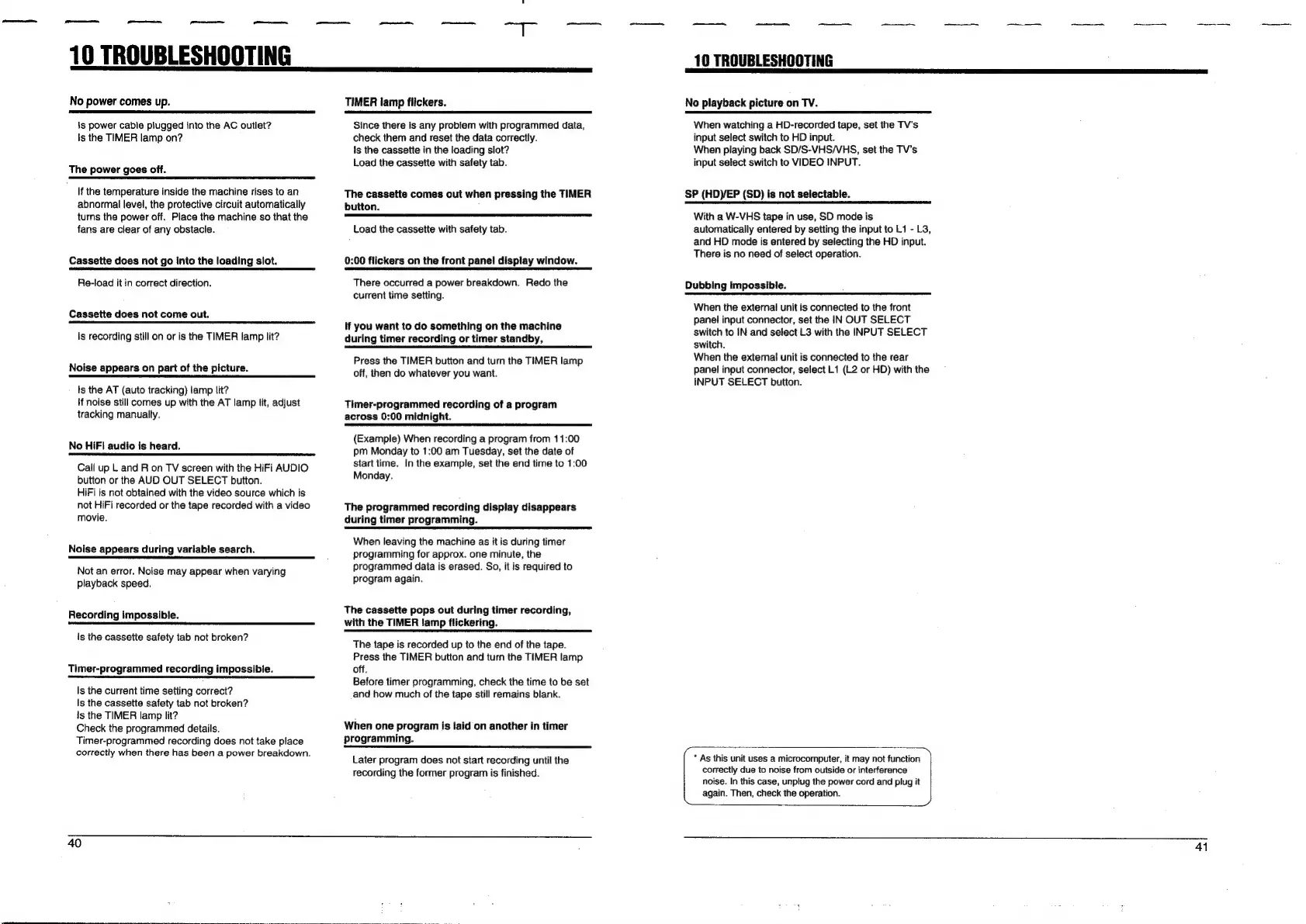

10 TROUBLESHOOTING
No power comes up.
‘s power cable plugged into the AC outlet?
ls the TIMER lamp on?
The power goes off.
If the temperature inside the machine rises to an
abnormal level, the protective circuit automatically
turns the power off. Place the machine so that the
fans are clear of any obstacle.
Cassette does not go into the loading slot.
Re-load it in correct direction.
Cassette does not come out.
Is recording still on or is the TIMER lamp lit?
Noise appears on part of the picture.
Is the AT (auto tracking) lamp lit?
If noise still comes up with the AT lamp lit, adjust
tracking manually.
No HiFI audio is heard.
Call up L and R on TV screen with the HiFi AUDIO
button or the AUD OUT SELECT button.
HiFi is not obtained with the video source which is
not HiFi recorded or the tape recorded with a video
movie.
Noise appears during variable search.
Not an error. Noise may appear when varying
playback speed.
Recording impossible.
's the cassette safety tab not broken?
Timer-programmed recording impossible.
Is the current time setting correct?
Is the cassette safety tab not broken?
Is the TIMER lamp lit?
Check the programmed details.
Timer-programmed recording does not take place
correctly when there has been a power breakdown.
TIMER lamp flickers.
Since there is any problem with programmed data,
check them and reset the data correctly.
\s the cassette in the loading slot?
Load the cassette with safety tab.
The cassette comes out when pressing the TIMER
button.
Load the cassette with safety tab.
0:00 flickers on the front panel display window.
There occurred a power breakdown. Redo the
current time setting.
If you want to do something on the machine
during timer recording or timer standby,
Press the TIMER button and turn the TIMER lamp
off, then do whatever you want.
Timer-programmed recording of a program
across 0:00 midnight.
(Example) When recording a program from 11:00
pm Monday to 1:00 am Tuesday, set the date of
start time. In the example, set the end time to 1:00
Monday.
The programmed recording display disappears
during timer programming.
When leaving the machine as it is during timer
programming for approx. one minute, the
programmed data is erased. So, it is required to
program again.
The cassette pops out during timer recording,
with the TIMER lamp flickering.
The tape is recorded up to the end of the tape.
Press the TIMER button and turn the TIMER lamp
off.
Before timer programming, check the time to be set
and how much of the tape still remains blank.
When one program is laid on another in timer
programming.
Later program does not start recording until the
recording the former program is finished.
10 TROUBLESHOOTING
No playback picture on TV.
When watching a HD-recorded tape, set the TV's
input select switch to HD input.
When playing back SD/S-VHS/VHS, set the TV's
input select switch to VIDEO INPUT.
SP (HD)/EP (SD) is not selectable.
With a W-VHS tape in use, SD mode is
automatically entered by setting the input to L1 - L3,
and HD mode is entered by selecting the HD input.
There is no need of select operation.
Dubbing Impossible.
When the external unit is connected to the front
panel input connector, set the INOUT SELECT
switch to IN and select L3 with the INPUT SELECT
switch.
When the external unit is connected to the rear
panel input connector, select L1 (L2 or HD) with the
INPUT SELECT button.
* As this unit uses a microcomputer, it may not function
correctly due to noise from outside or interference
noise. In this case, unplug the power cord and plug it
again. Then, check the operation.
a

JVC SR-W320U Specifications

General

Brand	JVC
Model	SR-W320U
Category	Cassette Player
Language	English
