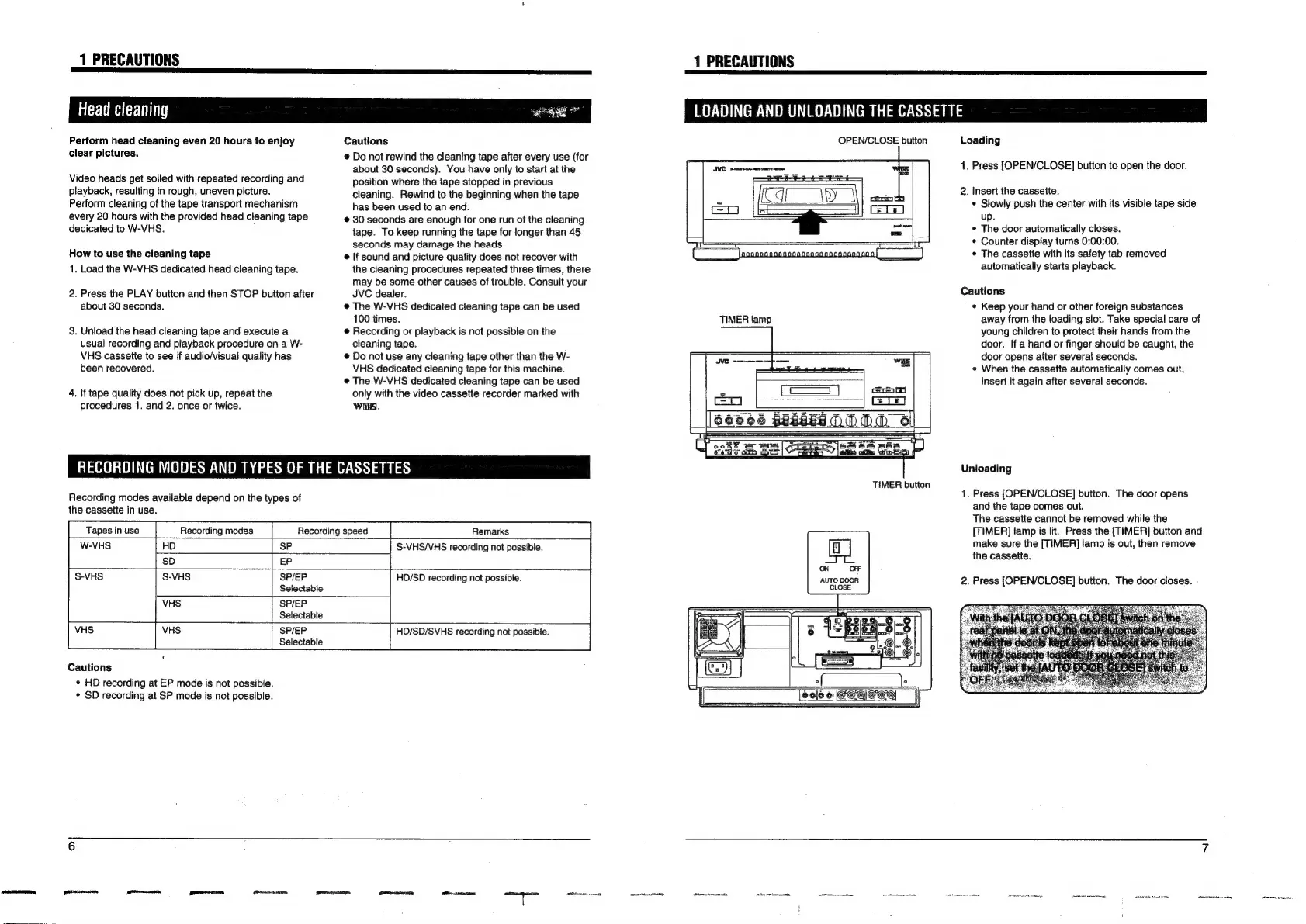

1 PRECAUTIONS
Head cleaning
Perform head cleaning even 20 hours to enjoy
clear pictures.
Video heads get soiled with repeated recording and
playback, resulting in rough, uneven picture.
Perform cleaning of the tape transport mechanism
every 20 hours with the provided head cleaning tape
dedicated to W-VHS. :
How to use the cleaning tape
1. Load the W-VHS dedicated head cleaning tape.
2. Press the PLAY button and then STOP button after
about 30 seconds.
Aad
Unload the head cleaning tape and execute a
usual recording and playback procedure on a W-
VHS cassette to see if audio/visual quality has
been recovered.
4, If tape quality does not pick up, repeat the
procedures 1. and 2. once or twice.
Cautions
@ Do not rewind the cleaning tape after every use (for
about 30 seconds). You have only to start at the
position where the tape stopped in previous
cleaning. Rewind to the beginning when the tape
has been used to an end.
@ 30 seconds are enough for one run of the cleaning
tape. To keep running the tape for longer than 45
seconds may damage the heads.
@ If sound and picture quality does not recover with
the cleaning procedures repeated three times, there
may be some other causes of trouble. Consult your
JVC dealer.
®@ The W-VHS dedicated cleaning tape can be used
100 times.
@ Recording or playback is not possible on the
cleaning tape.
@ Do not use any cleaning tape other than the W-
VHS dedicated cleaning tape for this machine.
®@ The W-VHS dedicated cleaning tape can be used
only with the video cassette recorder marked with
wh.
RECORDING MODES AND TYPES OF THE CASSETTES
Recording modes available depend on the types of
the cassette in use.
Tapes in use iZ Recording modes
Recording speed Remarks
W-VHS HD SP
S-VHS/VHS recording not possible.
SD EP
S-VHS SP/EP
Selectable
HD/SD recording not possible.
SP/EP
Selectable
SP/EP
Selectable
Cautions
* HD recording at EP mode is not possible.
* SD recording at SP mode is not possible.
HD/SD/SVHS recording not possible.
eZ end Perea erate ohn Pee eweccten evenmenecsen tn canes ae asi re’
1 PRECAUTIONS
LOADING AND U ING THE CASSETT
OPEN/CLOSE button
TIMER tamp
TIMER button
Loading
1. Press [OPEN/CLOSE] button to open the door.
2. Insert the cassette.
« Slowly push the center with its visible tape side
up.
© The door automatically closes.
* Counter display turns 0:00:00.
¢ The cassette with its safety tab removed
automatically starts playback.
Cautions
¢ Keep your hand or other foreign substances
away from the loading slot. Take special care of
young children to protect their hands from the
door. If a hand or finger should be caught, the
door opens after several seconds.
« When the cassette automatically comes out,
insert it again after several seconds.
Unloading
1. Press [OPEN/CLOSE] button. The door opens
and the tape comes out.
The cassette cannot be removed while the
[TIMER] tamp is lit. Press the [TIMER] button and
make sure the [TIMER] lamp is out, then remove
the cassette.
2. Press [OPEN/CLOSE] button. The door closes.
ements eon tancating oleate a
