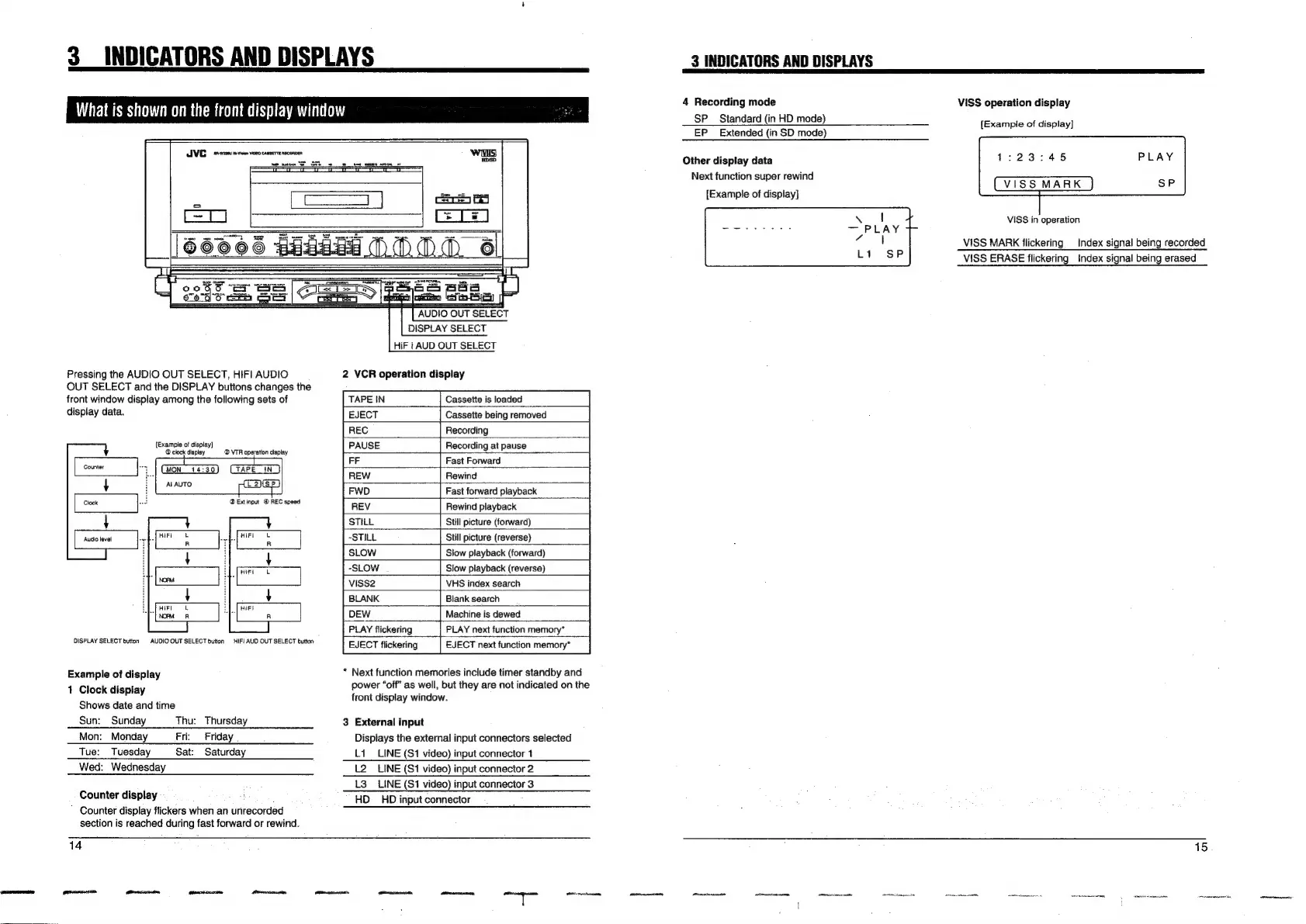

3__ INDICATORS AND DISPLAYS
What is shown on the front display window
SVE sev 220 ven veo casserre neconpen
+ 4 3
SQQHOGD SG
Pressing the AUDIO OUT SELECT, HIFI AUDIO
OUT SELECT and the DISPLAY buttons changes the
front window display among the following sets of
display data.
[Example of display]
® clock display @ VTR operation display
Audio leval | ov
Con 14:30) (TAPE IN
@ Extinput @ REC speed
DISPLAY SELECT
HiF t AUD OUT SELECT
2 VCR operation display
TAPE IN Cassette is loaded
EJECT Cassette being removed
REC Recording
PAUSE Recording at pause
FF Fast Forward
REW Rewind
FWD Fast forward playback
REV Rewind playback
STILL Still picture (forward)
-STILL | Still picture (reverse)
SLOW Slow playback (forward)
-SLOW Slow playback (reverse)
vISS2 VHS index search
BLANK Blank search
DEW Machine is dewed
DISPLAY SELECT button AUDIO OUT SELECT button HIF) AUD OUT SELECT button
Example of display
1 Clock display
Shows date and time
Sun: Sunday Thu: Thursday
Mon: Monday Fri: Friday
Tue: Tuesday Sat: Saturday
Wed: Wednesday
Counter display
* Counter display flickers when an unrecorded
section is reached during fast forward or rewind.
PLAY flickering
EJECT flickering
| PLAY next function memory*
EJECT next function memory*
* Next function memories include timer standby and
power “off” as well, but they are not indicated on the
front display window.
3 External input
Displays the external input connectors selected
Li LINE (S1 video) input connector 1
L2 LINE (S1 video) input connector 2
L3 LINE (Si video) input connector 3
HD HD input connector
14
ead rercanewtein remncesnston erastoccoe Proven, sanctions seemarsmmate emcee, a a semen
3 INDICATORS AND DISPLAYS
4 Recording mode
SP Standard (in HD mode)
EP Extended (in SD mode)
Other display data
Next function super rewind
[Example of display]
VISS operation display
[Example of display]
VISS MARK
VISS in operation
VISS MARK flickering Index signal being recorded
VISS ERASE flickering Index signal being erased
15
