JVC SR-W320U User Manual

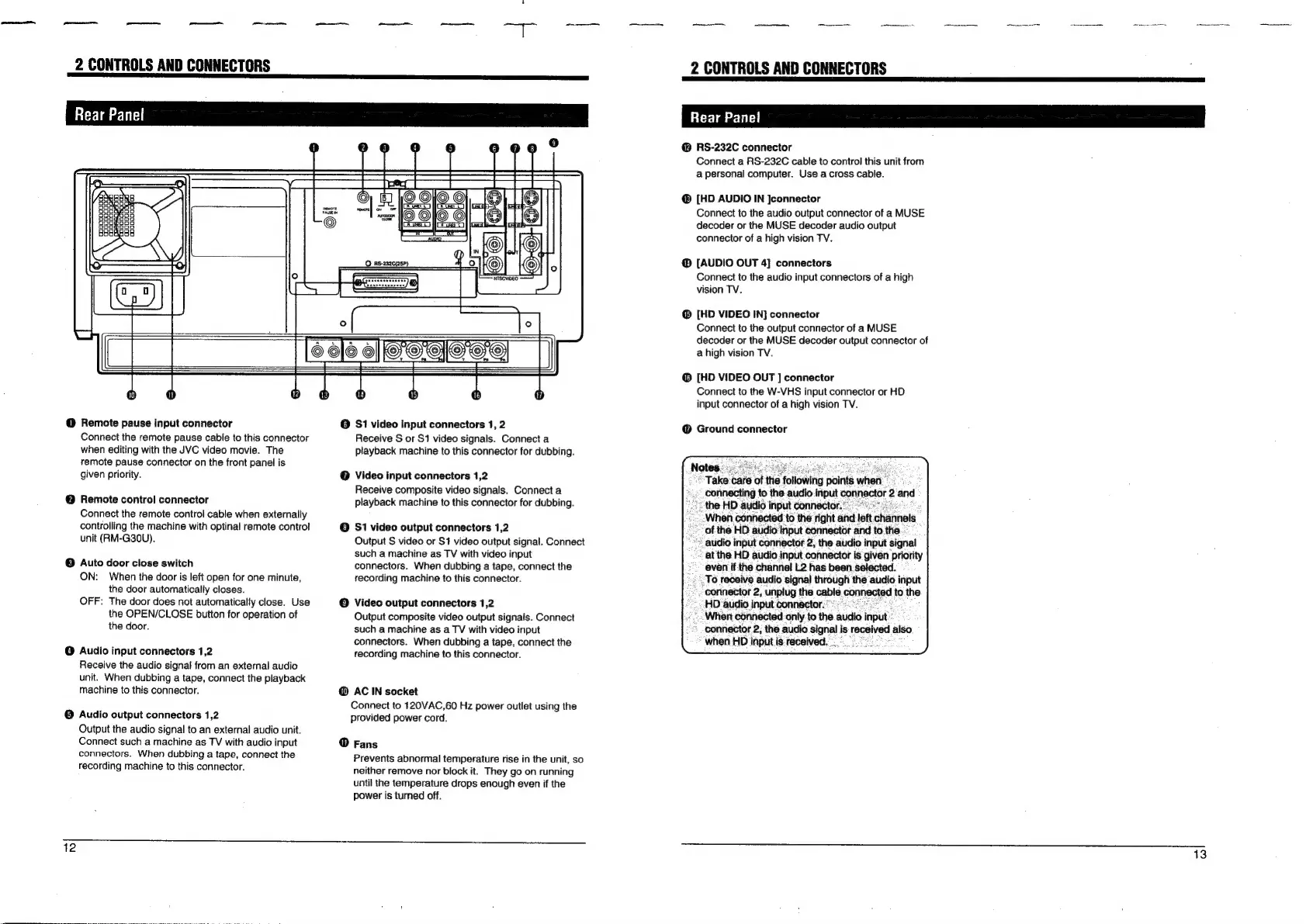

2 CONTROLS AND CONNECTORS
Rear Panel
@ Remote pause input connector
Connect the remote pause cable to this connector
when editing with the JVC video movie. The
remote pause connector on the front panel is
given priority.
@ Remote control connector
Connect the remote control cable when externally
controlling the machine with optinal remote control
unit (RM-G30U).
@ Auto door close switch
ON: When the door is left open for one minute,
the door automatically closes.
OFF: The door does not automatically close. Use
the OPEN/CLOSE button for operation of
the door.
© Audio input connectors 1,2
Receive the audio signal from an external audio
unit. When dubbing a tape, connect the playback
machine to this connector.
@ Audio output connectors 1,2
Output the audio signal to an external audio unit.
Connect such a machine as TV with audio input
connectors. When dubbing a tape, connect the
recording machine to this connector.
12
© S1 video input connectors 1, 2
Receive S or S1 video signals. Connect a
playback machine to this connector for dubbing.
@ Video input connectors 1,2
Receive composite video signals. Connect a
playback machine to this connector for dubbing.
© S1 video output connectors 1,2
Output S video or S1 video output signal. Connect
such a machine as TV with video input
connectors. When dubbing a tape, connect the
recording machine to this connector.
© Video output connectors 1,2
Output composite video output signals. Connect
such a machine as a TV with video input
connectors. When dubbing a tape, connect the
recording machine to this connector.
@ AC IN socket
Connect to 120VAC,60 Hz power outlet using the
provided power cord.
® Fans
Prevents abnormal temperature rise in the unit, so
neither remove nor block it. They go on running
until the temperature drops enough even if the
power is turned off.
2 CONTROLS AND CONNECTORS
a
Rear Panel
@ RS-232C connector
Connect a RS-232C cable to control this unit from
a personal computer. Use a cross cable.
@® [HD AUDIO IN Jconnector
Connect to the audio output connector of a MUSE
decoder or the MUSE decoder audio output
connector of a high vision TV.
@ [AUDIO OUT 4] connectors
Connect to the audio input connectors of a high
vision TV.
@® [HD VIDEO IN} connector
Connect to the output connector of a MUSE
decoder or the MUSE decoder output connector of
a high vision TV.
@® [HD VIDEO OUT ] connector
Connect to the W-VHS input connector or HD
input connector of a high vision TV.
@® Ground connector
a Take care of the following points werier
“connecting to the audio input epaector 2 and.
“:s- the HD audio input connector.::
. 2: When connected to the right ahd lett channels
‘ofthe HD audio input connector and to the
“= audio input connector 2, the audio input signal
= at the HD audio input connector is given priority
~~ even if the channel L2 has been. selected.
=: TO receive audio signal through the audio input
=. eonnettor 2, unplug the cable. connectad to the
~=/HD audio input connector.’
2. When connected only to the audio input
* .eonnector 2; the audio aa is received also
when HD input is received.
13
