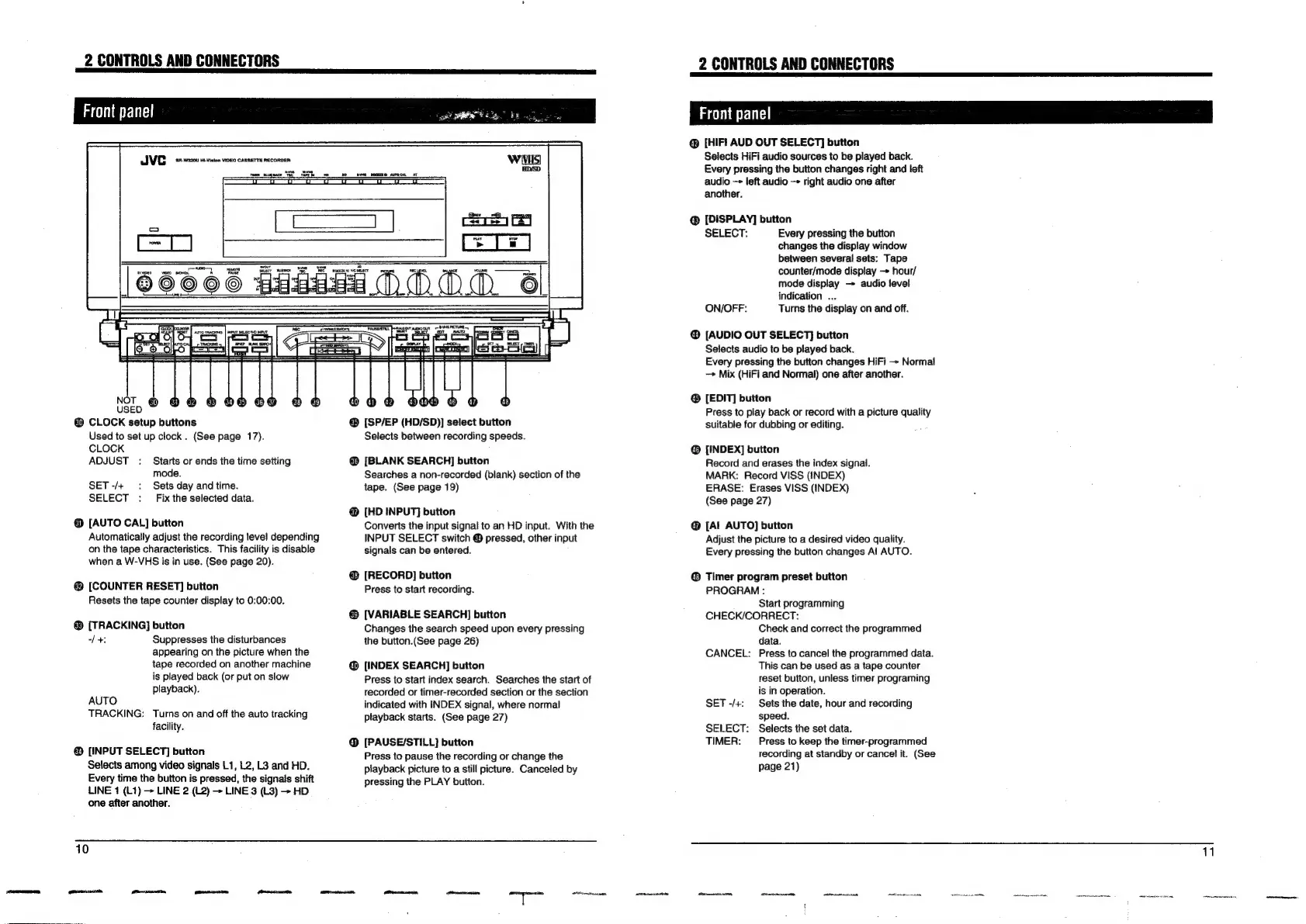

2 CONTROLS AND CONNECTORS
Front panel
VG srwecou vision vireo casserre neconven
os ees
teem sunmce "ETO
@ CLOCK setup buttons
Used to set up clock . (See page 17).
CLOCK
ADJUST Starts or ends the time setting
mode.
SET -/+ Sets day and time.
SELECT Fix the selected data.
@ [AUTO CAL] button
Automatically adjust the recording level depending
on the tape characteristics. This facility is disable
when a W-VHS is in use. (See page 20).
@ [COUNTER RESET] button
Resets the tape counter display to 0:00:00.
@® [TRACKING] button
++ Suppresses the disturbances
appearing on the picture when the
tape recorded on another machine
is played back (or put on slow
playback).
AUTO
TRACKING: Turns on and off the auto tracking
facility.
@ [INPUT SELECT] button
Selects among video signals L1, L2, L3 and HD.
Every time the button is pressed, the signals shift
LINE 1 (L1) > LINE 2 (L2) > LINE 3 (L3) > HD
one after another.
10
re
® [SP/EP (HD/SD)] select button
Selects between recording speeds.
® [BLANK SEARCH] button
Searches a non-recorded (blank) section of the
tape. (See page 19)
@ [HD INPUT] button
Converts the input signal to an HD input. With the
INPUT SELECT switch ® pressed, other input
signals can be entered.
@® [RECORD] button
Press to start recording.
® [VARIABLE SEARCH] button
Changes the search speed upon every pressing
the button.(See page 26)
@ [INDEX SEARCH] button
Press to start index search. Searches the start of
recorded or timer-recorded section or the section
indicated with INDEX signal, where normal
playback starts. (See page 27)
@ [PAUSE/STILL] button
Press to pause the recording or change the
piayback picture to a still picture. Canceled by
pressing the PLAY button.
2 CONTROLS AND CONNECTORS
Front panel
@ [HIF! AUD OUT SELECT] button
Selects HiFi audio sources to be played back.
Every pressing the button changes right and left
audio -> left audio —> right audio one after
another.
@ [DISPLAY] button
SELECT: Every pressing the button
changes the display window
between several sets: Tape
counter/mode display —> hour/
mode display — audio level
indication ...
ON/OFF: Turns the display on and off.
@ [AUDIO OUT SELECT] button
Selects audio to be played back.
Every pressing the button changes HiFi -> Normal
-» Mix (HiFi and Normal) one after another.
@® [EDIT] button
Press to play back or record with a picture quality
suitable for dubbing or editing.
@® [INDEX] button
Record and erases the index signal.
MARK: Record VISS (INDEX)
ERASE: Erases VISS (INDEX)
(See page 27)
@ [Al AUTO] button
Adjust the picture to a desired video quality.
Every pressing the button changes Al AUTO.
@® Timer program preset button
PROGRAM :
Start programming
CHECK/CORRECT:
Check and correct the programmed
data.
CANCEL: Press to cancel the programmed data.
This can be used as a tape counter
reset button, unless timer programing
is in operation.
Sets the date, hour and recording
speed.
SELECT: Selects the set data.
SET -/+:
TIMER: Press to keep the timer-programmed
recording at standby or cancel it. (See
page 21)
