@ [POWER] button/lamp
Press to turn the power on and off. The lamp
lights when the power is on.
@ Tape loading slot door
© Video unit display window
Displays the operational state of the recorder,
counter and clock digits.
@ [TIMER] lamp
Lights red when the timer preset recording stands
by.
@ [BLUE BACK] lamp
Lights green when the BLUE BACK switch is at
AUTO.
@ [S-VHS TBC] lamp
Lights green when the S-VHS TBC switch is at
ON.
@ [W-VHS TAPE IN] lamp
Lights red when the W-VHS tape is in the
recorder.
© [HD] tamp
Lights red when HD mode is selected with a W-
VHS tape in use or when a HD-recorded tape is
played back.
© [SD] lamp
Lights green when SD mode is selected with a W-
VHS tape in use or when a SD-recorded tape is
played back.
@® [S-VHS] lamp
Lights green when the S-VHS recording switch is
at AUTO with an S-VHS tape in use or when an S-
VHS recorded tape is played back.
@ [SQUEEZE ID] lamp
Lights when
* the SQUEEZE ID switch is at AUTO and S1
signal is fed to the external input signal
connector.
* the tape recorded in full mode is played back,
provided that the S1 video signal is recorded
together.
¢ the SQUEEZE ID switch is set at ON.
Full Mode. 4 a
Entered to fit the pi spect ratio of 16
29, such as high-vision picture,-within aspect
2 fatio of 4:3, feeulting in in a verically eet
“picture, ">"
Si Picture Signal
> Signal for discriminating whether. or not the.
_ Picture i is in full mode superimposed onthe S
hoftzontally wide picture when played back.

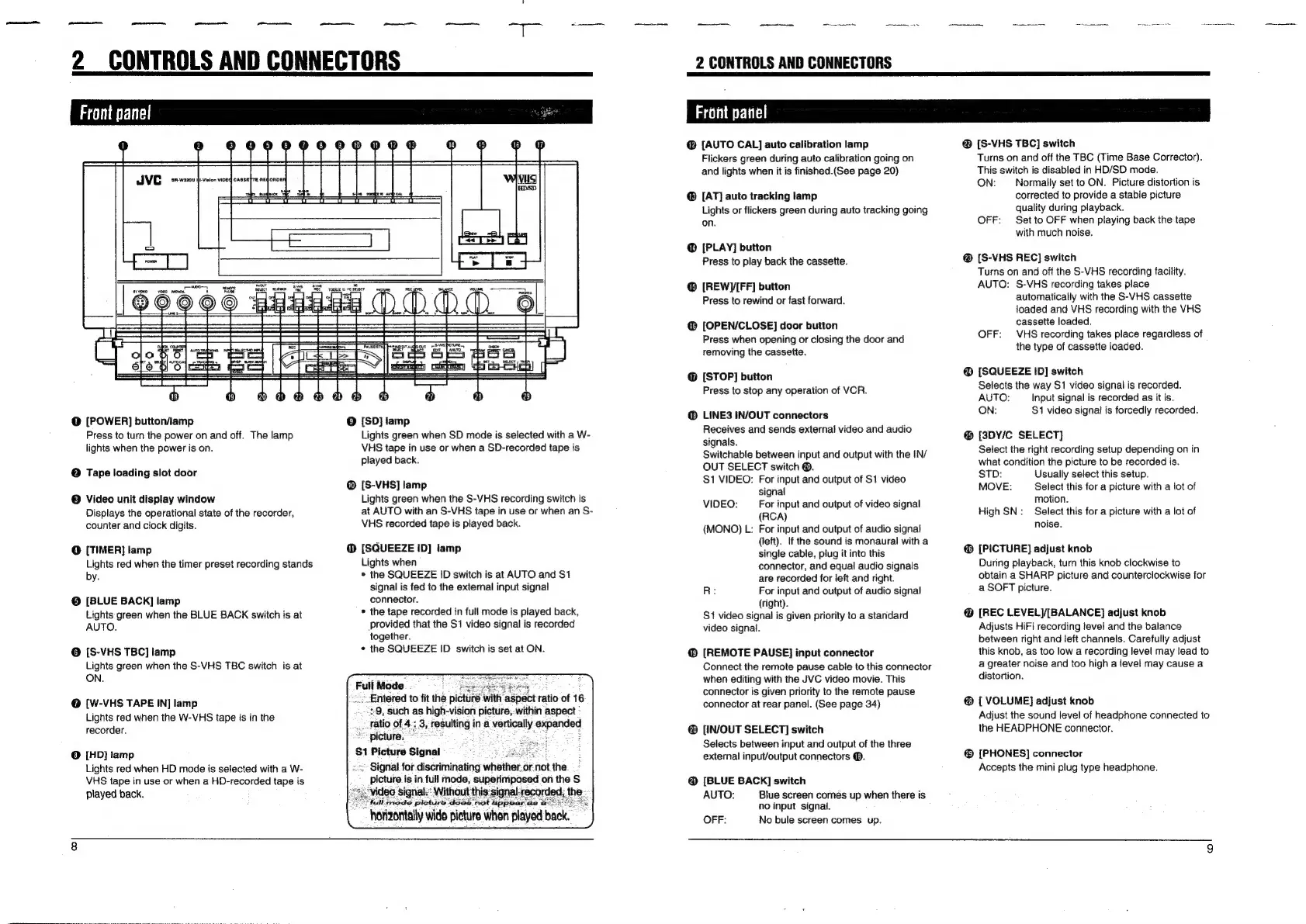

2 CONTROLS AND CONNECTORS
Front panel
@ [AUTO CAL] auto calibration lamp
Flickers green during auto calibration going on
and lights when it is finished.(See page 20)
® [AT] auto tracking lamp
Lights or flickers green during auto tracking going
on.
@® [PLAY] button
Press to play back the cassette.
® [REW})/[FF] button
Press to rewind or fast forward.
@ [OPEN/CLOSE] door button
Press when opening or closing the door and
removing the cassette.
@ [STOP] button
Press to stop any operation of VCR.
@® LINE3 IN/OUT connectors
Receives and sends external video and audio
signals.
Switchable between input and output with the IN/
OUT SELECT switch @.
S1 VIDEO: For input and output of S1 video
signal
VIDEO: For input and output of video signal
(RCA)
(MONO) L: For input and output of audio signal
(left). If the sound is monaural with a
single cable, plug it into this
connector, and equal audio signals
are recorded for teft and right.
R: For input and output of audio signal
(right).
St video signal is given priority to a standard
video signal.
@® [REMOTE PAUSE] input connector
Connect the remote pause cable to this connector
when editing with the JVC video movie. This
connector is given priority to the remote pause
connector at rear panel. (See page 34)
@ [IN/OUT SELECT] switch
Selects between input and output of the three
external input/output connectors ®.
@ [BLUE BACK] switch
AUTO: Blue screen comes up when there is
no input signal.
OFF: No bule screen comes up.
@ [S-VHS TBC] switch
Turns on and off the TBC (Time Base Corrector).
This switch is disabled in HD/SD mode.
ON: Normally set to ON. Picture distortion is
corrected to provide a stable picture
quality during playback.
OFF: Set to OFF when playing back the tape
with much noise.
® [S-VHS REC] switch
Turns on and off the S-VHS recording facility.
AUTO: S-VHS recording takes place
automatically with the S-VHS cassette
loaded and VHS recording with the VHS
cassette loaded.
OFF: VHS recording takes place regardless of
the type of cassette loaded.
@® [SQUEEZE ID] switch
Selects the way S1 video signal is recorded.
AUTO: Input signal is recorded as it is.
ON: S1 video signal is forcedly recorded.
@® [3DY/C SELECT]
Select the right recording setup depending on in
what condition the picture to be recorded is.
STD: Usually select this setup.
MOVE: Select this for a picture with a lot of
motion.
High SN: Select this for a picture with a lot of
noise.
@® [PICTURE] adjust knob
During playback, turn this knob clockwise to
obtain a SHARP picture and counterclockwise for
a SOFT picture.
@ [REC LEVEL}/[BALANCE] adjust knob
Adjusts HiFi recording level and the balance
between right and left channels. Carefully adjust
this knob, as too low a recording level may lead to
a greater noise and too high a jevel may cause a
distortion.
® [ VOLUME] adjust knob
Adjust the sound level of headphone connected to
the HEADPHONE connector.
@® [PHONES] connector
Accepts the mini plug type headphone.
