7.2 Commissioning
7.2.1 Indicator LED’s - description.
The LED's are used for indicating states and faults of module. There is one power LED,
two link/activity LED's (one for each Ethernet connector) and 2 status LED's.
LED indicator descriptions - Covers both MAC and MIS/MIL.
LED Text
MAC / MIx
Off Red Orange Green Flickering
Green
Very slow
blinking green
L/A IN /
L2
No valid Ethernet
connection
- - Ethernet is
connected
-
L/A OUT /
L3
No valid Ethernet
connection
- - Ethernet is
connected
-
RUN /
L1 -
Initializing
or no valid
Ethernet
TCP server
open for
connections
TCP client
connected
- Wrong constel-
lation of IP, NM,
and GW
ERROR /
ERR No Errors Fatal error - - -
PWR Power is not
applied
- -
Power is
applied to
both motor
and module.
Power is
applied to
module but
no communi
-
cation with
motor.
Notes:
Flickering: Rapid flashing with a period of approx. 50ms(10Hz).
TT3059-02GB
Hardware serial number

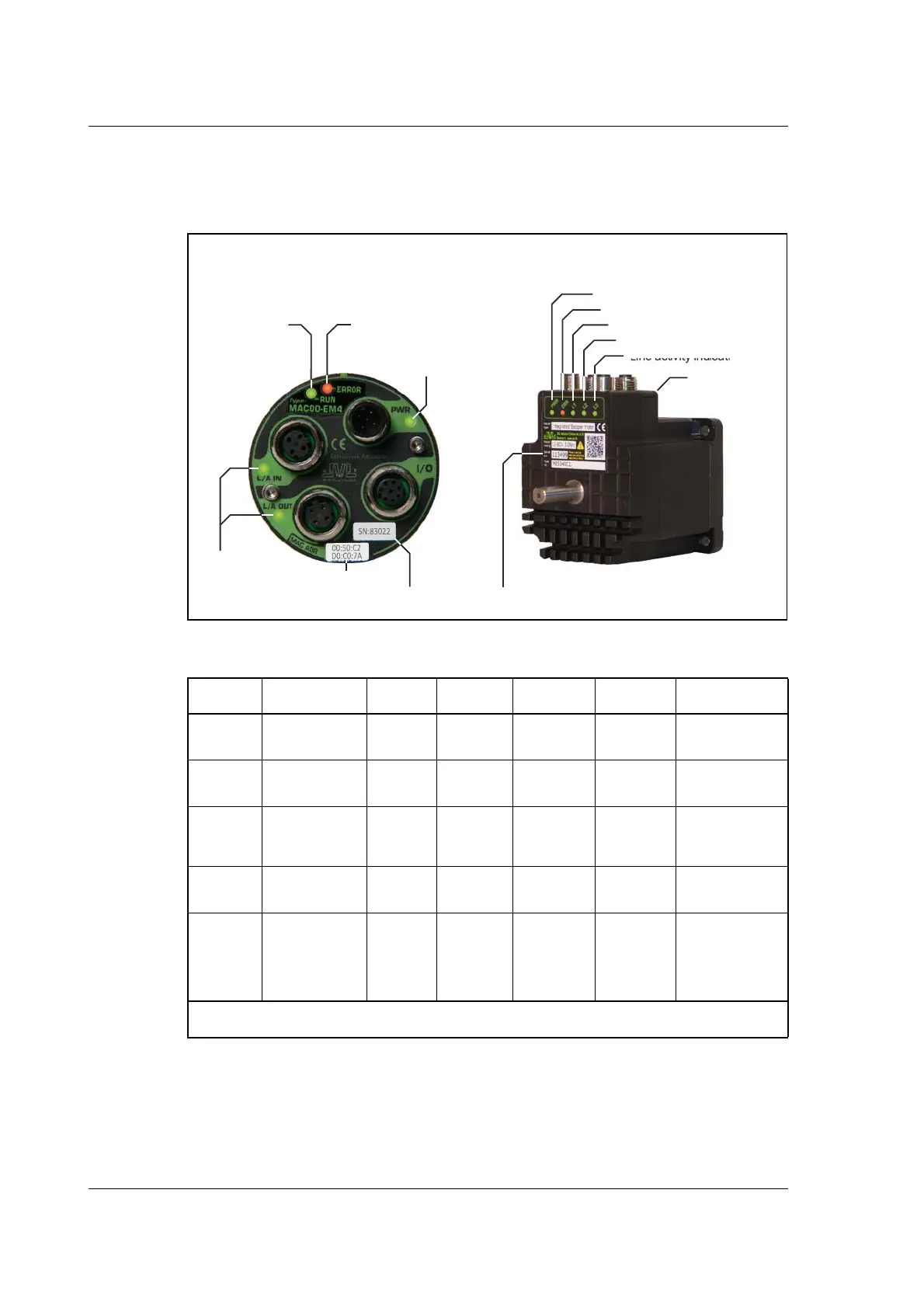

MAC Module Indicators
and label overview
MIS Motor Indicators
and label overview
Line activity
indicators
Error indicator
Power indicator
Line activity indicator (CN2)
Line activity indicator (CN3)
Error indicator
General status
indicator
Power
indicator
Hardware serial number
MAC address
