8 JVL Industri Elektronik A/S - User Manual - Ethernet expansion modules for MAC motors
1.1 Introduction
Industrial Ethernet is becoming more and more
popular as it offers
• Very fast response time
• Predictable delay times (deterministic protocol)
• Safe transmission of data
Compared with most of the “classic” non Ether-
net based protocols the indstrial Ethernet offers
state of the art performance.
The MAC00-Ex4/-Ex41 (Ethernet module for
MAC motors) and MIS/MILxxxxxxExxxxxx (MIS/
MIL motors with Ethernet option) can be config
-
ured by the end user to a number of different
Ethernet protocols, for instance
• EtherCAT
®
• EtherNetIP
®
• Ethernet POWERLINK
®
• PROFINET IO
®
• Modbus TCP/IP
®
• Sercos
®
• And more to come
Main Features:
• High speed communication - 100Mbits/sec.
• 2 individual ports on the module offers Daisy
chaining possibility.
• Standard M12 circular industrial connectors
• MAC motor module MAC00-Ex4: 1
Digital
input (24V) and 1 digital output (24V) for lo
-
cal use around the motor
• MAC motor module MAC00-Ex41: 4
Digital
input (24V) and 2 digital outputs (24V) for
local use around the motor
• MIS/MIL motor with Ethernet option offers 8
digital I/O’s. Each I/O terminal can also be an
analog input
• Multiple alternative I/O possibilities available
on request (OEM applications)
• LED’s for easy monitoring of operation sta-
tus
• Optional encoder I/O
• Rough design
• Access to all internal motor parameters and
registers possible. No need of pre-setup of
the motor.
• RS232 connection available for monitoring
and setup use for the MAC00-Ex4/-Ex41
modules.
• RS485 connection available for monitoring
and setup use for the MIS/MILxxxxxxExxxx
motor.

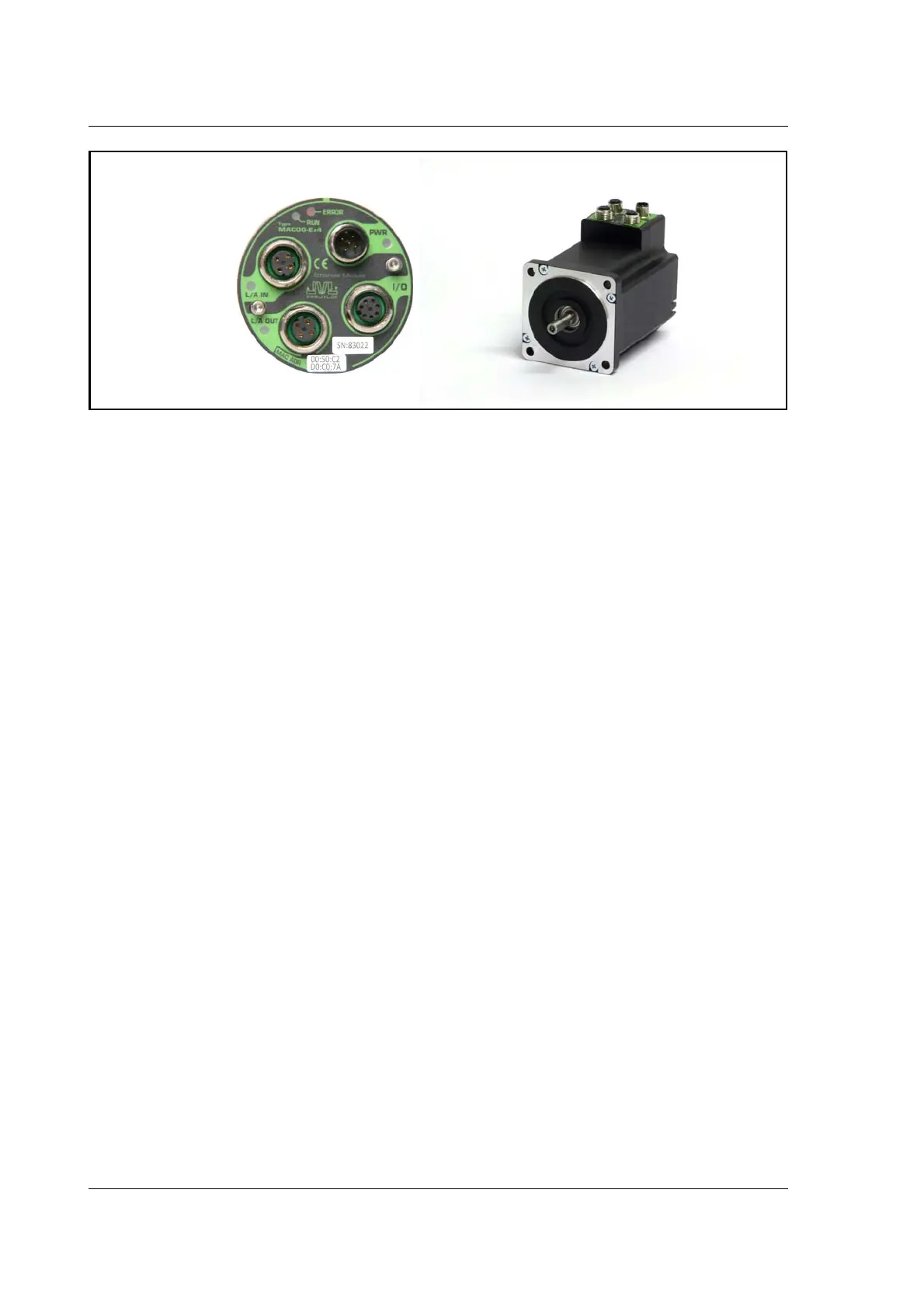

TT3001-02GB
MAC family
Ethernet for servos
MIS family
Ethernet for steppers
