Note: To remove the outside lever/knob from
the outside unit assembly, follow step below.

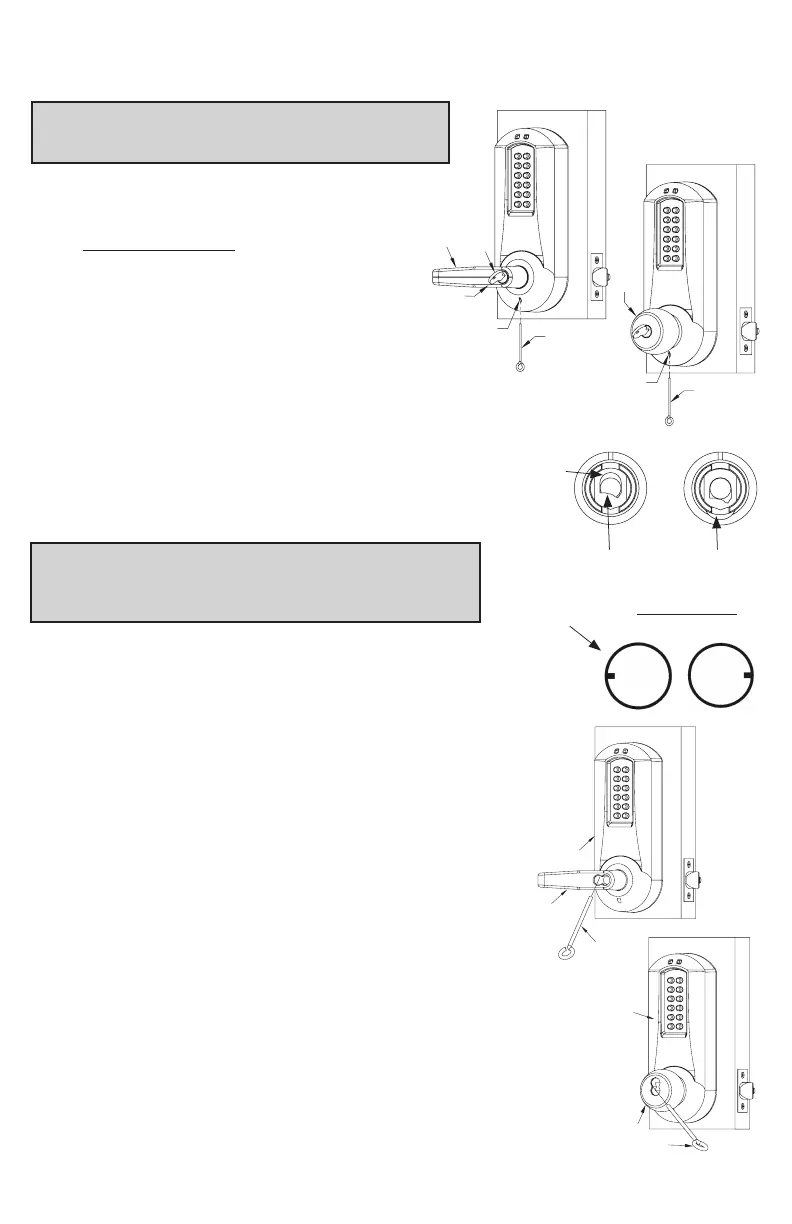

H-4 Insert one of the (supplied) keys (a) into
the outside lever/knob (b) and rotate it
counterclockwise 45 degrees. Insert
release tool (d) into the small hole (e)
under lever/knob as shown. Gently
push lever catch up until it clicks.
Remove tool (d), then remove outside
lever/knob (b).
I. INSTALLING / REMOVING OUTSIDE
LEVER/KNOB
(Interchangeable / Removable Core Models)
Note: Installing lever/knob to the unit assemblies
before mounting the unit assemblies may ease
initial installation.
I-1 Make certain the lever catch is up as shown in the
image (c). The lever catch should be flush around
the entire diameter of the outside driver. Make certain
the lever sleeve (f) is rotated to properly mate with
the outside lever.
I-2 Insert the outside lever/knob (a) unit it is flush
to the outside unit assembly (b) (levers fit closer
than knobs). To secure the outside lever/knob,
insert the release tool (d) (or screwdriver) into
the outside lever/knob as shown, and slide the
lever catch down until it clicks. Make certain
lever/knob is locked on.
b
b
a
a
d
d
a
e
e
b
b
45º
d
d
IC Lever Sleeve
RH
LH
f
c
Correct
Position
Incorrect
Position
