A. DOOR PREPARATION

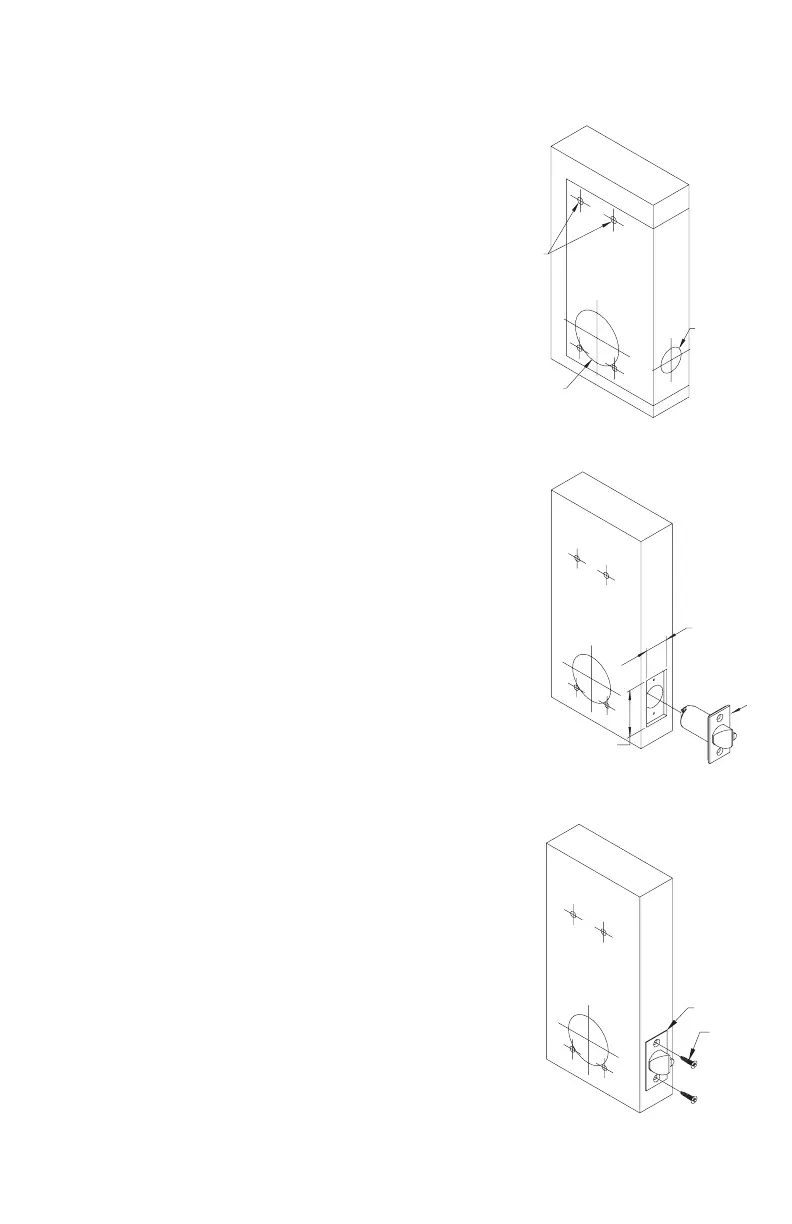

A-1 Place paper template (supplied) onto door and
mark for holes. Drill the four
1
⁄4” (7 mm) holes first.
Next drill the 2
1
⁄8” (54 mm) cross bore hole. Drill
the 1” (25 mm) hole last.
A-2 Mortise door edge for latch unit faceplate (c)
1
⁄8” (3 mm) deep to dimensions shown. Insert
latch unit (a) into the 1” (25 mm) hole, making
certain that the latch bolt bevel faces direction
of closing door.
A-3 Secure the latch to the door using two
3
⁄4”
(19 mm) combination screws (b) supplied.
Latch unit faceplate must be flush with
door (c).
1”
2
1
⁄8”
1
1
⁄8”
2
1
⁄4”
a
c
b
4x
1
⁄4”
