22

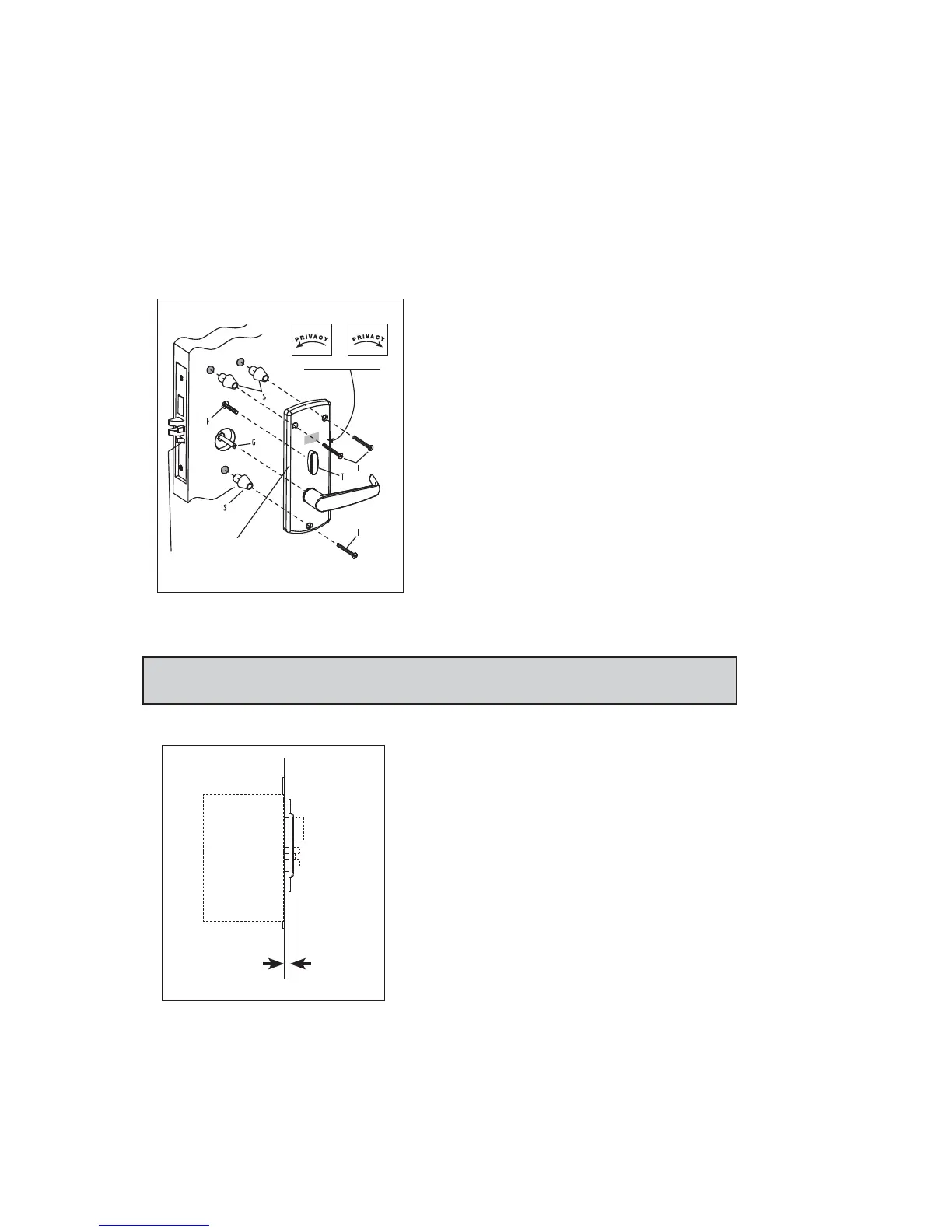

Place 3 spacers (S) on the door (for recent models only). Place the inside trim assem-
bly on the door so that the upper and lower spindles (F) and (G) engage the thumb-
turn and the inside lever. Fasten to the outside housing using the three 1/8" hex head
mounting screws (I).
Apply the privacy thumbturn sticker as shown. If in doubt as to the direction of the
arrow, press the auxiliary latch (X) to extend the deadbolt, and verify in which direc-
tion to rotate the thumbturn to reach the horizontal (privacy) position.
Note: For Auto Deadbolt models the gap between the mortise front plate and the
strike must not exceed 1/4 “
Turn Knob Vertical
RH/LHR LH/RHR
X
Door Door Frame
Mortise
Max.
1
/4"
To Next Page
