C. EXIT TRIM
C-1. CHECKLIST FOR PRECISION EXIT DEVICES 21/22/
FL21/FL22 VON DUPRIN 98/99EO-F/9827/9927
EO- F/9875/9975
** DETEX 10/F10/20/F20/V40
DORMA F9300
ARROW S1908/S3908/S1708/S3708/S1808/S3808/S3888
YALE 7100/7160/7170
32

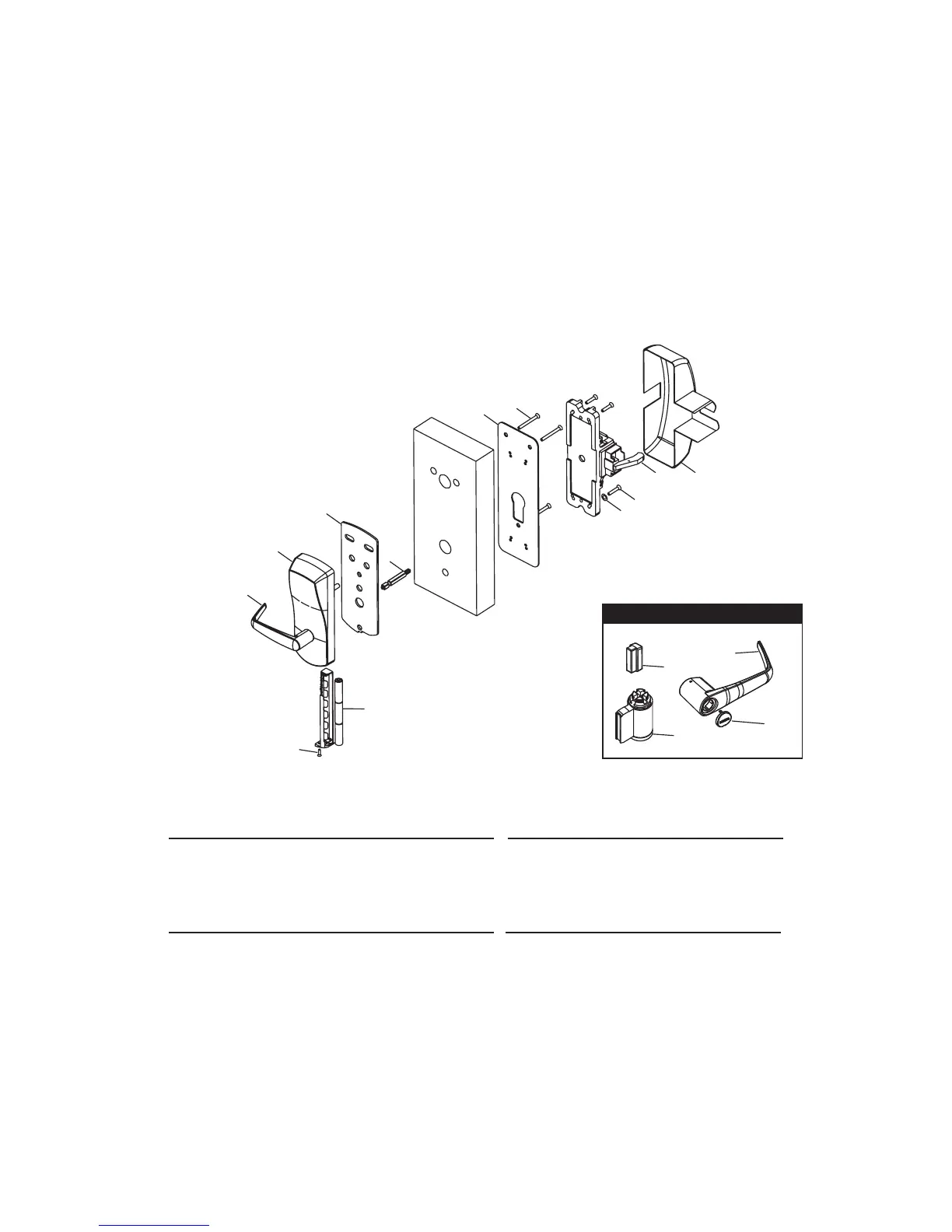

(A) Outside lever handle
(B) Outside housing
(C) Gasket (when required)
(J) Battery holder with 3 AA batteries
Parts inside hardware bag:
(D) 1 x Spindle except for the following Exit Device which have 3:
Detex F10, Dorma F9300 and Precision21/22/FL21/FL22
(E) 1 x Inside Adaptor Plate
(F) 3 x Mounting Screw 12-24
1
/8” Hex
(H) 2 x Pan Head Screws
1
/4” 28 X
3
/4” for Yale
2 or 4 Pan Head Screws 10-24 X
3
/4” for Detex, Dorma,
Von Duprin or 4 Flat Head screw 10-24 X
5
/8” for Precision,
Arrow
(K)
(Q) 2 or 4 Flat Washer 1/2 OD for Detex Exit Device Only
Tools Required:
Safety glasses
5
/16” (7.9mm) drill bit
1
/2” (13mm) drill bit
1” (25mm) drill bit or hole saw
Drill
Awl or center punch
Hammer
Rubber mallet
Small flat screwdriver
Philips #2 screwdriver
Spanner screwdriver (No 6)
1
/8” Allen key
Adjustable square
Tape measure
Pencil
Tape
Cleaning supplies
(drop cloth, vacuum)
Mechanical Override Models ONLY:
(L) Cylinder Cap
(M) Cylinder Plug
(N) Outside Lever Handle
(P) Cylinder (for 630 series lock with cylinders keyed
different ONLY)
1 x Pan Head Screw
Each lockset includes:
Mechanical Override Models ONLY
A
K
B
C
D
Q
H
G
G
E
F
L
J
P
M
N
(Not for PowerStar Versions)
(Not for PowerStar Versions)
** Detex 10 & 20 and V40 Series are Panic Hardware only. (Not fire rated)
Detex F10 & F20 Series are Fire Exit Hardware (Fire Rated)
