36

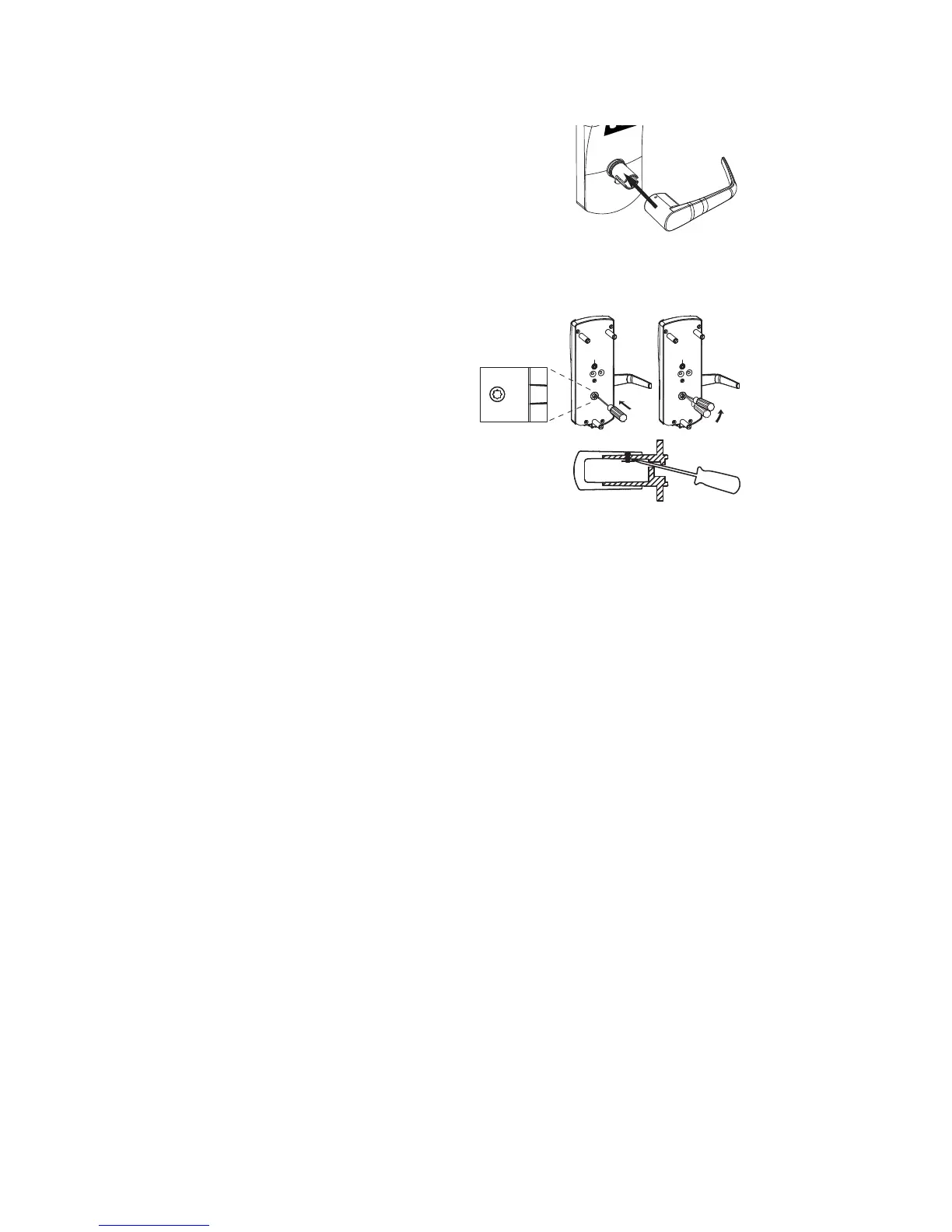

D. INSTALLING OUTSIDE LEVER ON
NON-MECHANICAL OVERRIDE
Assemble the lever on the outside housing in the hori-
zontal rest position appropriate to the handing of the
door. Simply push the lever onto the tube until it clicks
in place. If more force is required, use a rubber mallet. Test the attachment of
the handle by pulling on it to make sure it is securely fastened.
E. REVERSING THE OUTSIDE LEVER
FOR SERIES WITHOUT
MECHANICAL OVERRIDE
The lever is field reversible. If the handing
is incorrect, insert a small pick or flat
screwdriver in the hole in the hub as shown. Gently
pry back the spring clip inside the hub, and remove
the handle.
