21

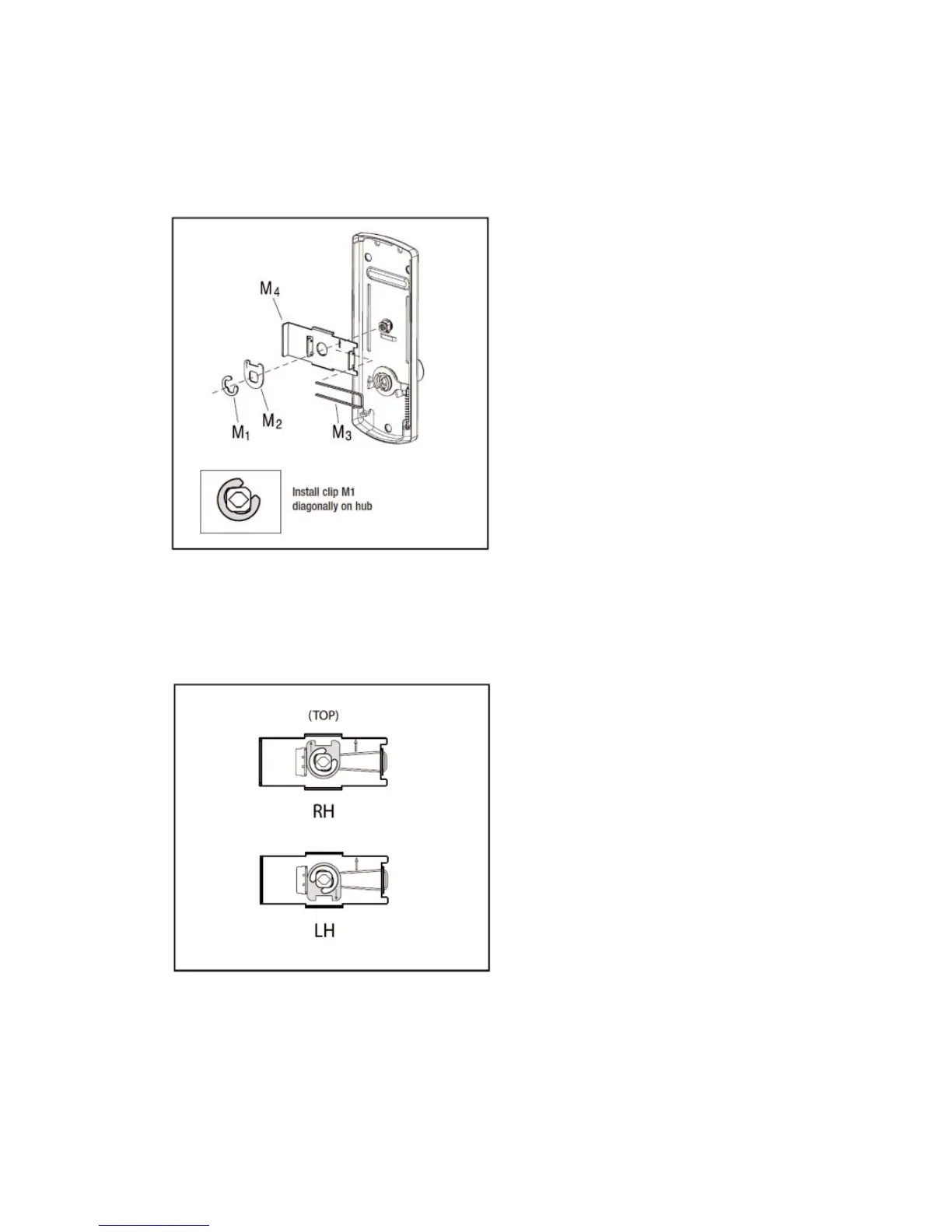

B-3. Additional steps for Autodeadbolt ASM inside trim assembly
If not already installed at the factory, put the thumbturn in the vertical position and
install all four (4) parts (M) as shown, on the inside trim assembly.
Turn the thumbturn all the way to the right for a RH installation (arrow on M2 points UP), or
all the way to the left for a LH installation (arrow on M2 points DOWN). The thumbturn
should stop in the vertical position, and the stopper cam (M2) will be in the position illustrat-
ed below.
