26

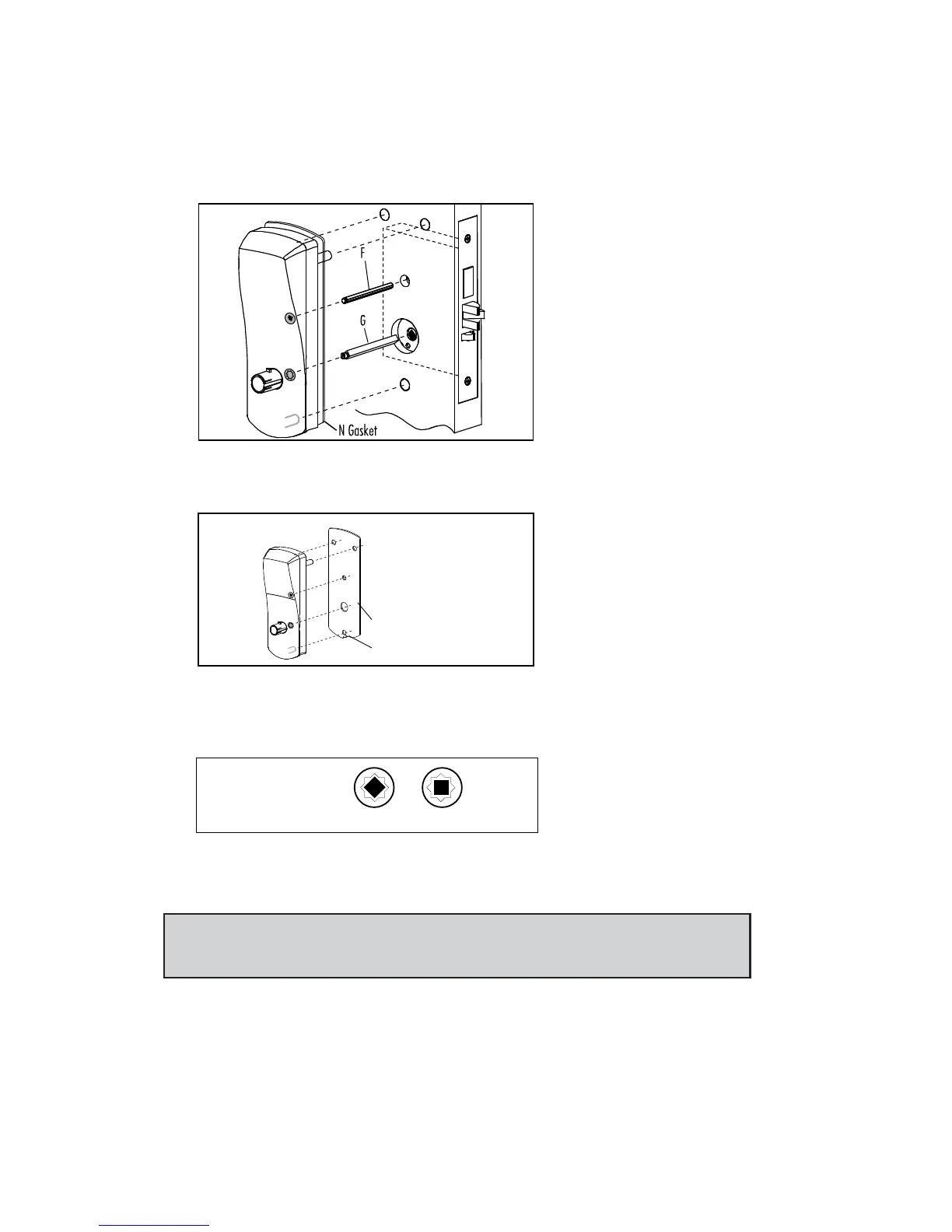

B-5. Install the Outside Housing and Inside Trim Assembly
for 2000 and 2400 Series without Key Override (for
E2000 and 2400 Series Key Override, see Section F)
1. Install the gasket (N) (if required) on the outside housing prior to
assembly, aligning the notch in the gasket with the battery compartment.
2. Insert the slotted end of the square spindle (G) into the outside lever hub
until it locks, at an angle of 45º. (The spindle can be removed by pulling
on it, if oriented incorrectly.)
3. Insert the thumbturn spindle (F) in the upper hub of the outside housing.
(It will clip in place.)
Note: For doors more than 2 1/2” thick, order the appropriate hardware bag
to receive the correct length of spindles and mounting screws.
4. Place the outside housing on the door so that the spindles engage the
hubs on the mortise.
Outdoor Gasket
Notch
Square Spindle Position
correct incorrect
To Next Page
