16

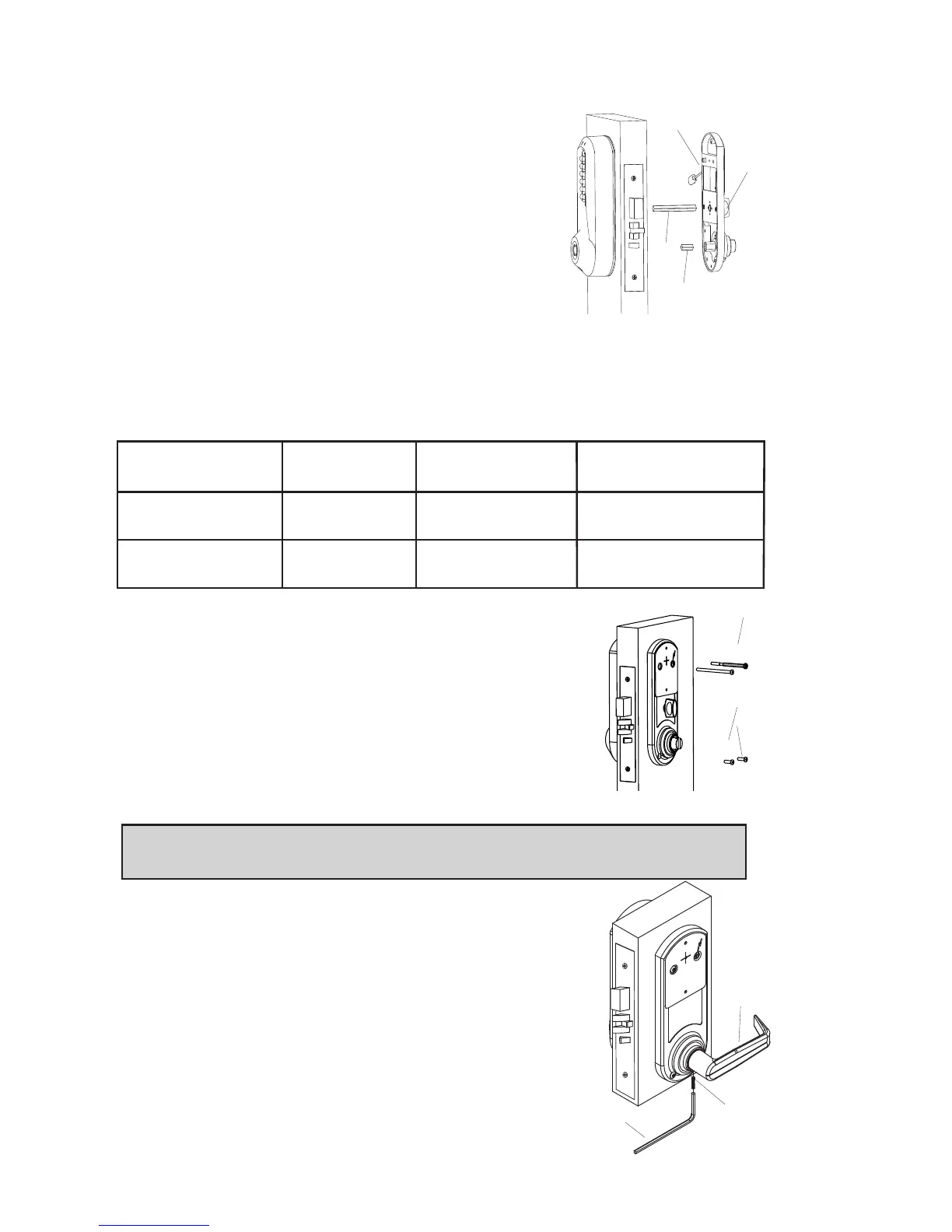

E-2 For door thickness of 1
3
⁄4" – 2", insert the short
square spindle (G) into the inside housing hub.
Door thickness of 2
1
⁄8" – 2
1
⁄4", insert the long
square spindle into the inside unit hub.
E-3 Put the thumbturn (T), if applicable in a vertical
position and place the inside trim assembly on
the door so that the upper spindle (F) engages
the thumbturn and mortise hubs, respectively.
Ensure the red collar is seated into its mounting
hole. Carefully push the inside housing flush
against the door.
E-4 Select the LectroBolt™ (screw with red sleeve) length that corresponds to
the correct door thickness as noted in this chart:
Door LectroBolt Top Mounting Lower
Thickness Size Screw Size Mounting Screws
1
3
⁄4" to 2" 2
3
⁄4"2
7
⁄8"
5
⁄8"
(44 mm to 51 mm) (70 mm) (73 mm) (16 mm)
2
1
⁄8" to 2
1
⁄4"3" 3
1
⁄4"
5
⁄8"
(54 mm to 57 mm) (76 mm) (83 mm) (16 mm)
E-5 Insert the LectroBolt™ through the red inside hous-
ing hole marked with the lightening bolt symbol. For
now, only partially tighten the LectroBolt™ to keep
the red collars in position.
E-6 Then, insert and tighten the other three mounting
screws. (Refer to the chart for
correct screw lengths.)
E-7 Finish tightening the LectroBolt™ to secure the lock
on the door.
Warning: If using a power drill, please be careful not to over-tighten as this
could cause damage to the mounting screws and threads.
F. INSTALLING THE INSIDE LEVER
Insert the inside lever (A) onto the inside unit assembly.
Secure the inside lever with the hex screw (B) (supplied)
using the allen wrench (C) (supplied).
F
G
T
Red Collar
Lectrobolt
5
⁄8"
(16mm)
a
c
b
