17

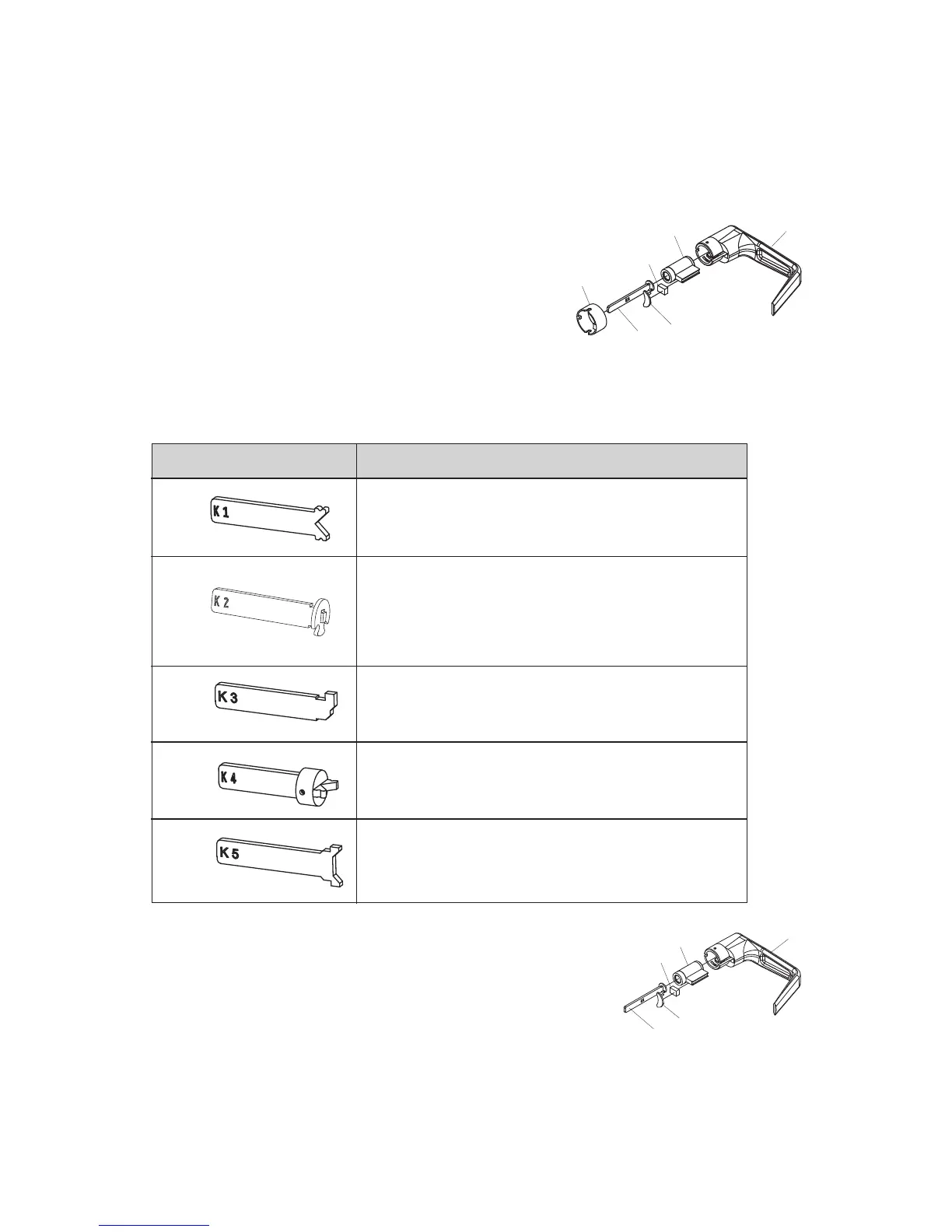

G. CHANGING KEY-IN-LEVER CYLINDER
On key-in-lever models of the E-Plex 5000 series, the outside lever
comes preassembled with Kaba’s key-in-lever cylinder (Kaba 1599). To use
a different key-in-lever cylinder follow remaining steps in this section.
G-1 To remove KIL (key-in-lever) cylinder (a) from the outside lever (b).
Remove the cylinder insert (e) and the
cylinder retainer
(c) using a small flat bladed screwdriver
or small needle nose pliers.
G-2 Determine the proper tailpiece (d) from
the chart below for your KIL cylinder.
You must use a Kaba tailpiece. The K 2 tailpiece is
preassembled with the Kaba 1599.
G-3 Assemble the required tailpiece (d) (from
above) with your KIL cylinder. All tailpieces
must be installed vertically (with key removed
from cylinder) for proper installation.
G-4 Insert the KIL cylinder (a) into the outside
lever and secure it with the cylinder retainer
(c) and the cylinder insert (e) until the KIL
cylinder is snug and unable to move freely.
Assa 65611, Australian: Kaba experT 107K5 &
Boyd KC286, Corbin Russwin 2000-03, Kaba
1599, Schlage 23-001, Schlage Primus 20-
760,
Kaba Peaks 1099
Medeco 20W200H1
Arrow C100, Sargent 10 LINE
Marks
Abloy 5277, Abloy 5477, Assa 65691,
Kaba 1539, Kaba Gemini 4730
KIL CYLINDERTAILPIECE
K1
K3
K2
K4
K5
c
f
a
b
d
e
c
a
b
e
d
