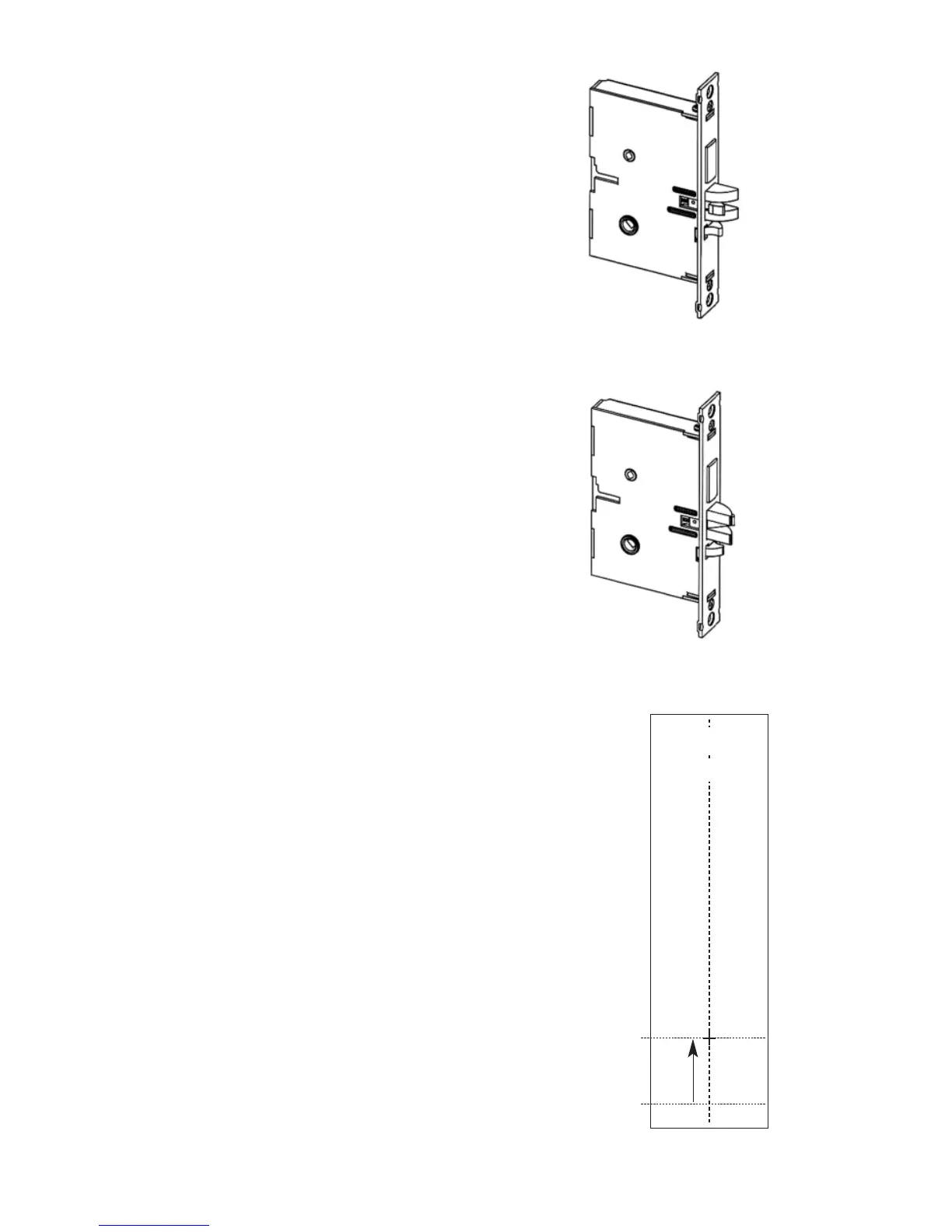

7. The mortise should look like the diagram
at the right. (Check the orientation of
the latch bolt and auxiliary latch.) Check
the bevel of the mortise and change it if
required as described in section B-8 on
page 14.
B. DOOR PREPARATION
If using the installation jig to prepare the door, refer
to the instructions provided with the jig, then proceed
with step 7.
B-1 Mark the handle height on the edge of the door,
as determined directly from the strike.
1
1
⁄4"
Door
(
C
L
)
Lever Centerline=
Bottom Edge of Strike lip
For LH (left hand) and RHR
(right hand reverse)
For RH (right hand) and
LHR (left hand reverse)

Kaba E-PLEX Specifications

General

Access Control	Keypad
Power Source	Battery
Material	Metal
Key Override	Yes
Weather Resistant	Yes
Audit Trail	Yes
Programming	Via keypad or software
Handing	Reversible
Backset	2-3/4"
Door Thickness	2-1/4"
Battery Life	Up to 2 years
Finish	Varies by model (e.g., Satin Chrome, Brass)
