19

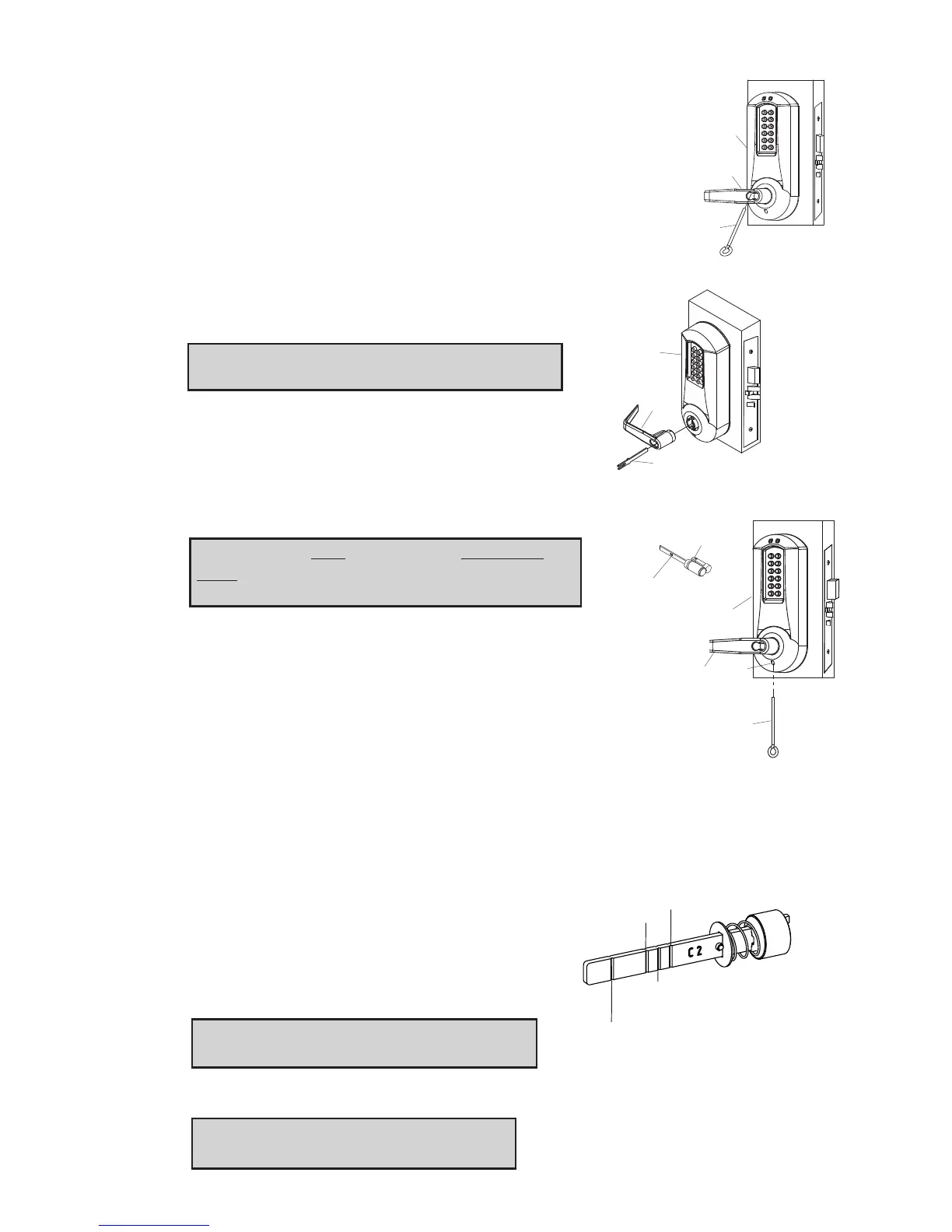

I-2 Insert the outside lever (a) until it is flush to the outside
unit assembly (b). To secure the outside lever, insert the
release tool (d) (or screwdriver) into the outside lever as
shown, and slide the lever catch down until it clicks.
Make certain lever is attached before installing the core.
I-3 Insert the supplied tailpiece (e) vertically into the outside
lever as shown. Make certain that you rotate the tailpiece
so that it will align with the interchangeable core. For
screw cap type cylinders (Schlage) (g), the tailpiece must
be assembled to the cylinder first as shown
(vertical position). Insert the interchangeable
core into the outside lever.
Note: To remove the outside lever from the
outside unit assembly, follow steps below.
I-4 Remove the interchangeable core (g).
Then remove the tailpiece (e).
I-5 For ASSA/Medeco/Yale
interchangeable/removable cylinders, the
tailpiece must be prepped for the desired
length before installation.
When using a Yale
cylinder on a cylindrical
latch application, measure the door thickness
of the intended application.
I-6 Notice the score marks on the flat portion of the
ASSA/Medeco/Yale tailpiece. Using the diagram below,
locate the score mark on your tailpiece that matches
your cylinder prep for the intended application, and
break the tailpiece off accordingly.
I-7 Using two pairs of pliers, break the tailpiece to the
desired length of the intended application by holding one
pair of pliers on the good side of the score mark and a
second pair on the other side of the score mark. Slowly
move the 2nd pair of pliers up and down until the
unneeded portion of the tailpiece breaks free.
I-8 Insert the Medeco tailpiece (e) vertically
into the outside lever as shown. Make
certain that you rotate the tailpiece
slightly so that it will align with the
interchangeable/removable cylinder.
Insert the interchangeable/removable
cylinder into the outside lever..
Note: To remove the outside lever from the
outside unit assembly, follow steps below.
I-9 Remove the interchangeable/removable
cylinder. Then remove the tailpiece (e).
Note: You may want to use needle nose
pliers for some tailpieces.
e
a
b
d
b
a
vertical
g
b
d
f
a
YALE 6 & 7 PIN,
CYLINDRICAL – THIN DOOR
(1
3
⁄8" (35 mm) to 1
1
⁄2" (38 mm))
(DO NOT SHORTEN TAILPIECE -
For 1
5
⁄8" (41 mm) to 2
1
⁄4" (57 mm))
ASSA/MEDECO 5, 6 & 7 PIN,
CYLINDRICAL – DO NOT SHORTEN TAILPIECE
ASSA & MEDECO 6 PIN,
EXIT & MORTISE
MEDECO 5 PIN,
EXIT & MORTISE
YALE 6 & 7 PIN,
EXIT & MORTISE
