J-7 Insert the ASSA/Medeco/Yale tailpiece (e) vertically
into the outside lever/knob as shown. Make certain
that you rotate the tailpiece slightly so that it will
align with the interchangeable/removable core.
Insert the interchangeable/removable core into the
outside lever/knob.
Note: To remove the outside lever/knob from
the outside unit assembly, follow steps below.
J-8 Remove the interchangeable/removable core.
Then remove the tailpiece (e).
Note: You may want to use needle nose pliers
for some tailpieces.

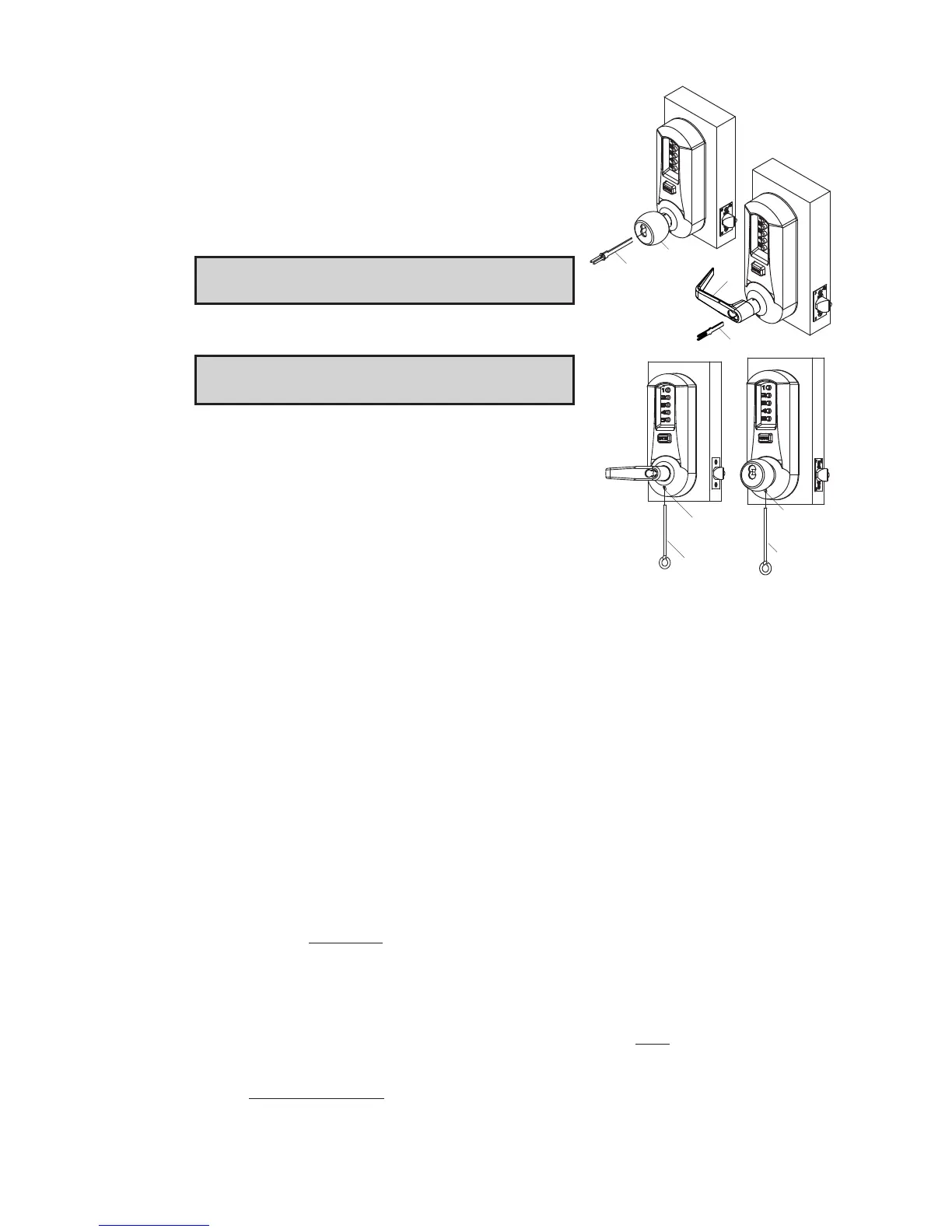

J-9 Insert the lever release tool (d) into the
small hole (f) under lever/knob as shown.
Gently push lever catch up until it clicks.
Remove tool, then remove outside lever/
knob (b).
K. TESTING THE OPERATION OF
THE LOCK
K-1 Rotate inside lever/knob and hold. Ensure that the latch is fully retracted
and flush with the latch faceplate. Release the inside lever/knob; the
latch should be fully extended.
K-2 For Models 504x & 505x only. When installing non-passage models,
skip to step K-4. Ensure that the key cylinder or knob of the passage
actuator is set so that the arrow or dot is at the top. Rotate outside
lever/knob and hold. Ensure that the latch is fully retracted and flush
with the latch faceplate. Release outside lever/knob: the latch should be
fully extended.
K-3 Rotate passage actuator counterclockwise so that the arrow or dot is to
the left. Then rotate outside lever/knob. The latch should not move.
K-4 Enter the factory-set combination: Depress buttons 2 and 4 at the same time
(& release), then depress button 3 (& release), then depress the “ENTER”
button (& release
). You should feel a slight click as each button is depressed.
K-5 Rotate outside lever/knob and hold. Ensure that the latch is fully retracted
and flush with the latch faceplate. Release the outside lever/knob; the
latch should be fully extended. Press the “ENTER” button and release,
then rotate outside lever/knob. The latch should NOT
retract.
K-6 Insert one of the (supplied) keys into the outside lever/knob. Rotate key
counterclockwise
to stop position and hold. Ensure that the latch is fully
retracted and flush with the latch faceplate. Rotate key clockwise to
horizontal position and remove key. The latch should be fully extended.
f
d
f
d
b
e
b
e
