7

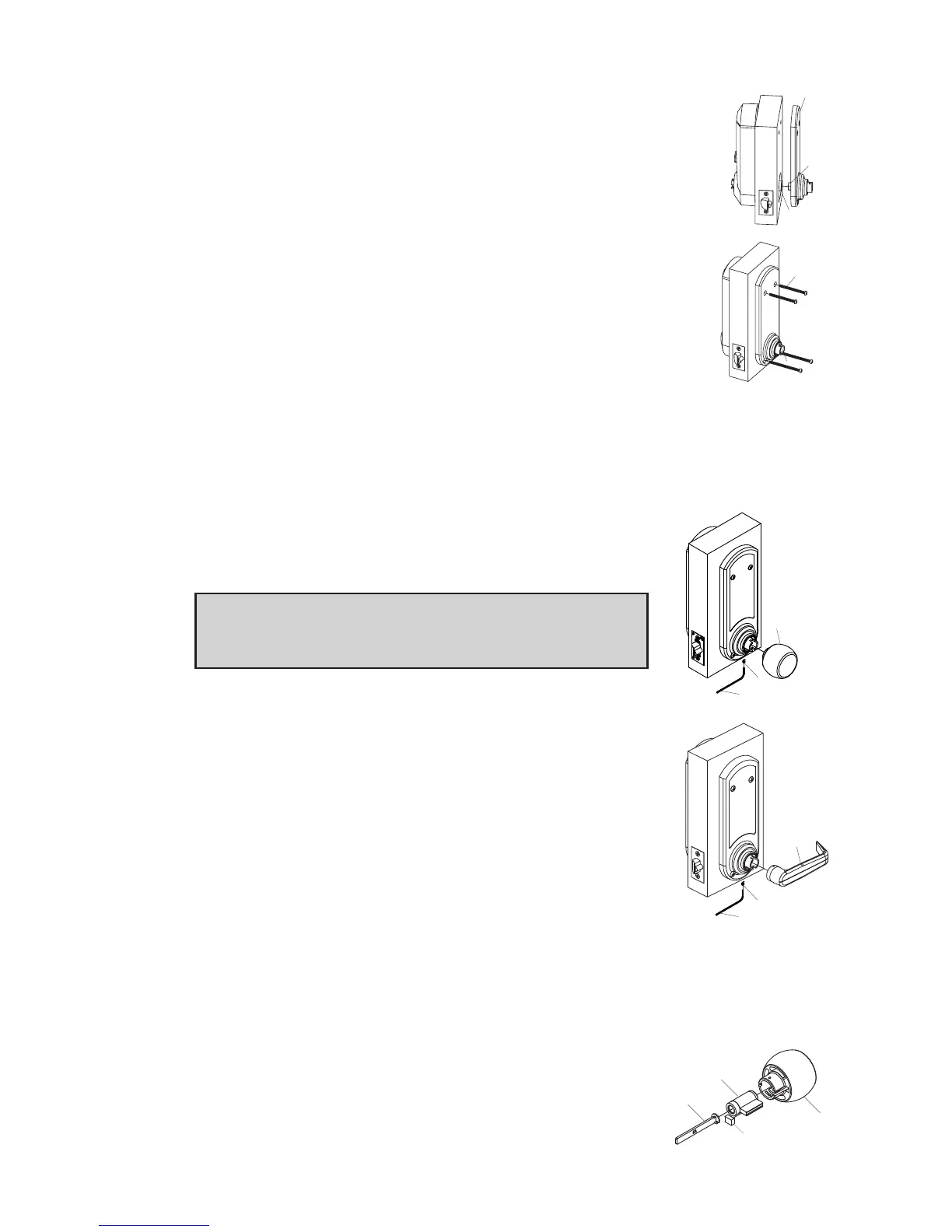

F-2 Slide the drive hub (a) into the drive sleeve (b) until the
inside unit assembly (c) rests flush against the door.
F-3 For standard door thickness 1
5
⁄8" (41 mm) to 2" (51
mm), secure the outside and inside unit assemblies to
the door by using four 2
7
⁄8" (73 mm) screws (d)
(supplied) in all four holes as indicated.
For thinner door 1
3
⁄8" (35 mm) to 1
1
⁄2" (38 mm),
secure the outside and inside unit assemblies to the door
by using four 2
1
⁄2" (64 mm) screws (e) (supplied) in all
four holes as indicated.
For thicker door 2
1
⁄8" (54 mm) to 2
1
⁄4" (57 mm), secure the outside
and inside unit assemblies to the door by using four 3
1
⁄4" (82mm)
screws (f) (supplied) in all four holes as indicated.
G. INSTALLING THE INSIDE
LEVER/KNOB
Note: Installing the lever/knob assemblies to the unit
before mounting the unit assemblies, may ease initial
installation.
G-1 Insert the inside lever/knob (a) onto the unit assembly.
Secure the inside lever/knob with the
3
⁄8" (5mm) hex
screw (b) supplied using the allen wrench (c) supplied.
H. CHANGING KEY-IN-LEVER/KNOB
CYLINDER
The Simplex 5000 outside lever/knob comes preassembled with Kaba's
key-in-lever/knob cylinder (Kaba 1599). To use a different key-in-lever/
knob cylinder, follow the remaining steps in this section.
H-1 Remove KIL/KIK cylinder (a) from the outside
lever/knob (b) by removing the lever insert (e) (no
insert on knob). Remove the rubber cylinder
retainer (c) using a small screwdriver or needle
nose pliers.
c
a
b
d
, e, f
a
b
a
d
c
a
b
c
b
c
