9.12 Enabling functions
NOTE
You will find a description of the individual functions starting in Chapter 9.13.1 from page 43. Further
parameters are also being added continuously in the successive firmware versions. For this reason, see the
PDF version of these application instructions for important additions.
The <Communication unit> menu is opened.
1. Call up <Enable/disable functions> via <Settings for> under <Select inverter>.
2. After the setting has been made in the respective parameter, the function can be enabled (see references).
- Active power regulation (see Chapter 9.12.6)
- 70 % rule (for details, see Chapter 9.17 on page 54)
- Active power rampup (see Chapter 9.12.6 on page 45)
- P(U) (see Chapter 9.12.7 on page 46)
- P(f) (see Chapter 9.13.7 on page 46)
- Reactive power control (see Chapter 9.13.9 on page 48)
- LVRT (Low Voltage Ride Through) – This is a requirement that generation units remain on the grid and are not
switched off in the event of a short-term voltage drop.
- Overvoltage trip-off (10 min average) – protective function
- Islanding detection – protective function
- Monitoring of N-PE voltage – ground fault protective function
- MPPT parallel operation – (see 7.5.4 on page 19)
- Active power increase with underfrequency P(f)
3. Confirm selection with <OK>. The device then performs a restart with the desired range of functions.
» The desired functions are permanently set.
functions

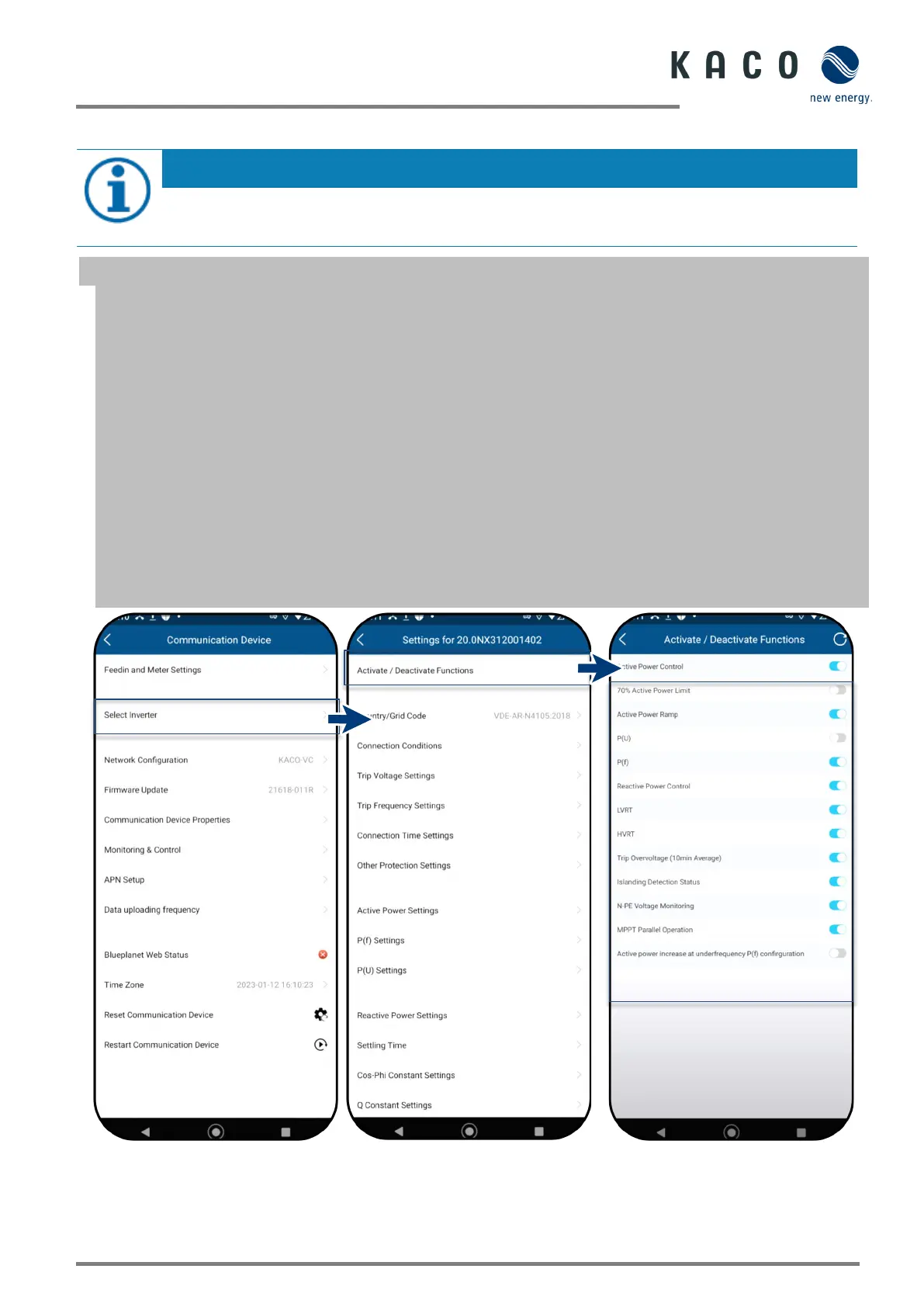

Fig. 95. Toggle required functions
