Page 41 KACO blueplanet 3.0 NX3 M2 KACO blueplanet 5.0 NX3 M2 KACO blueplanet 8.0 NX3 M2 KACO blueplanet 10.0 NX3 M2
KACO blueplanet 15.0 NX3 M2 KACO blueplanet 20.0 NX3 M2
9.10 Shadow Management
 The desired device is selected under
<Available Inverters> and the <Inverter
Values & Settings> menu is opened.
Note: Enables optimised MPP tracking
for PV module shadow management.
After the function is activated, each PV
channel is scanned at a 10-minute
interval. Captures and tracks the
maximum power point voltage when the
output power is not limited and the
input power of this channel is not
overdriven.
1. Select < Shadow Management>.
2. In case of partial shading of a PV
module, activate <shadow
management> to generate additional
MPP tracking points.
» Shadow management configured.

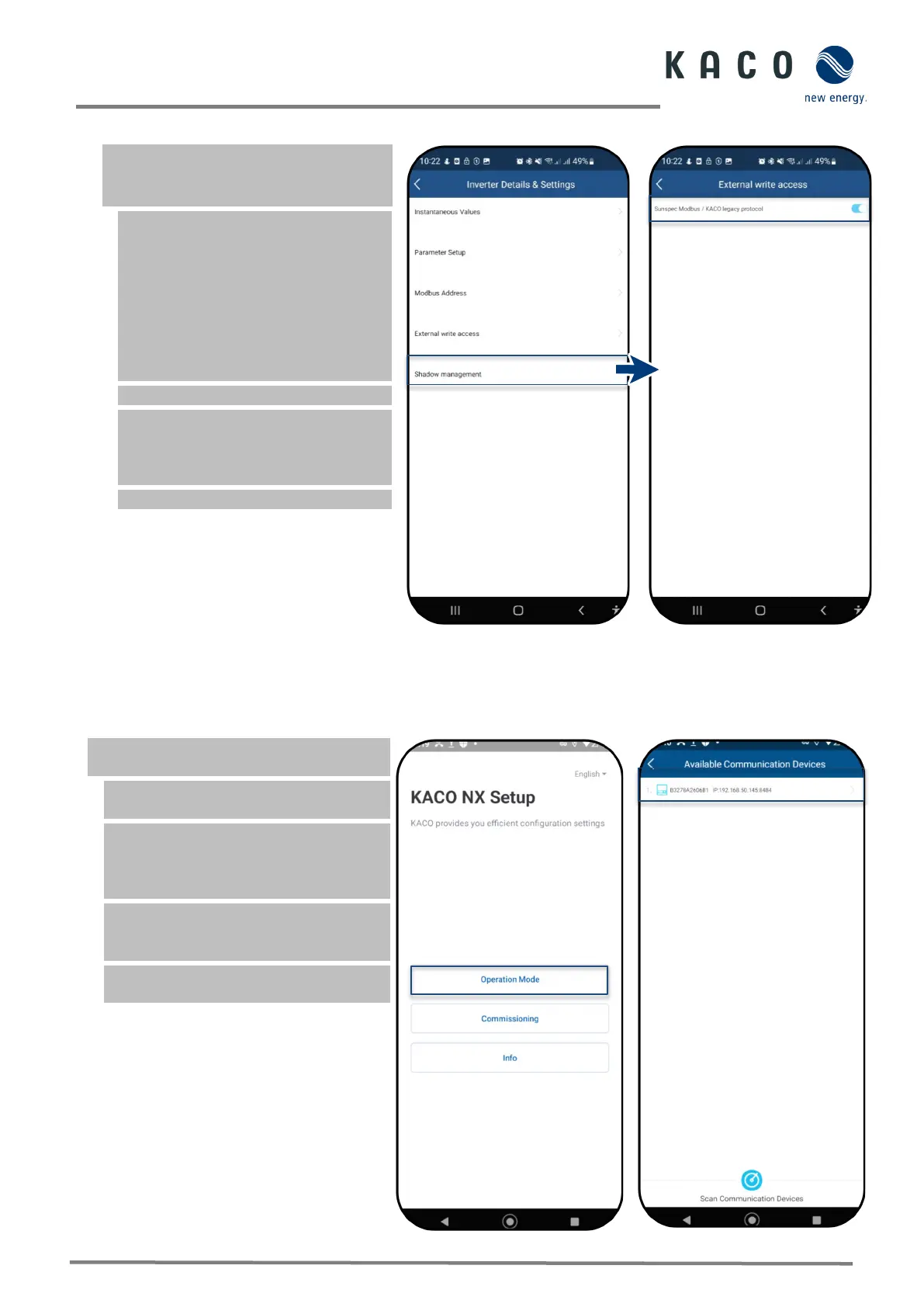

Fig. 89. Select shadow
management
Fig. 90. Activate shadow
management
9.11 Operation mode
9.11.1 Operation mode for normal operation
 You have made all the necessary basic
settings.
1. Switch to <Operation mode> to view the
menu of an <Available inverter>.
Note: As soon as the device appears, it can
be selected immediately without having to
wait for the search to finish (even if the
screen is greyed out).
2 Now view all entries under <Settings
for>. The menu of the <Communication
unit> can be reached with .
» The communication unit is connected to
your mobile end device.
Fig. 91. Select operation mode
Fig. 92. Select inverter

Kaco blueplanet 10.0 NX3 M2 Specifications

General

Model	blueplanet 10.0 NX3 M2
Manufacturer	Kaco
Category	Inverter
Max. AC Output Power	10000 W
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. apparent AC power	10000 VA
AC frequency	50 Hz / 60 Hz
Max. AC current	16 A
Max. DC current	26 A
Protection class	IP65
Topology	Transformerless
Operating Temperature Range	-25°C to +60°C
Cooling	Convection
Max. DC power	15000 W
AC Output Voltage	230 V / 400 V
AC voltage range	230 V / 400 V
