9.12.14 Inverter parameter report
Note: Displays all set parameters in an
overview list.
 The <Settings for> menu is opened.
1. Select <Inverter parameter report>.
2. Check all set parameters.
3. Export the set parameters using the
<Export PDF> button. This serves as proof
of all settings made with regard to the
EVU.
» Parameter overview displayed.

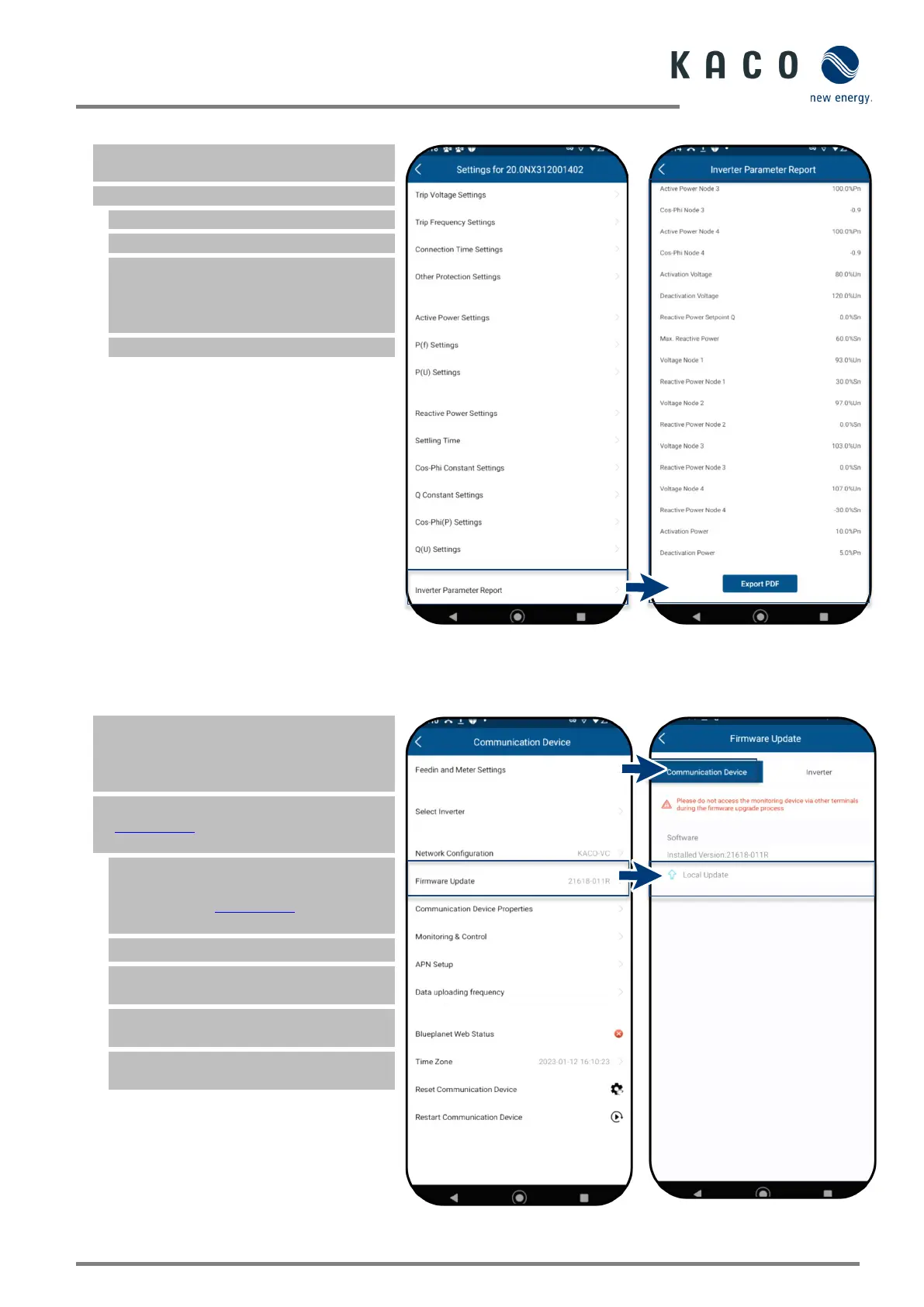

Fig. 131. View device parameters
Fig. 132. View all parameters
9.13 Performing a firmware update
9.13.1 Updating the communication unit
Note: The enclosed communication unit is
required in order to perform the update. The
firmware update can only be carried out with
adequate DC voltage (100 W).
 The current firmware package is available
at mykaco.com and does not correspond to
the firmware version on the device(s).
1 Download the firmware
“KACO_NX3_Vxx.zip“ with the required
*.bin files from mykaco.com under
downloads and unpack.
2. Select <Firmware Update>
3. Select the tab <Communication unit>
and press <Local upgrade>
4. In the firmware path, select the new file
Update.bin.
» After successful update, continue with
the inverter firmware update.
Fig. 133. Select firmware update
Fig. 134. Update the firmware for
the communication unit
