The feed-in meter must therefore be connected to the data logger so that the logger can generate the regulation
commands. If an energy meter is not connected to the data logger, the logger continuously sends a regulation command to
the inverters with a 0% feed-in maximum. This means that feed-in may not take place.

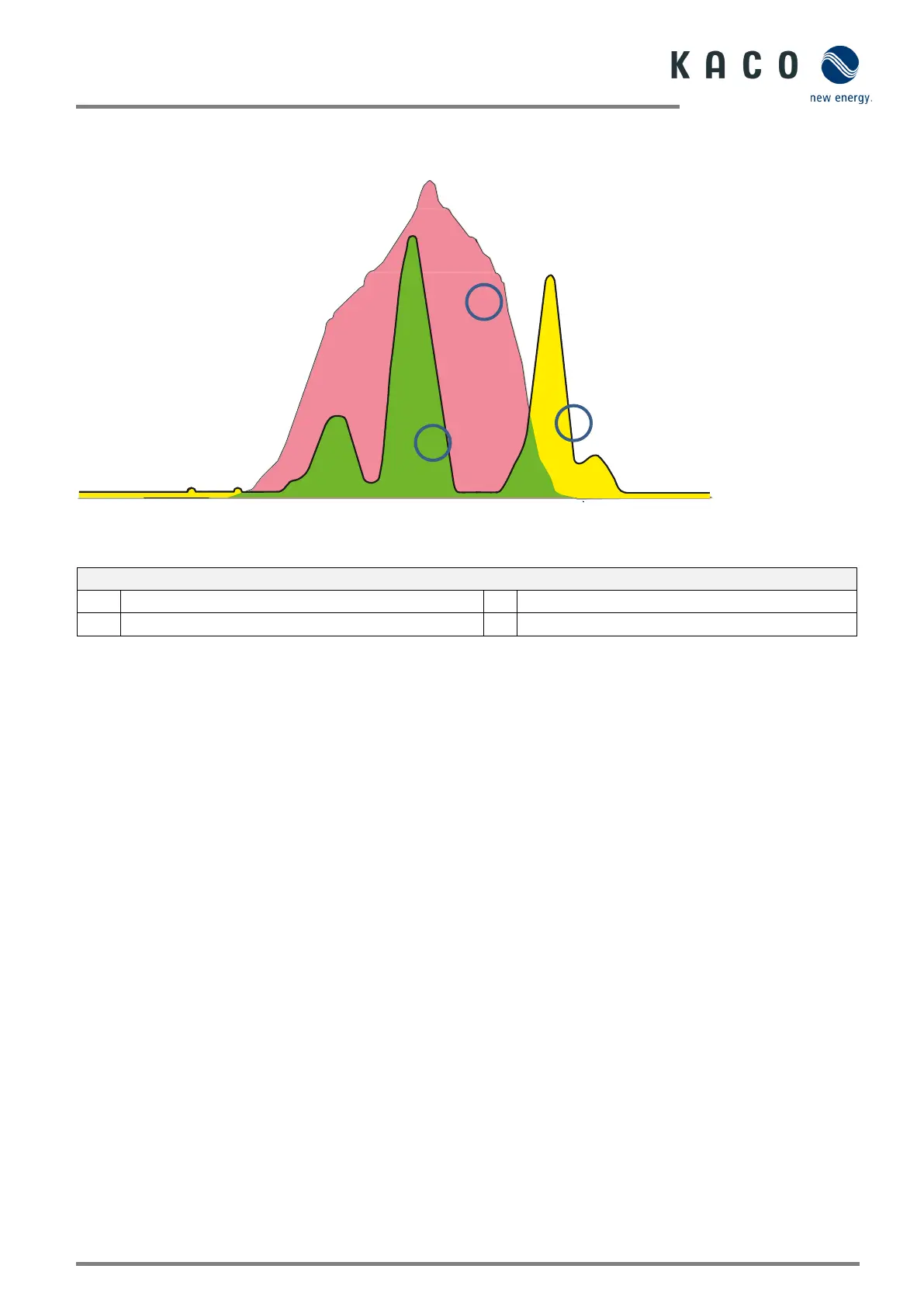

Fig. 141. Diagram of 0% regulation
Legend
1
PV power available (red area)
3
Bought-in power (yellow area)
2
Energy requirement of a detached home (green area)
By connecting up additional consumers, heating, water or energy storage systems, the self consumption and therefore the
consumption of the PV current can be increased considerably.
This function can however only be used by data logger because this has an S0 output and could therefore connect up
additional consumers via a relay circuit.
00:00
02:00
04:00
06:00 08:00
10:00
12:00
14:00 16:00 18:00 20:00 22:00 00:00
U
hrzeit [hh:mm]
1
3
2
10
9
8
7
6
5
4
3
2
1
0
Power [kW]

Kaco blueplanet 10.0 NX3 M2 Specifications

General

Model	blueplanet 10.0 NX3 M2
Manufacturer	Kaco
Category	Inverter
Max. AC Output Power	10000 W
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. apparent AC power	10000 VA
AC frequency	50 Hz / 60 Hz
Max. AC current	16 A
Max. DC current	26 A
Protection class	IP65
Topology	Transformerless
Operating Temperature Range	-25°C to +60°C
Cooling	Convection
Max. DC power	15000 W
AC Output Voltage	230 V / 400 V
AC voltage range	230 V / 400 V
