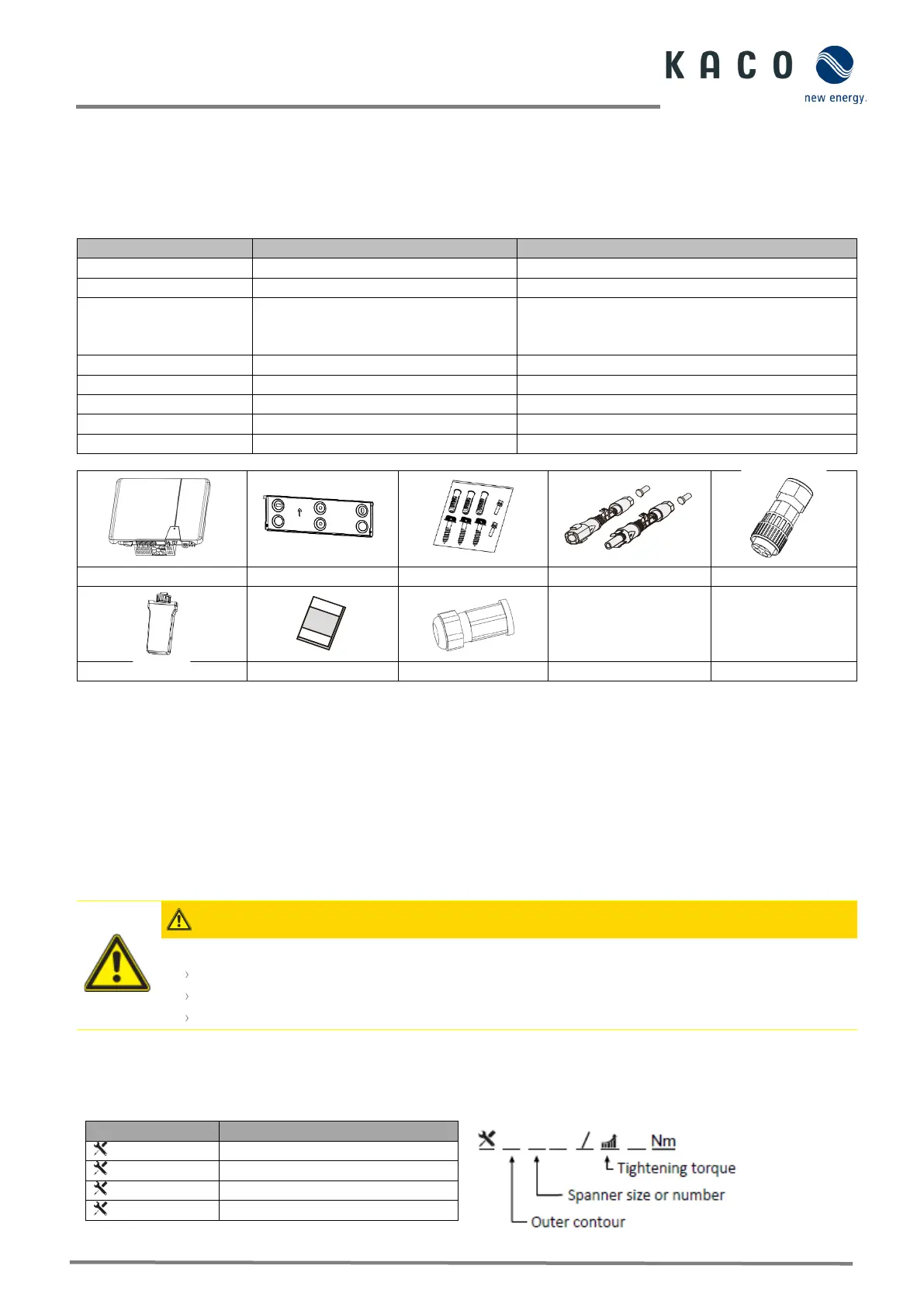

Page 9 KACO blueplanet 3.0 NX3 M2 KACO blueplanet 5.0 NX3 M2 KACO blueplanet 8.0 NX3 M2 KACO blueplanet 10.0 NX3 M2
KACO blueplanet 15.0 NX3 M2 KACO blueplanet 20.0 NX3 M2
5 Transportation and Delivery
Every product leaves our factory in perfect electrical and mechanical condition. Special packaging ensures that the devices
are transported safely. The shipping company is responsible for any transport damage that occurs.
5.1 Scope of delivery
Article
Description
Quantity
A
Inverter
1 piece
B
Wall mounting bracket
1 piece
C
Mounting accessory kit: Wall fixings,
hex bolts (3×)
M5×14 mm screw (2×)
1 set
D
DC connector (Phoenix Sunclix)
2 pairs (3-10 kW); 3 pairs (15 kW); 4 pairs (20 kW)
E
AC connector
1 piece
F
Communication unit
1 piece
G
Documentation
1 set
H
RS485 connection
2 pcs
A
B
C
D
E
F
G
H
Check the equipment included
- Inspect the device thoroughly.
- Immediately notify the shipping company in case of the following:
o Damage to the packaging that indicates that the device may have been damaged.
o Obvious damage to the device.
- Send a damage report to the shipping company immediately.
- The damage report must be received by the shipping company in writing within six days following receipt
of the device. We will be glad to help you if necessary.
5.2 Transporting the device
CAUTION
Hazard due to impact; risk of breakage to the device!
Pack the device securely for transport.
Transport the device using the intended carrying handles of the packaging box.
Do not expose the device to any shocks.
5.3 Installation tool
The codes given in the table below are used in all usage instructions for assembly/installation/maintenance and
disassembly for the tools and tightening torques being used.
Code (s)
Shape of the connector
W
External hexagon
T
Torx
S
Slot
P
Phillips
Fig. 3. Form pattern
