6.2 Unpacking the device
CAUTION
Risk of injury due to excessive physical strain
Lifting the device, for transport, relocation and assembly can result in injuries (e.g. back injuries).
› Always lift the device using the openings provided
Key
1 Packaging box
3 Protective packaging
2 Device
4 Lifting position
 The device has been transported to the installation site.
1. Loosen packaging tape from cardboard box.
2. Open the packaging box at the top.
3. Remove installation material and documentation.
4. Pull up top protective packaging to remove.
5. Remove device from the packaging. Grab onto the cover and the edge of the housing when doing so.
6. Place the protective packaging back into the packaging box.
7. Lift the device at the intended positions.
» Proceed with the installation of the mount

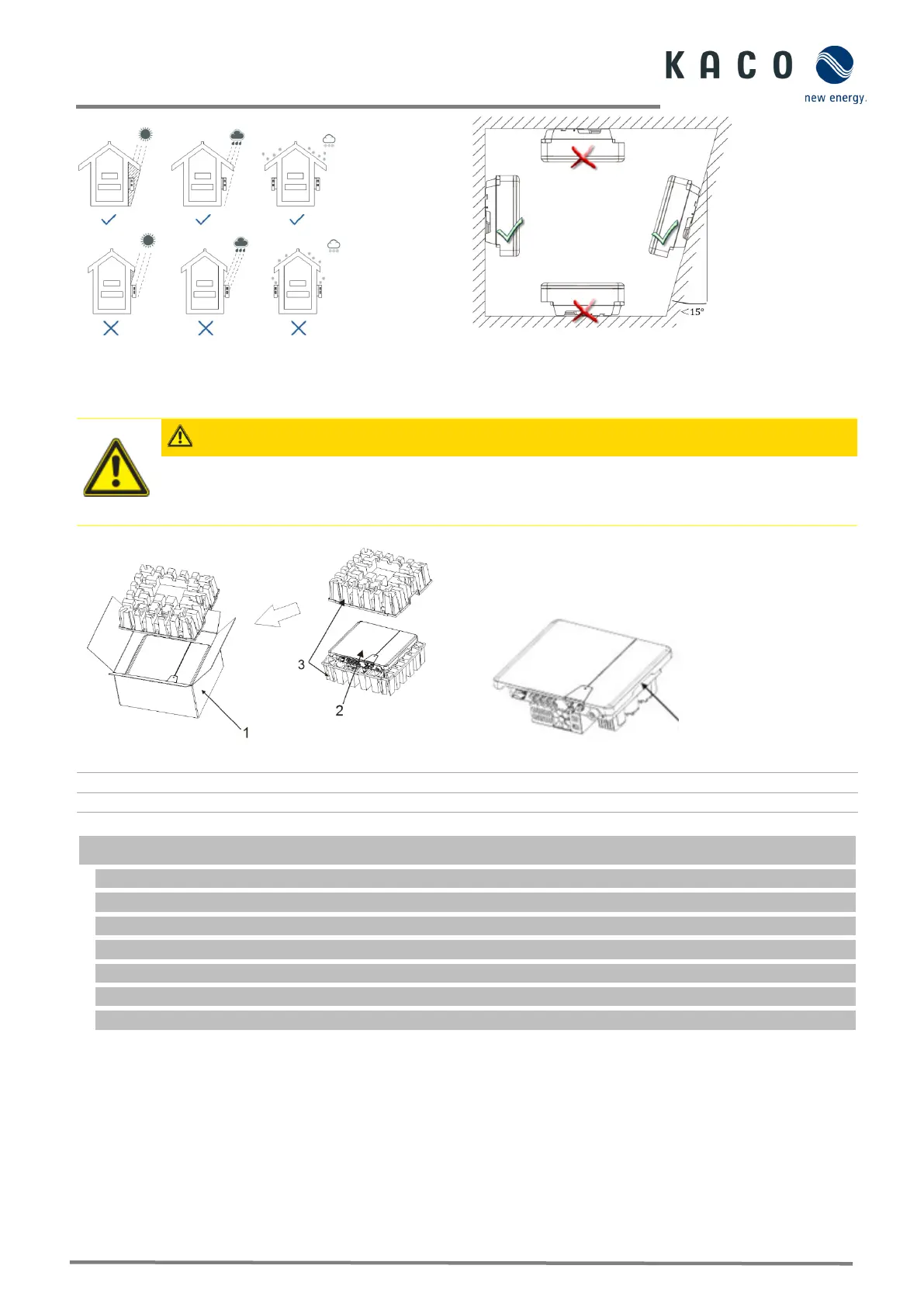

Fig. 4. Device for outdoor installation
Fig. 5. Permissible installation location
Fig. 6. Unpack the device
Fig. 7. Lift the unit
