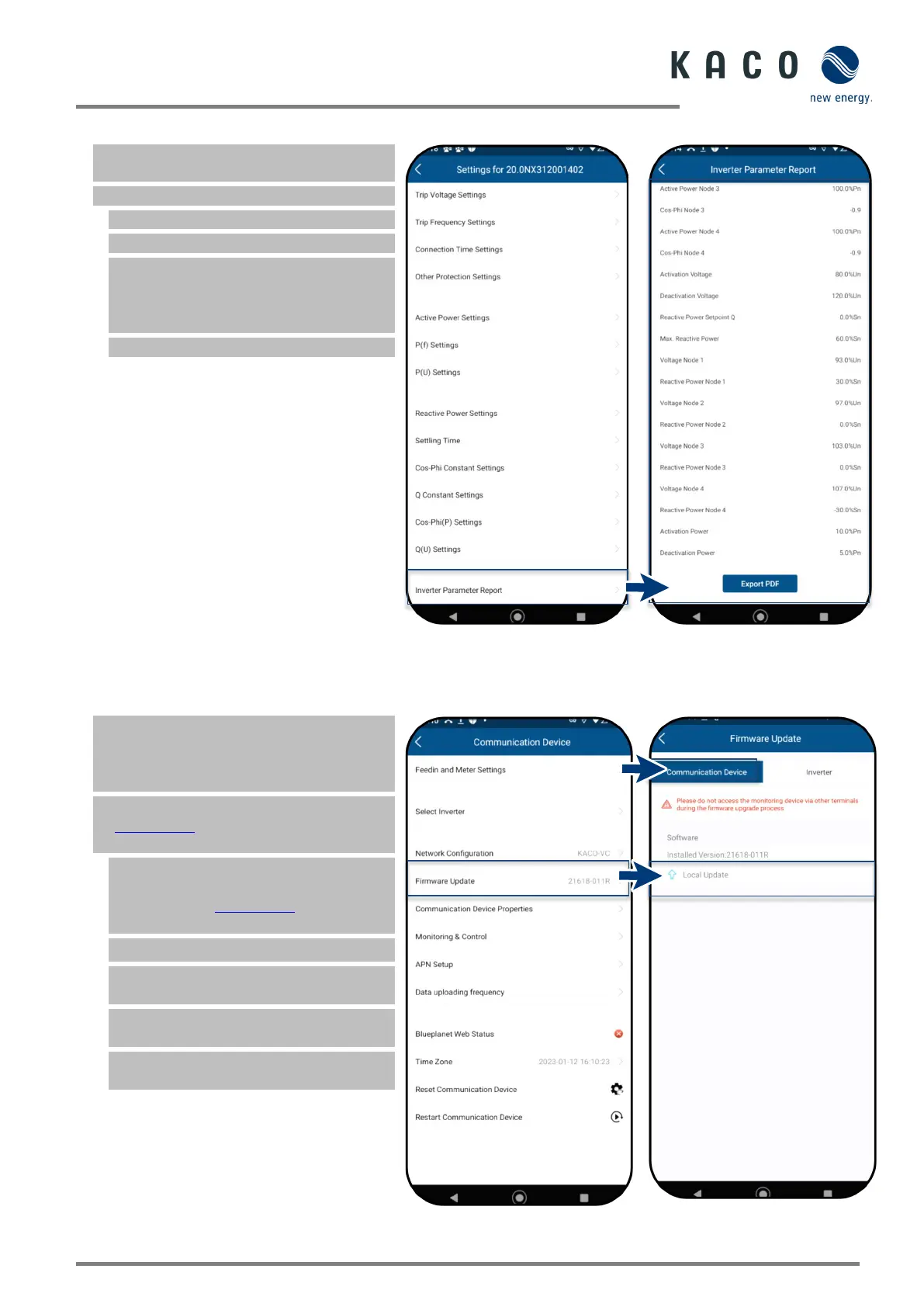

KACO blueplanet 3.0 NX3 M2 KACO blueplanet 5.0 NX3 M2 KACO blueplanet 8.0 NX3 M2 KACO blueplanet 10.0 NX3 M2
KACO blueplanet 15.0 NX3 M2 KACO blueplanet 20.0 NX3 M2 Page 52
9.12.14 Inverter parameter report
Note: Displays all set parameters in an
overview list.
The <Settings for> menu is opened.
1. Select <Inverter parameter report>.
2. Check all set parameters.
3. Export the set parameters using the
<Export PDF> button. This serves as proof
of all settings made with regard to the
EVU.
» Parameter overview displayed.
Fig. 131. View device parameters
Fig. 132. View all parameters
9.13 Performing a firmware update
9.13.1 Updating the communication unit
Note: The enclosed communication unit is
required in order to perform the update. The
firmware update can only be carried out with
adequate DC voltage (100 W).
The current firmware package is available
at mykaco.com and does not correspond to
the firmware version on the device(s).
1 Download the firmware
“KACO_NX3_Vxx.zip“ with the required
*.bin files from mykaco.com under
downloads and unpack.
2. Select <Firmware Update>
3. Select the tab <Communication unit>
and press <Local upgrade>
4. In the firmware path, select the new file
Update.bin.
» After successful update, continue with
the inverter firmware update.
Fig. 133. Select firmware update
Fig. 134. Update the firmware for
the communication unit
